Rear Door Lock Actuator Inspection

REAR DOOR LOCK ACTUATOR INSPECTION

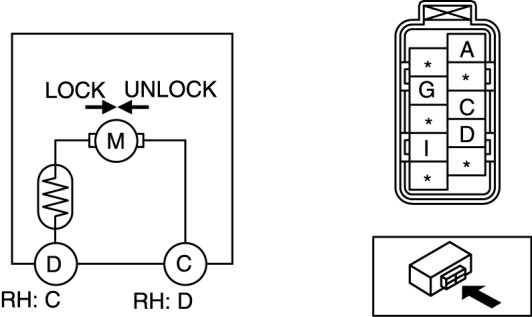

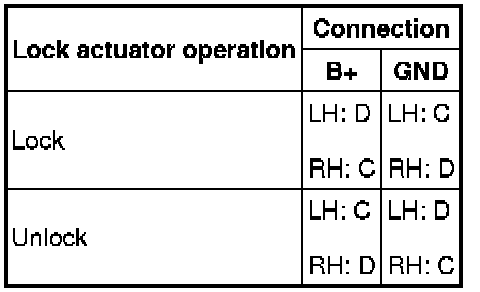

1. Apply battery positive voltage and connect ground to the corresponding rear door lock actuator terminals, and inspect the rear door lock actuator operation.






- If not as specified, replace the rear door latch and lock actuator.
