Keyless Entry System On-Board Diagnosis [Keyless Entry System]

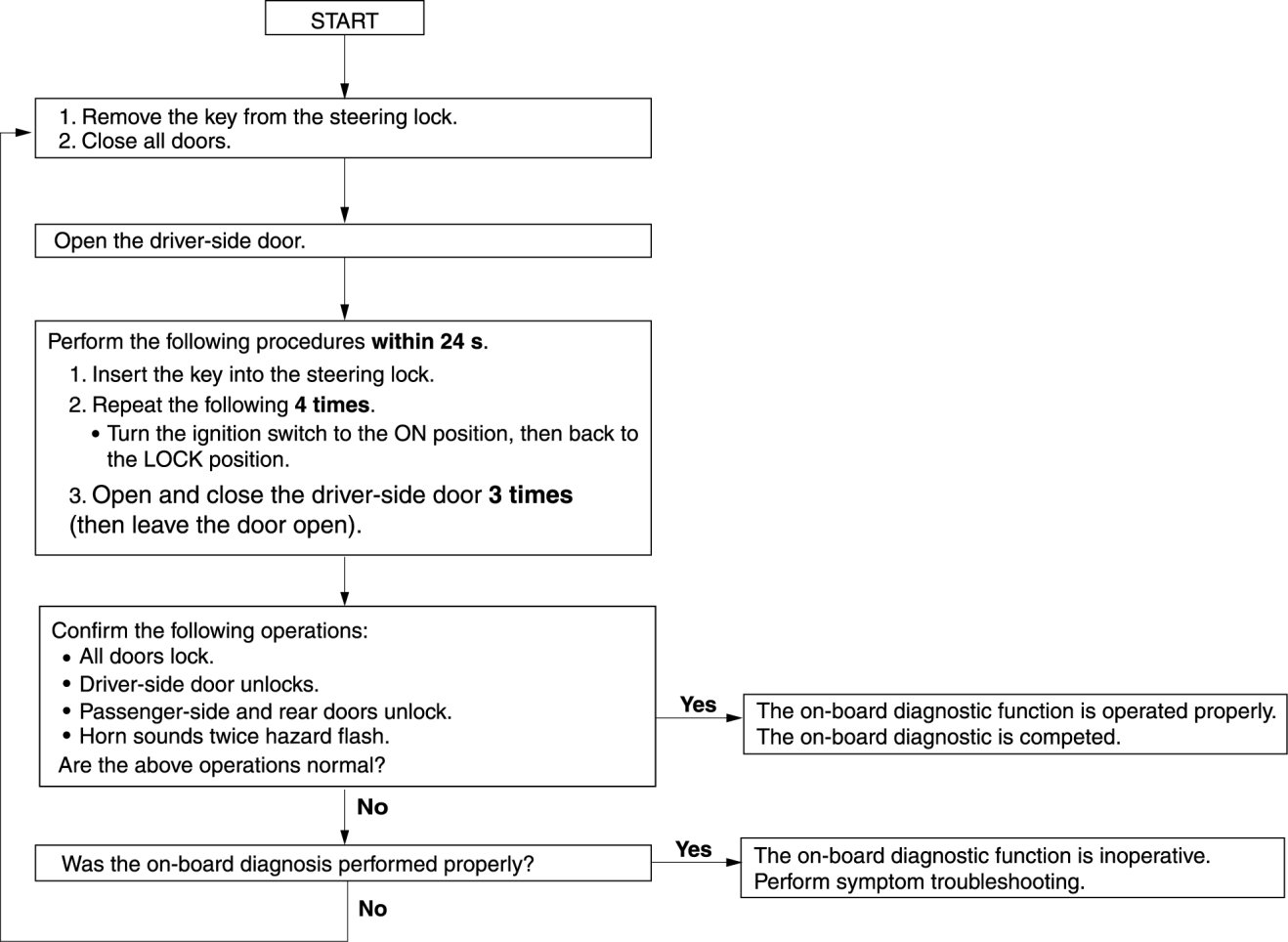

KEYLESS ENTRY SYSTEM ON-BOARD DIAGNOSIS [KEYLESS ENTRY SYSTEM]

NOTE:
- "All doors" includes the liftgate. (5 door)
