Trunk / Liftgate Handle: Service and Repair

LIFTGATE OUTER HANDLE REMOVAL/INSTALLATION

1. Remove the liftgate upper trim.

2. Remove the liftgate side trim.

3. Remove the liftgate lower trim.

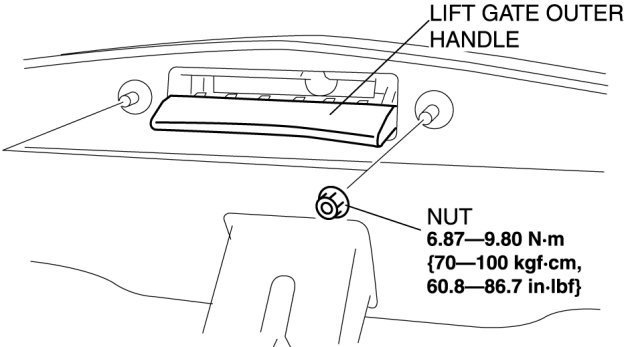

4. Remove the nuts.

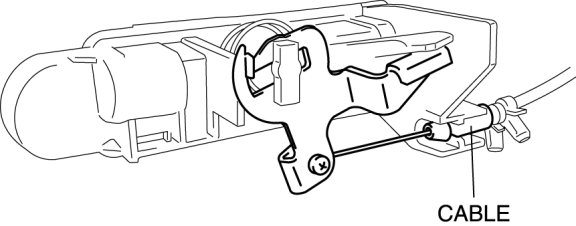

5. Detach the cable.






6. Install in the reverse order of removal.
