Trunk Lid Release Actuator Inspection

TRUNK LID RELEASE ACTUATOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the trunk lid trim.

3. Remove the trunk lid latch and release actuator. Trunk Lid Latch And Release Actuator Removal/Installation

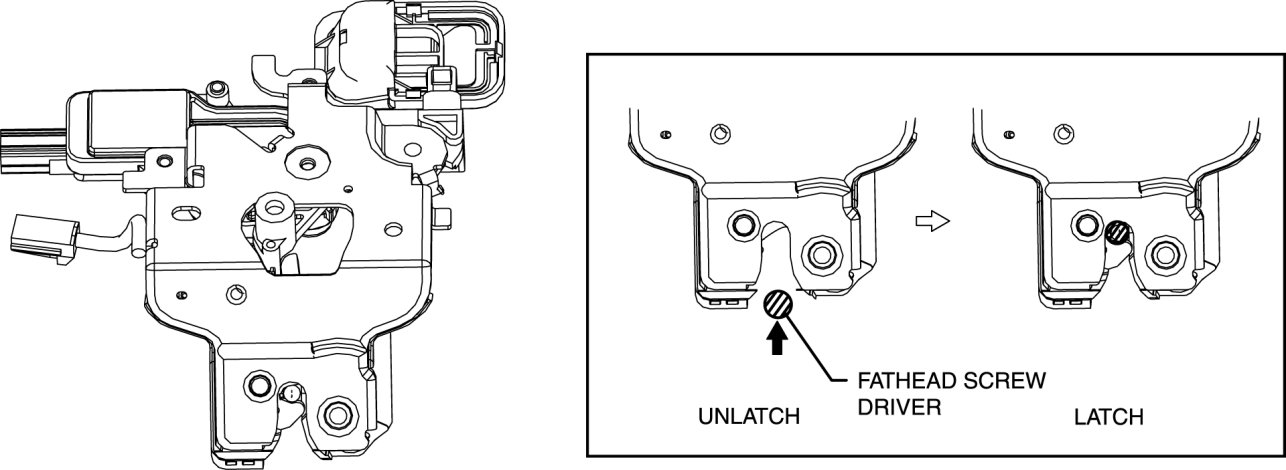

4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

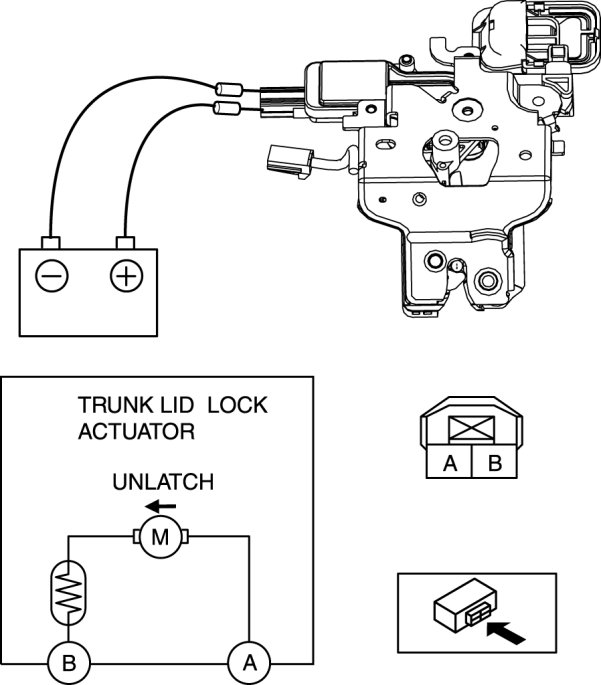

5. Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

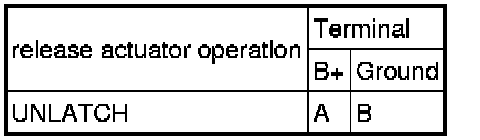

- If not as indicated in the table, replace the trunk lid latch and release actuator.
