Quick Diagnostic Chart (Entire Audio System)




TROUBLESHOOTING INDEX [ENTIRE AUDIO SYSTEM]

NOTE:
- Note down all radio programs set by the customer prior to the repairs. Reset all radio programs and adjust the time after the repairs.

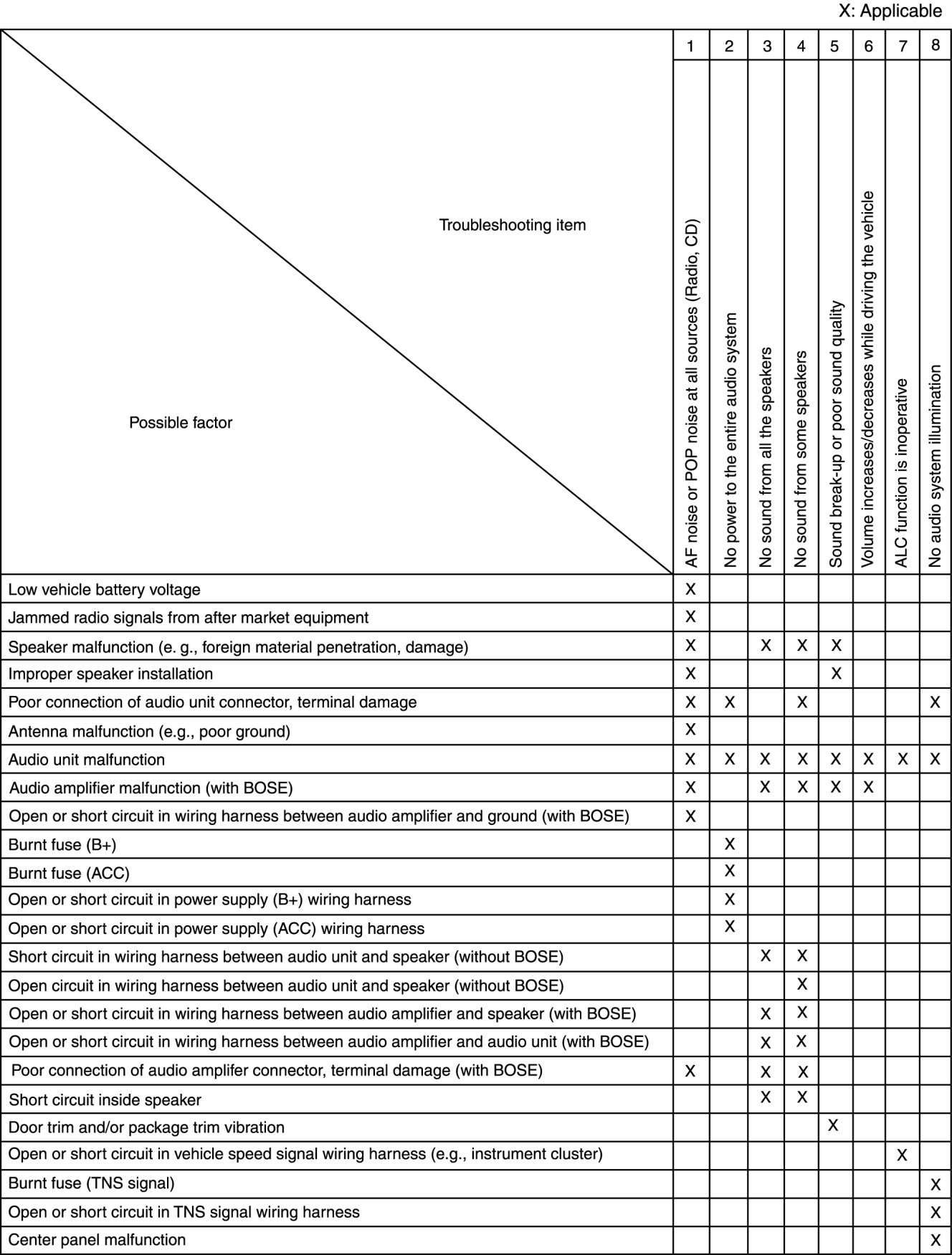

Quick Diagnostic Chart (Entire Audio System)

Quick Diagnostic Chart:
