Confirmation Step 2: Audio Control Switch Confirmation [Entire Audio System]




CONFIRMATION STEP 2: AUDIO CONTROL SWITCH CONFIRMATION [ENTIRE AUDIO SYSTEM]

- Verify the customer complaint and identify the malfunction as occuring from either the audio control switch or the audio unit.

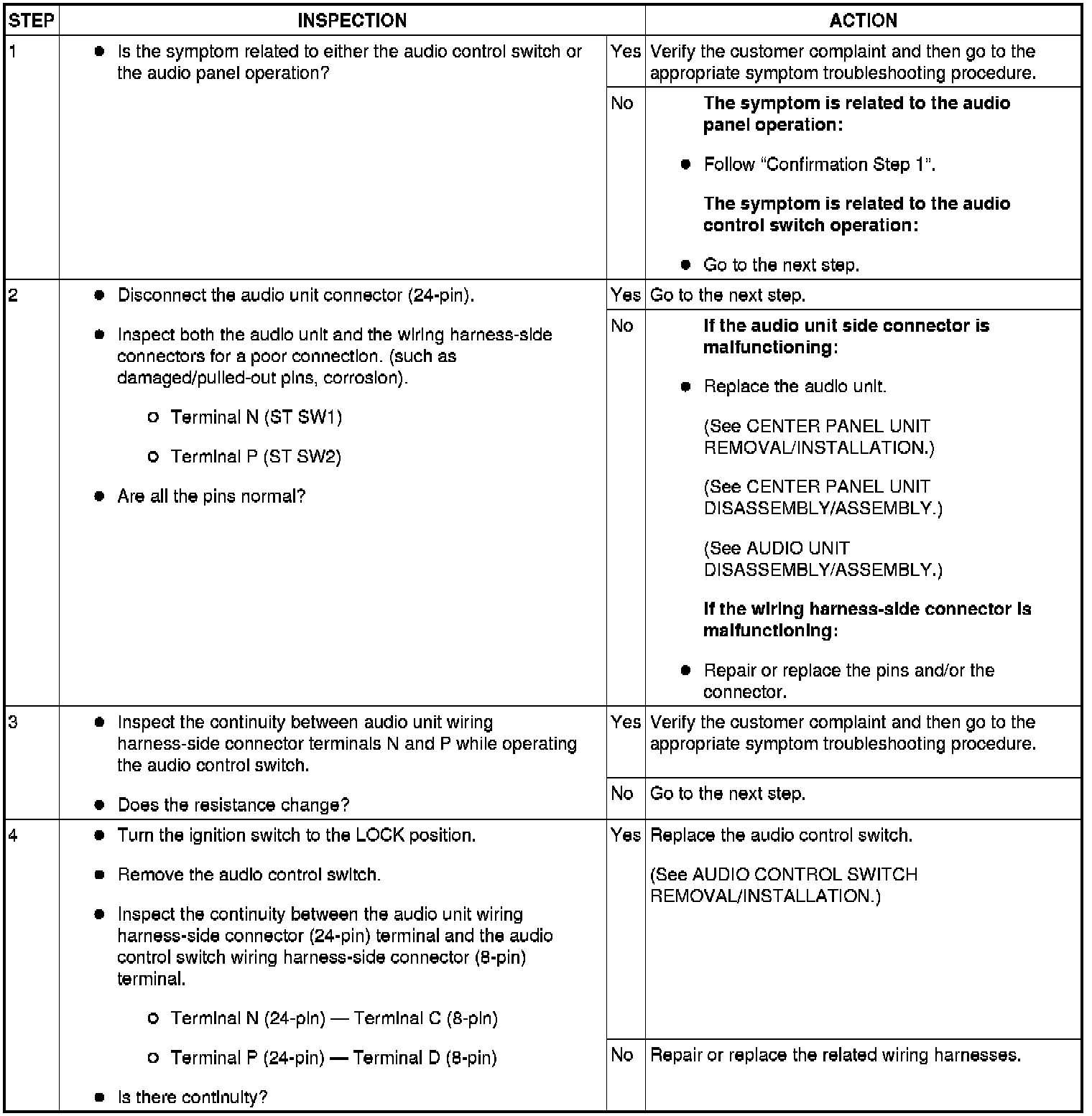

Step 1-Step 4:
