Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No.8 Display Screen Does Not Change To The Night Mode. (Front And Rear Combination Lights Operate Normally.)

No.8 Display Screen Does Not Change To The Night Mode. (Front And Rear Combination Lights Operate Normally.)




NO.8 DISPLAY SCREEN DOES NOT CHANGE TO THE NIGHT MODE. (FRONT AND REAR COMBINATION LIGHTS OPERATE NORMALLY.) [CAR-NAVIGATION SYSTEM]

Possible Cause:

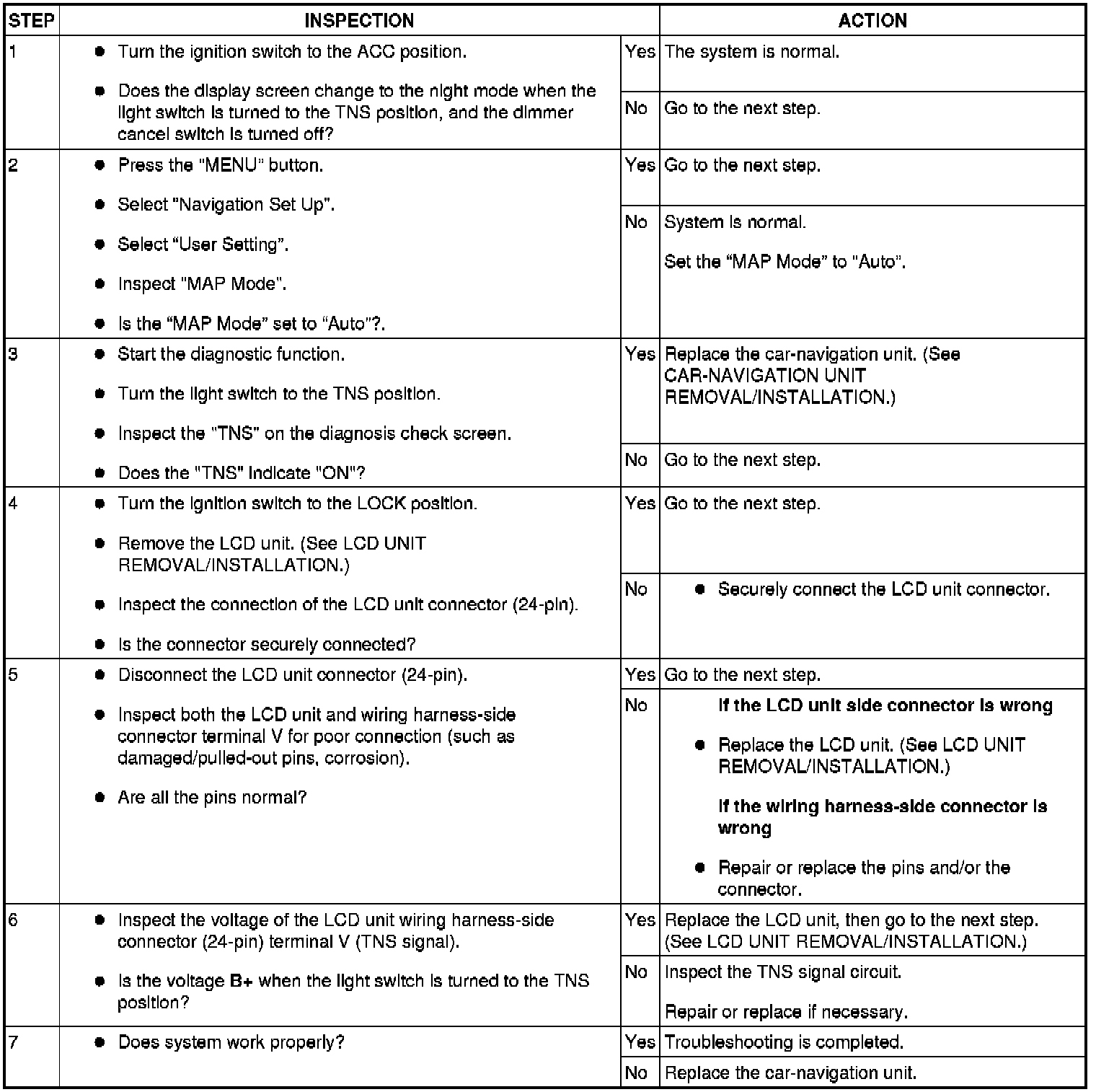

Diagnostic procedure

Step 1-Step 7:
