No.6 Car-Navigation Control Switch Is Inoperative. [Car-Navigation System]




NO.6 CAR-NAVIGATION CONTROL SWITCH IS INOPERATIVE. [CAR-NAVIGATION SYSTEM]

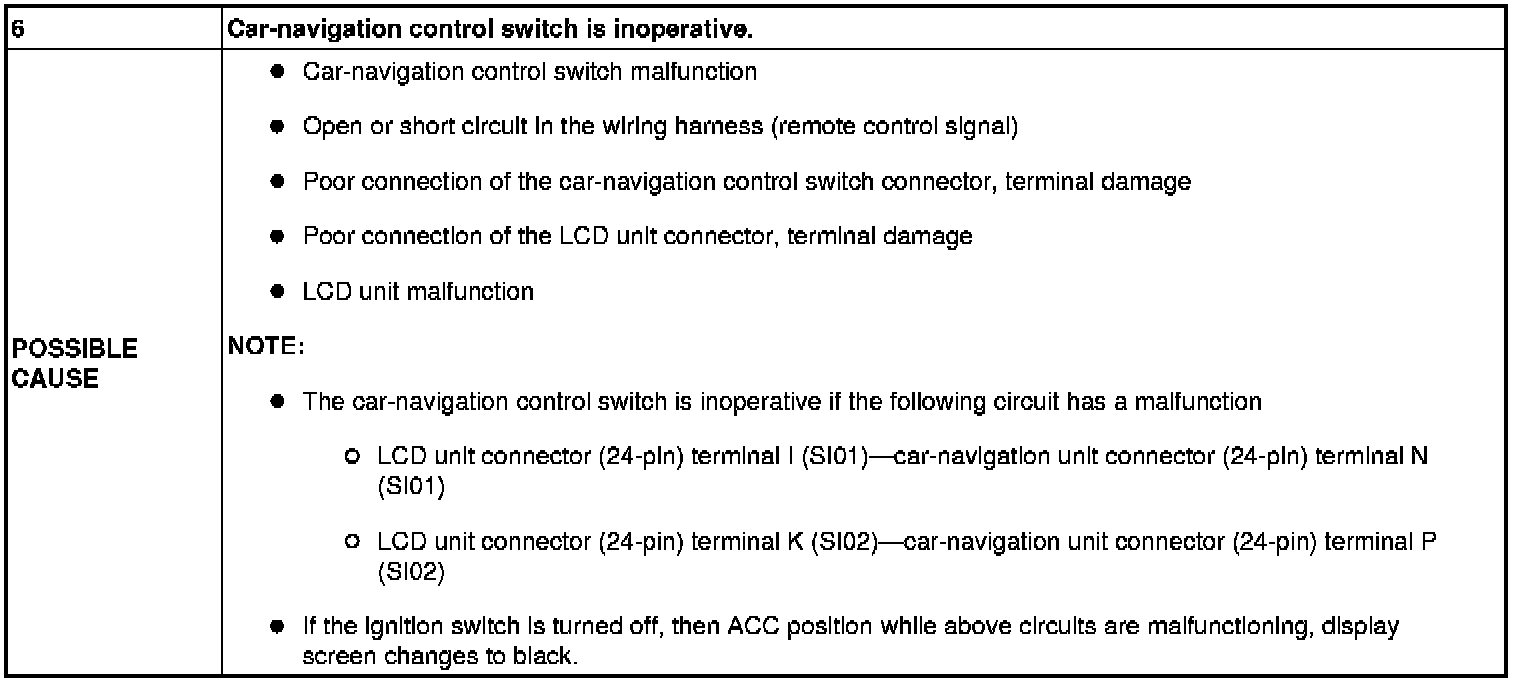

Possible Cause:





Diagnostic procedure

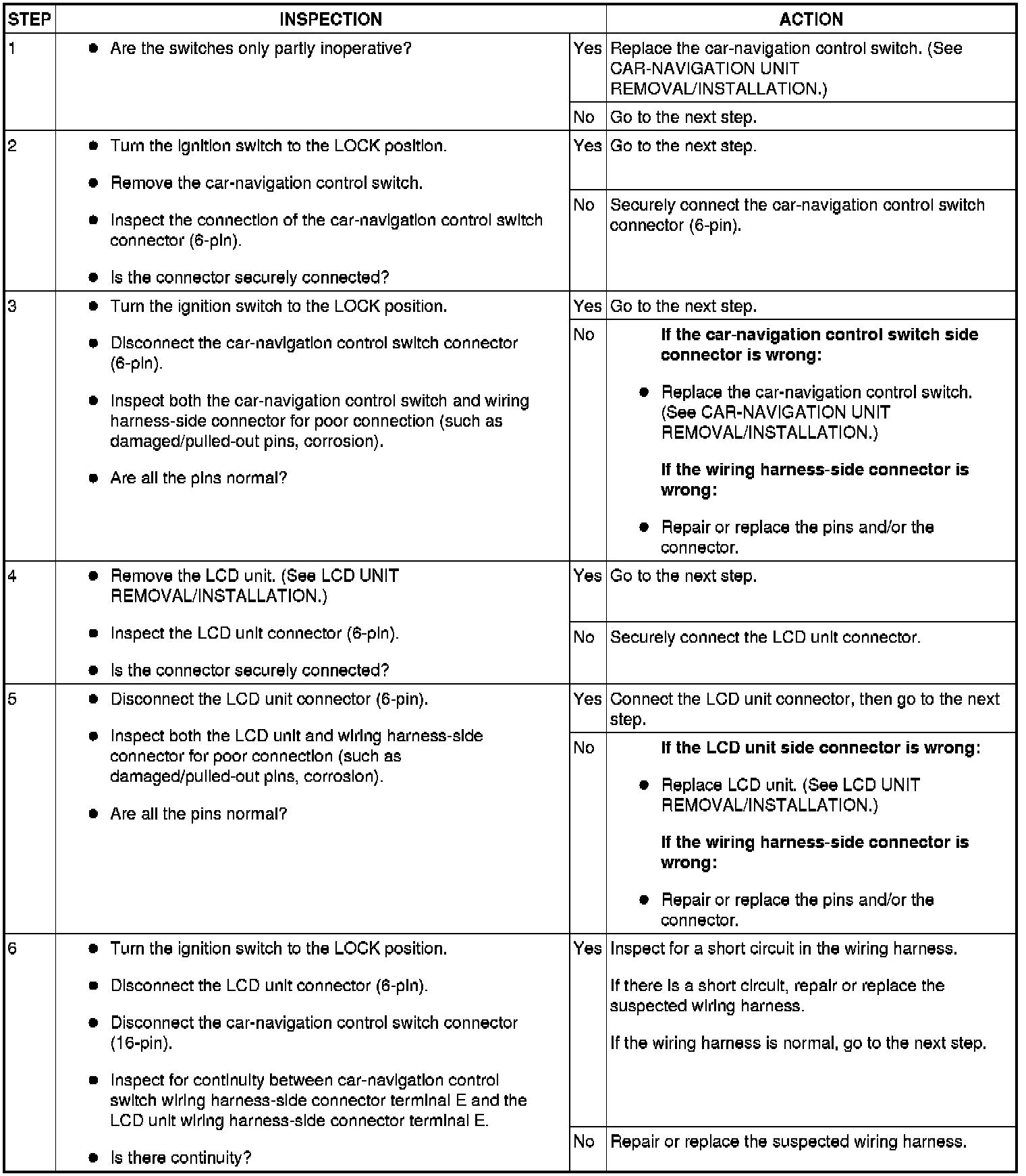

Step 1-Step 6:

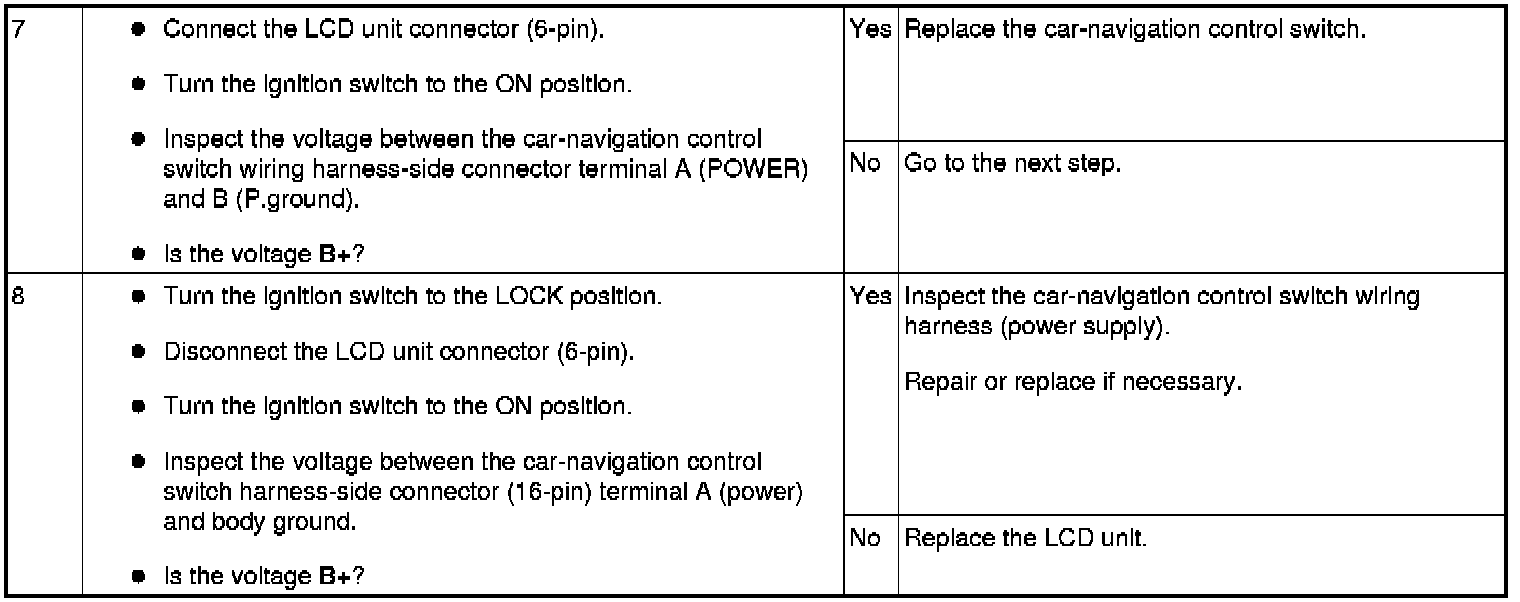

Step 7-Step 8:
