Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No.4 System Does Not Load The Map Disc. [Car-Navigation System]

No.4 System Does Not Load The Map Disc. [Car-Navigation System]




NO.4 SYSTEM DOES NOT LOAD THE MAP DISC. [CAR-NAVIGATION SYSTEM]

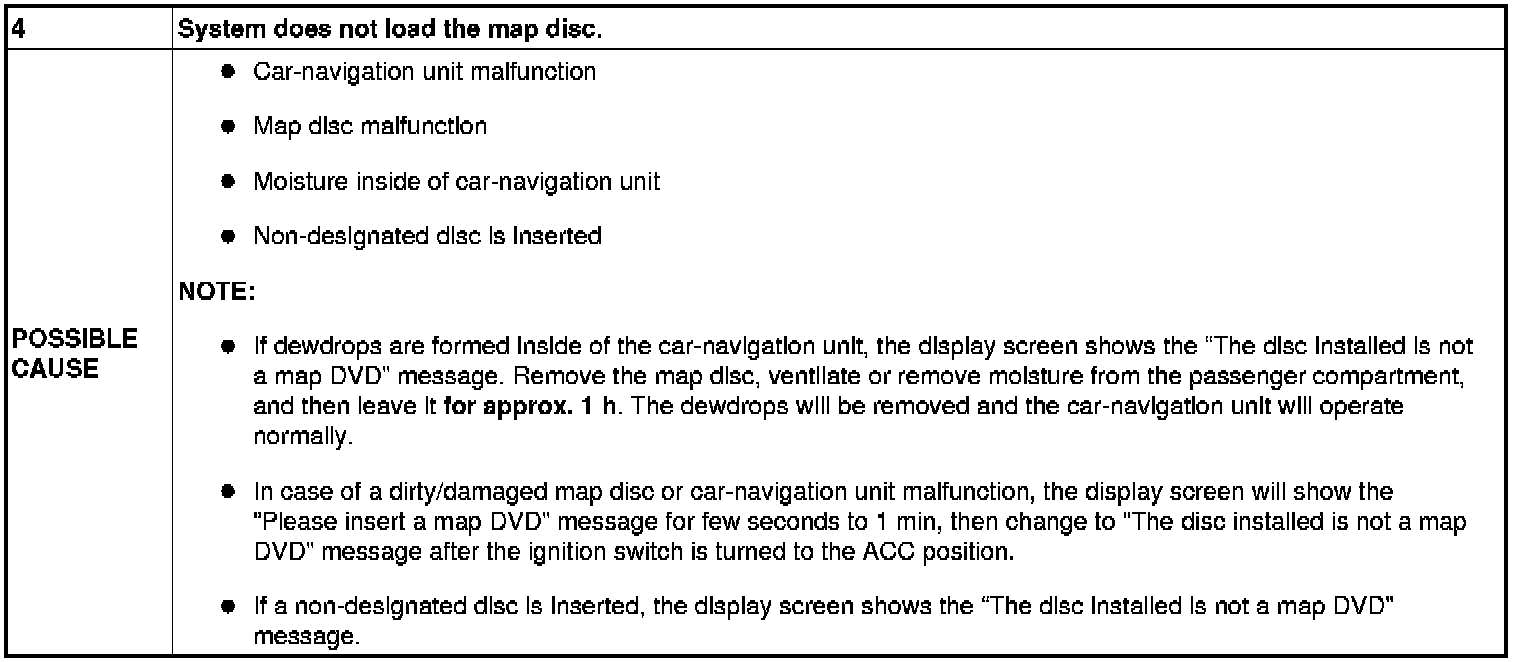

Possible Cause:

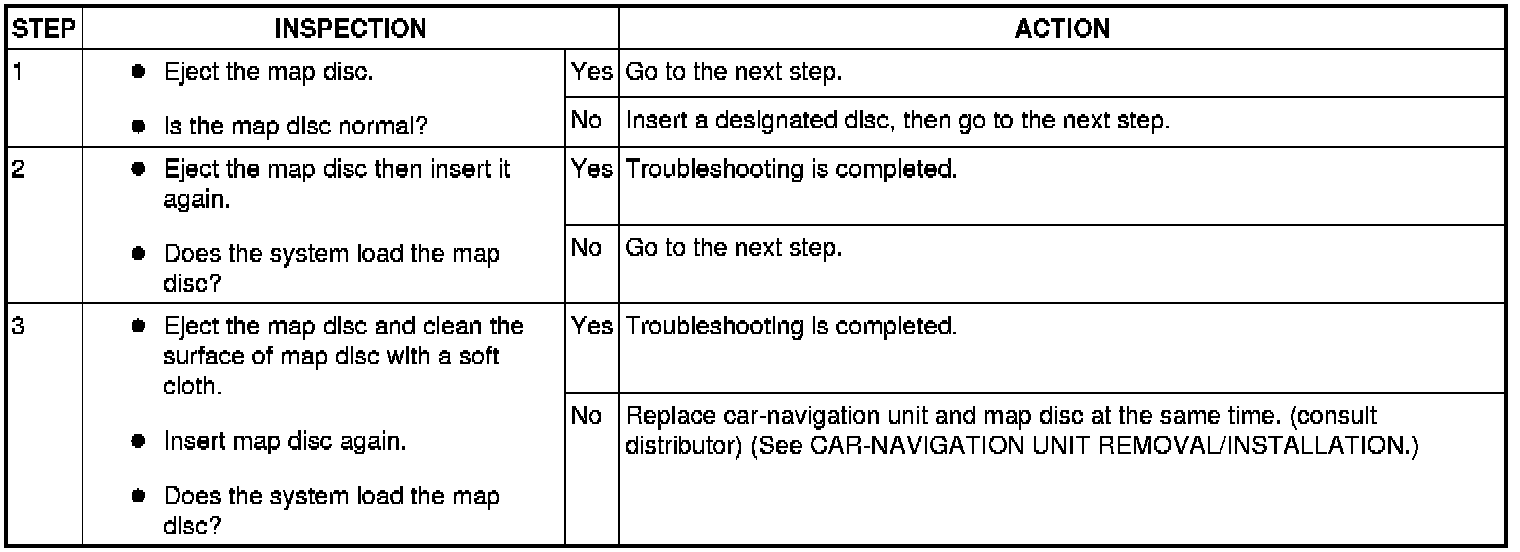

Diagnostic procedure

Step 1-Step 3:
