No.2 Display Screen Changes To Black. [Car-Navigation System]

NO.2 DISPLAY SCREEN CHANGES TO BLACK. [CAR-NAVIGATION SYSTEM]

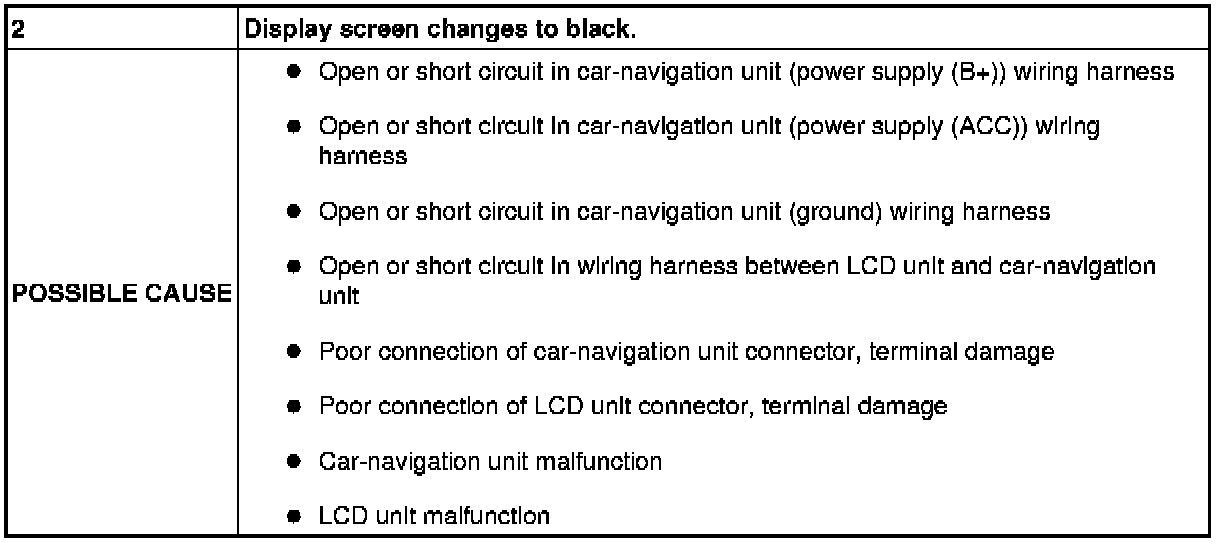

Possible Cause:

Diagnostic procedure

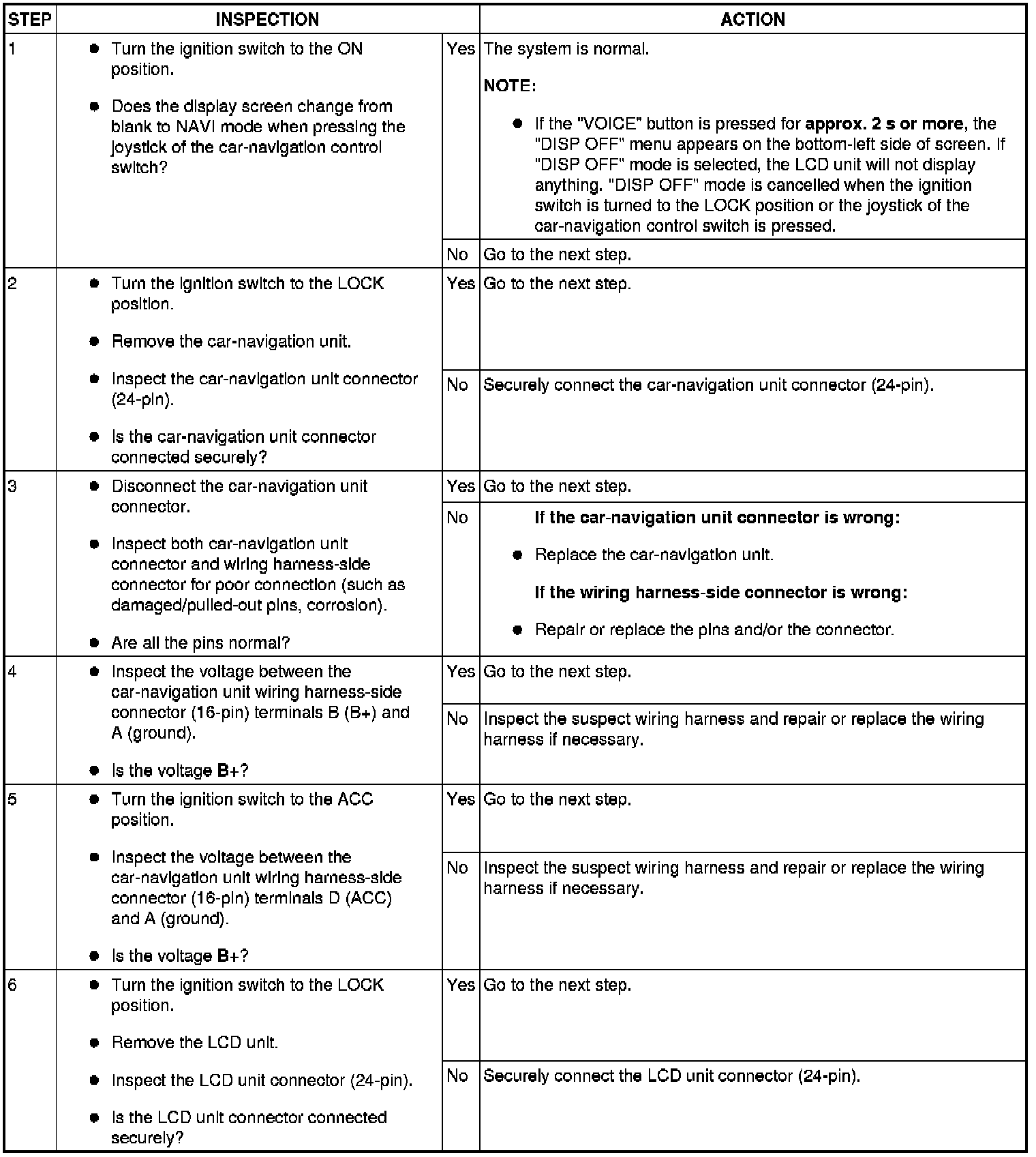

Step 1-Step 6:

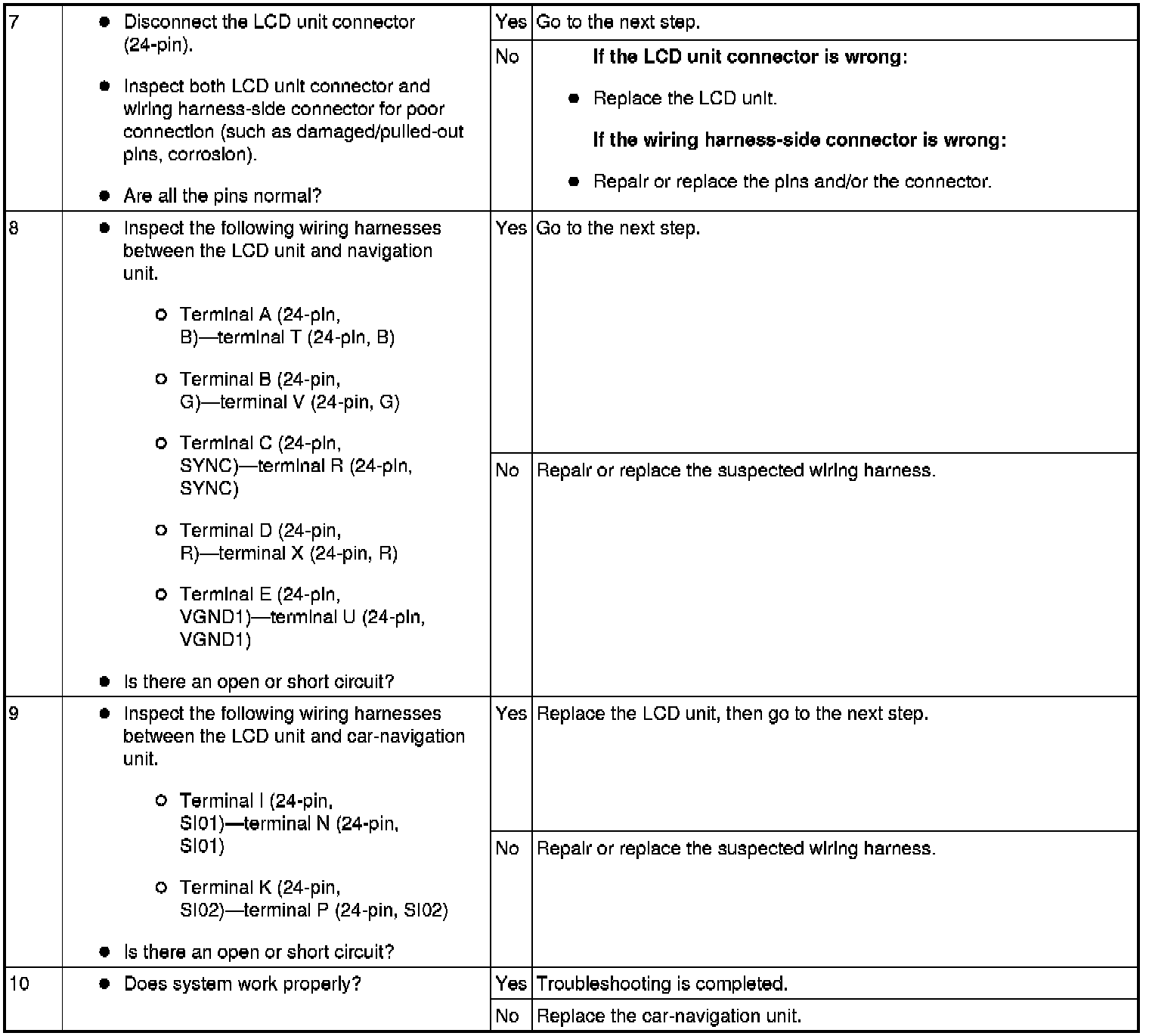

Step 7-Step 10:
