DTC U0073, U2012 [MULTIPLEX COMMUNICATION SYSTEM]

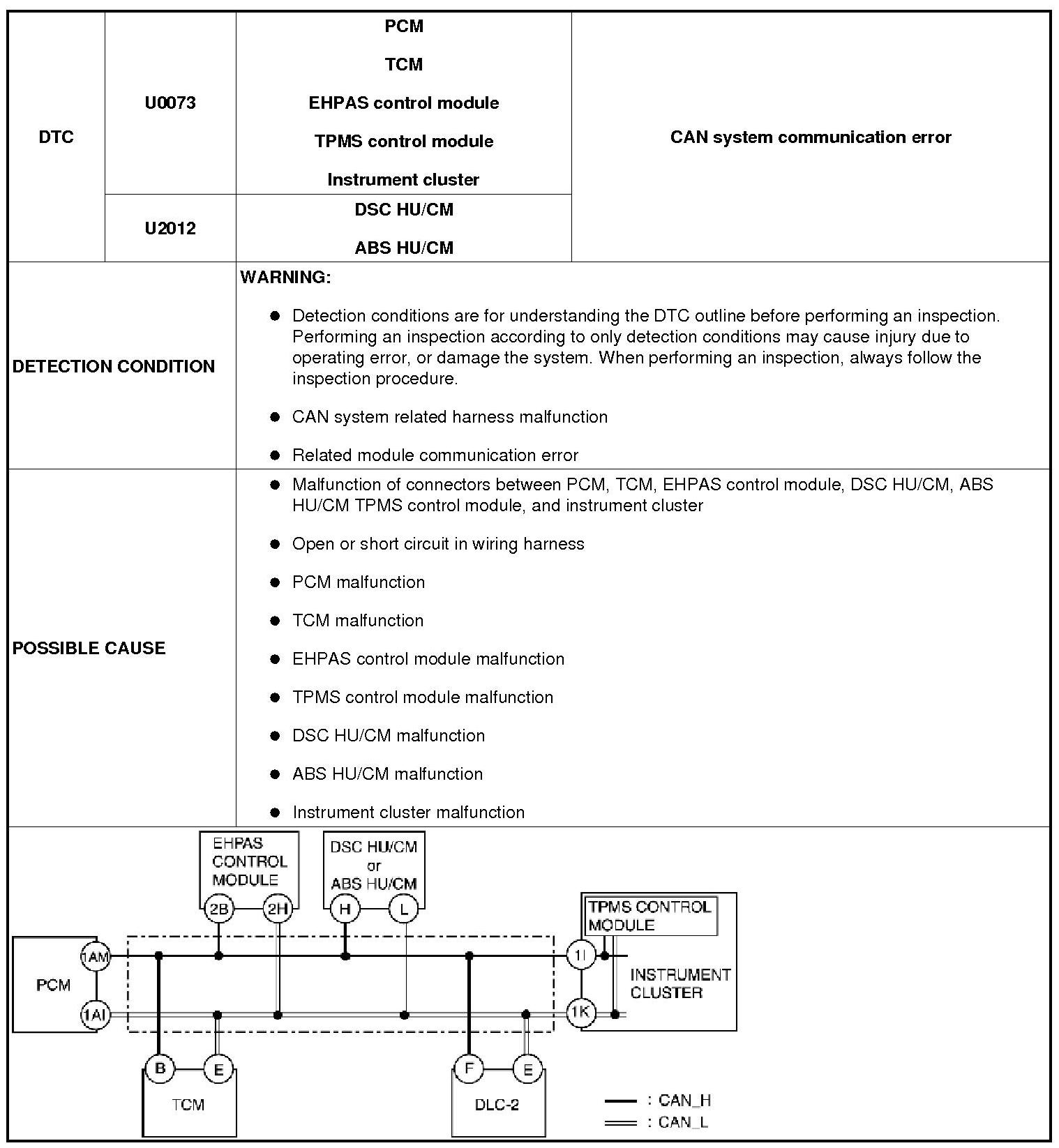

Detection Condition/Possible Cause:

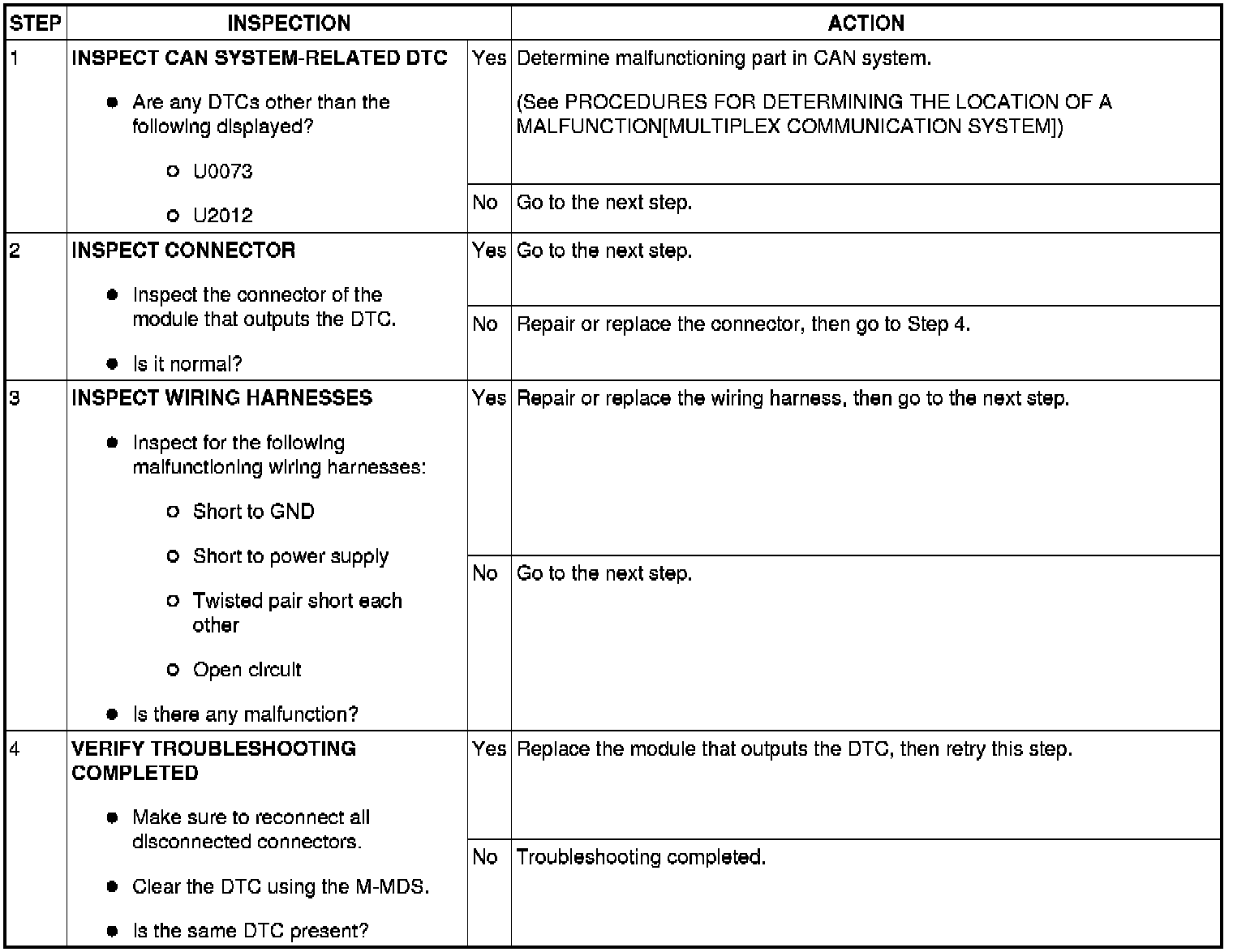

Diagnostic procedure
Step 1-Step 4:
