P2195
P2195
DTC P2195 [L3 WITH TC]

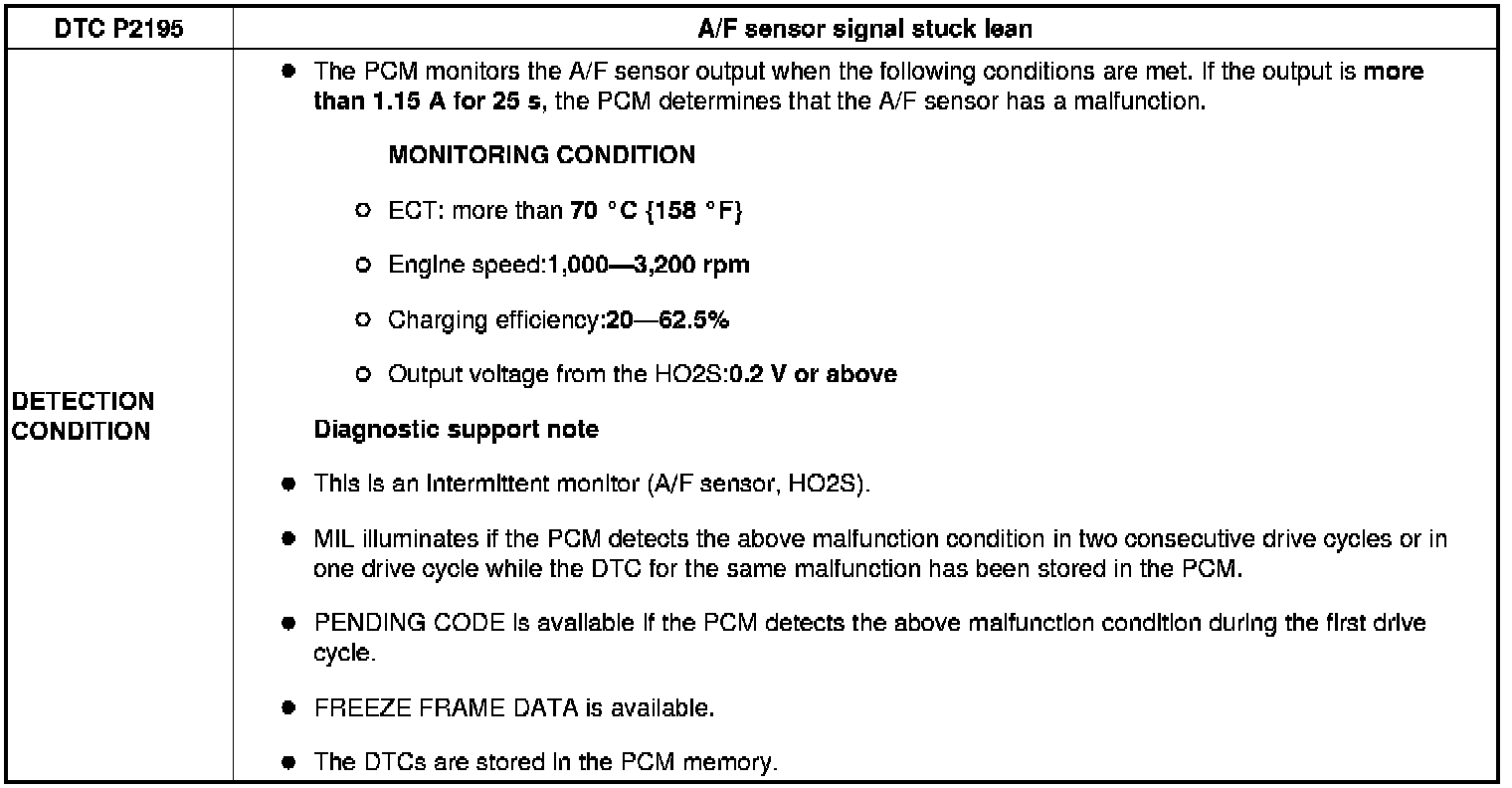

Detection Condition:

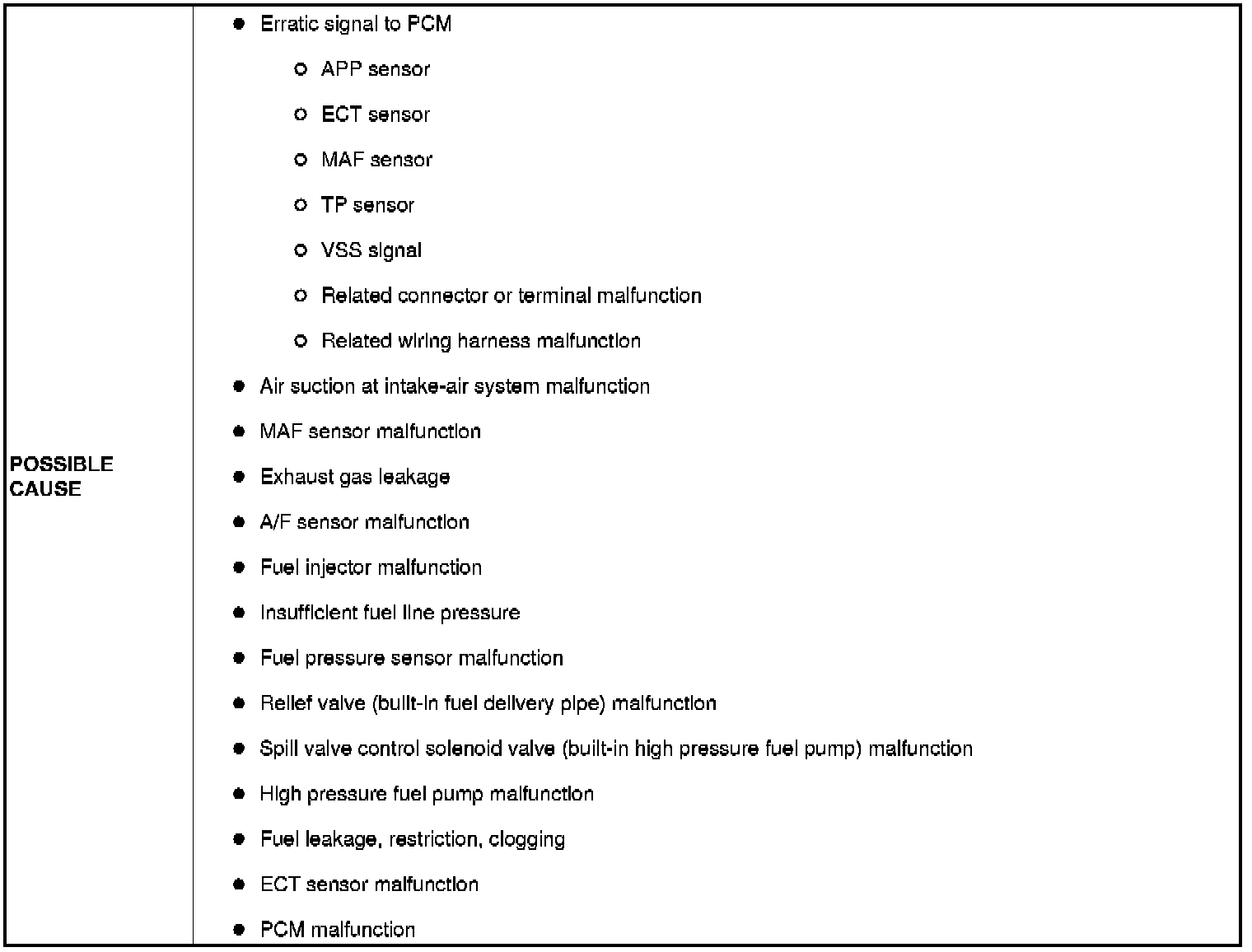

Possible Cause:
Diagnostic procedure

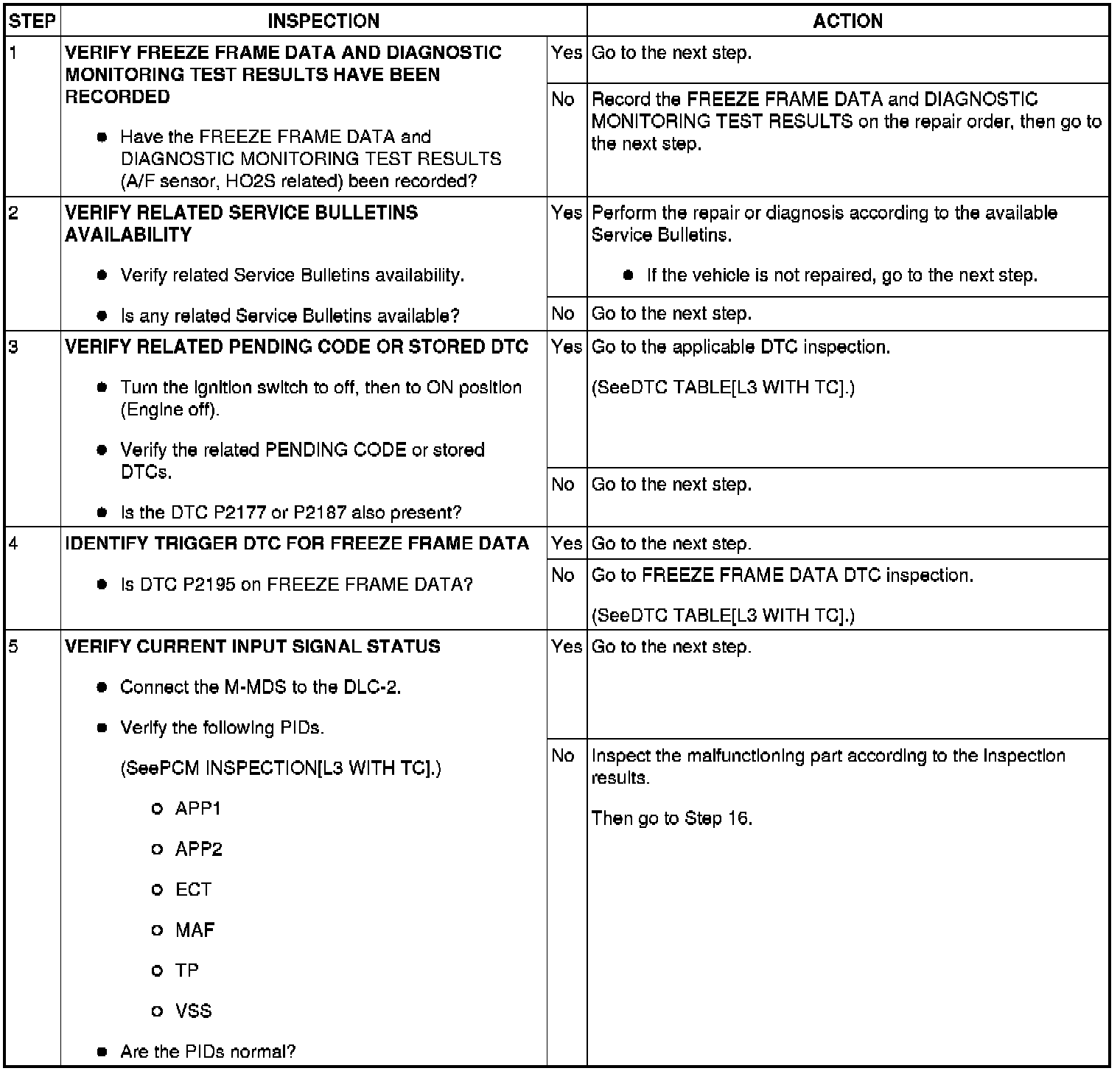

Step 1-Step 5:

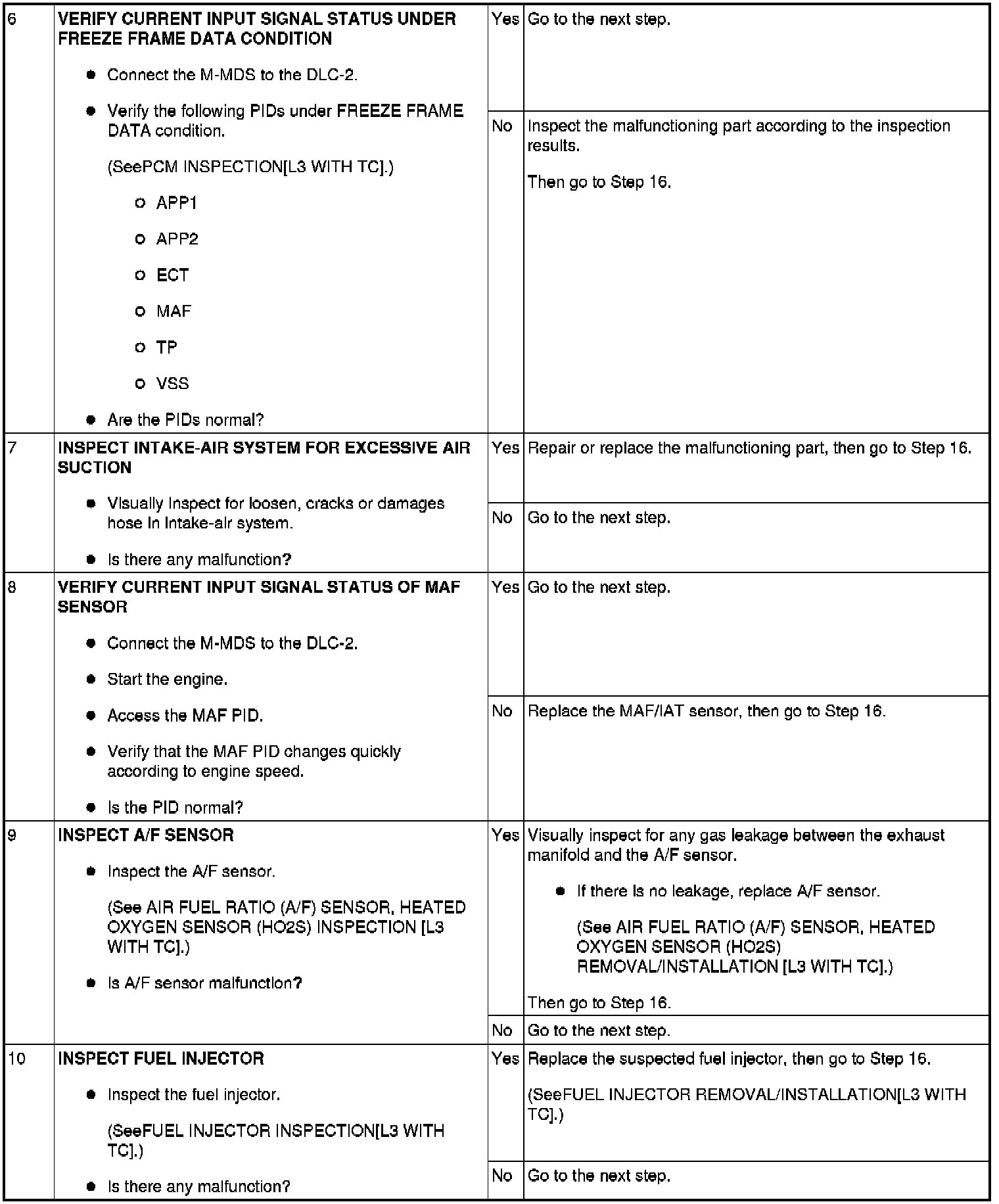

Step 6-Step 10:

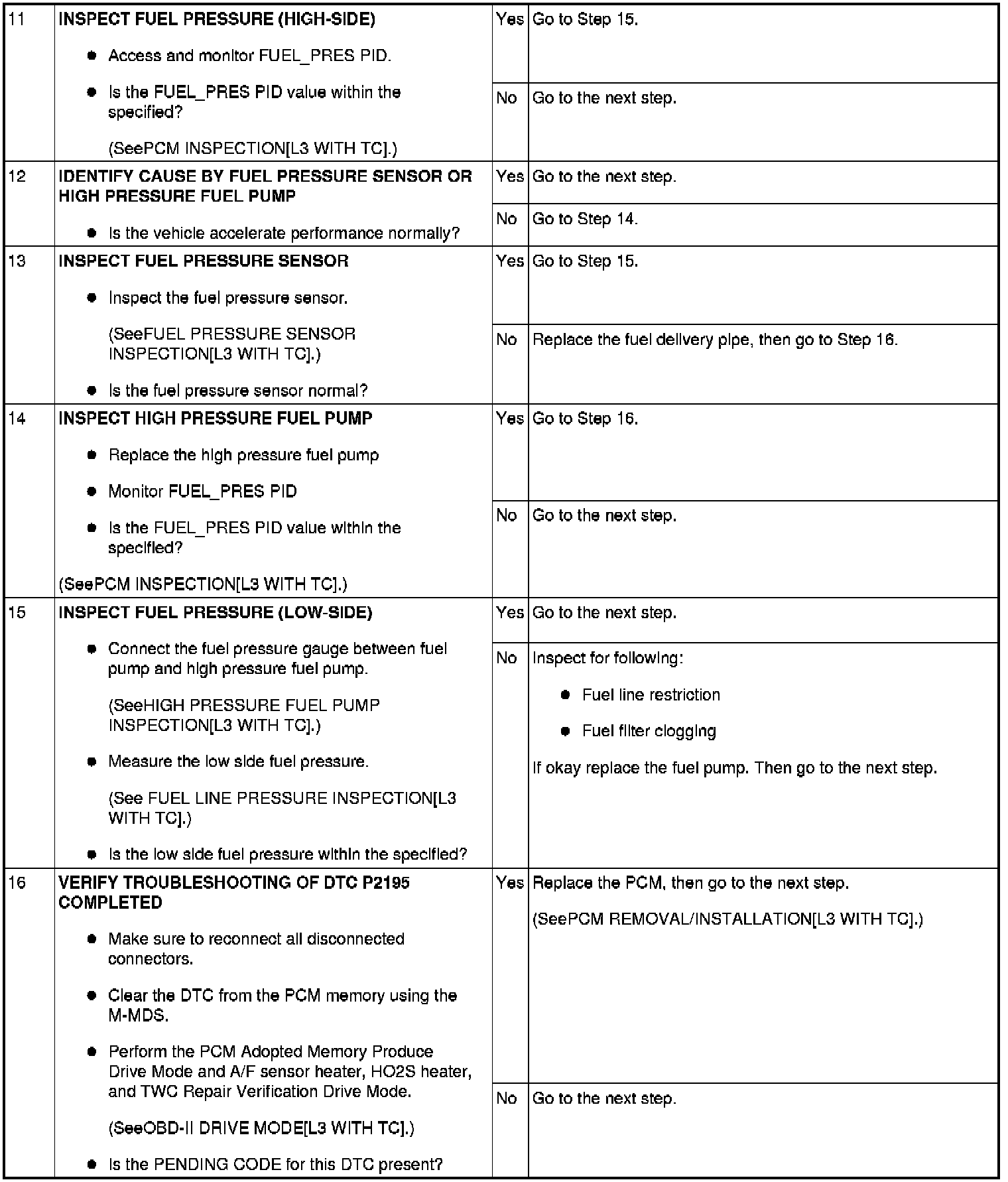

Step 11-Step 16:

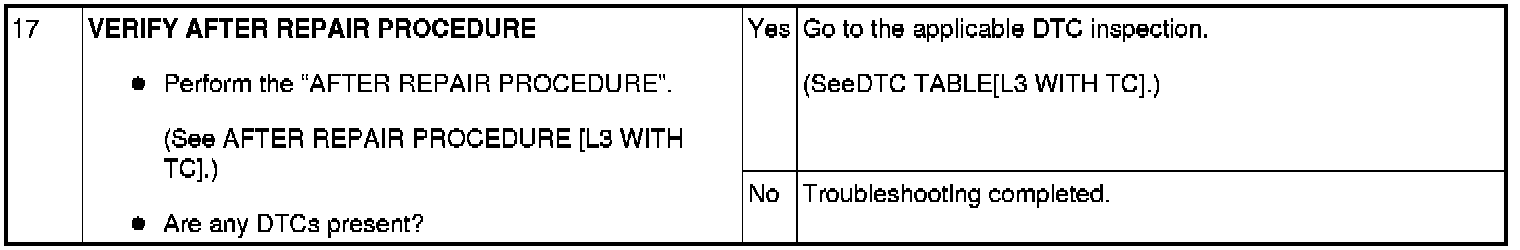

Step 17:
