DTC P2188 [L3 WITH TC]

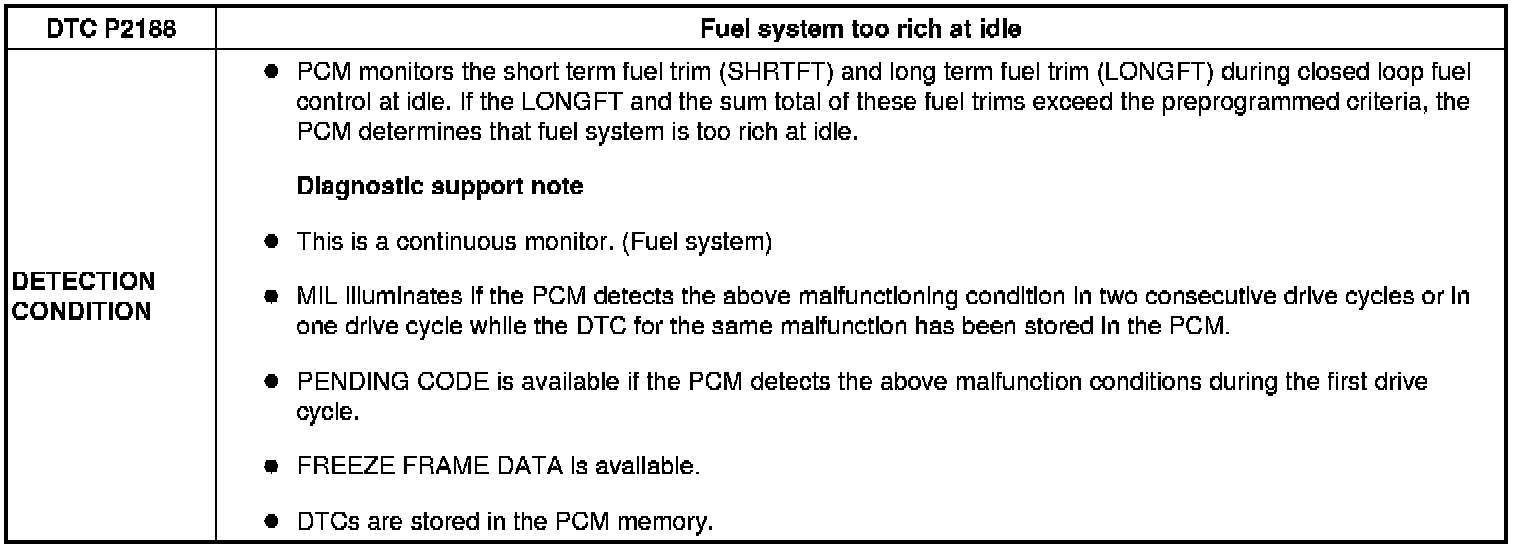

Detection Condition:

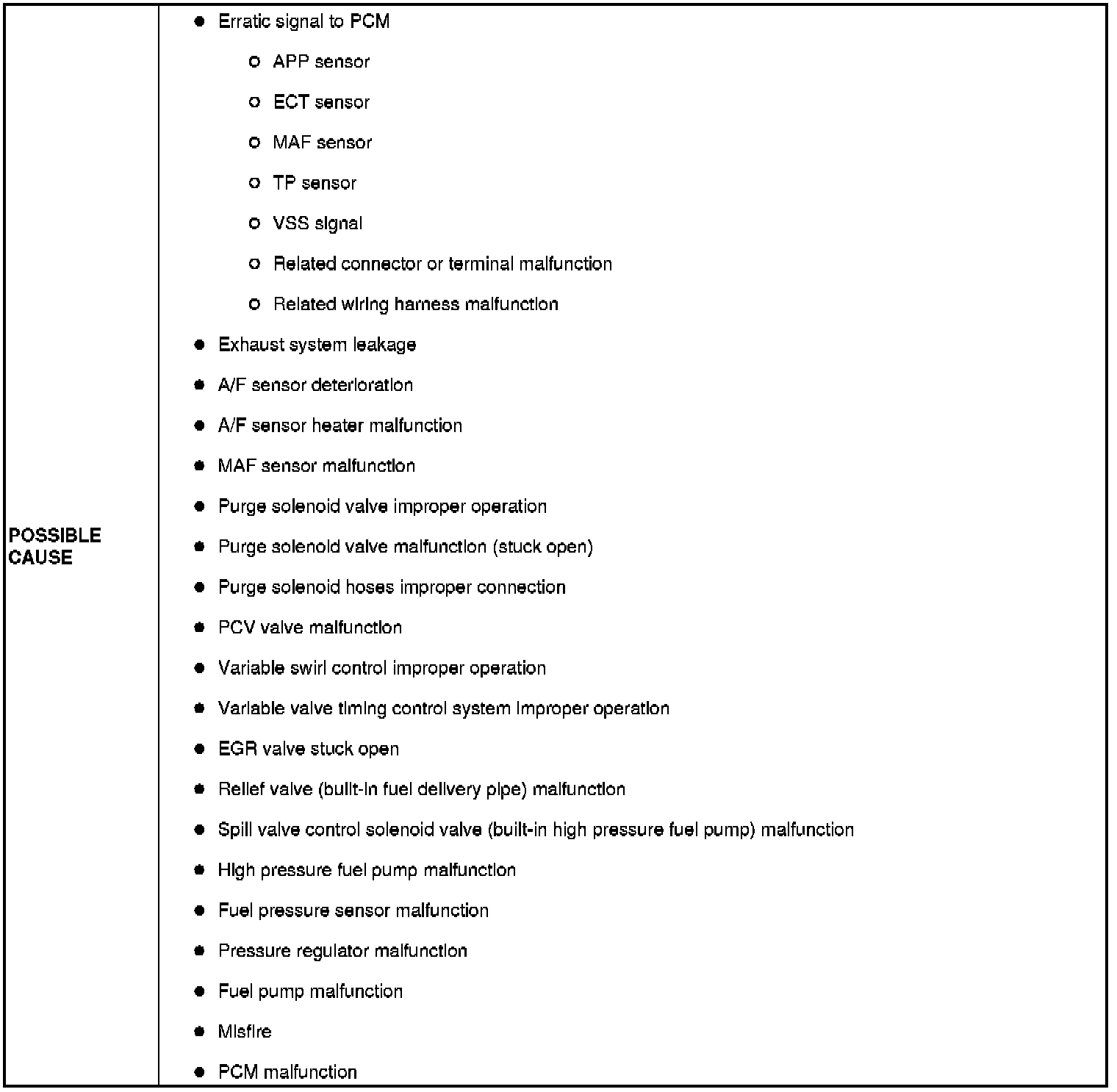

Possible Cause:
Diagnostic procedure

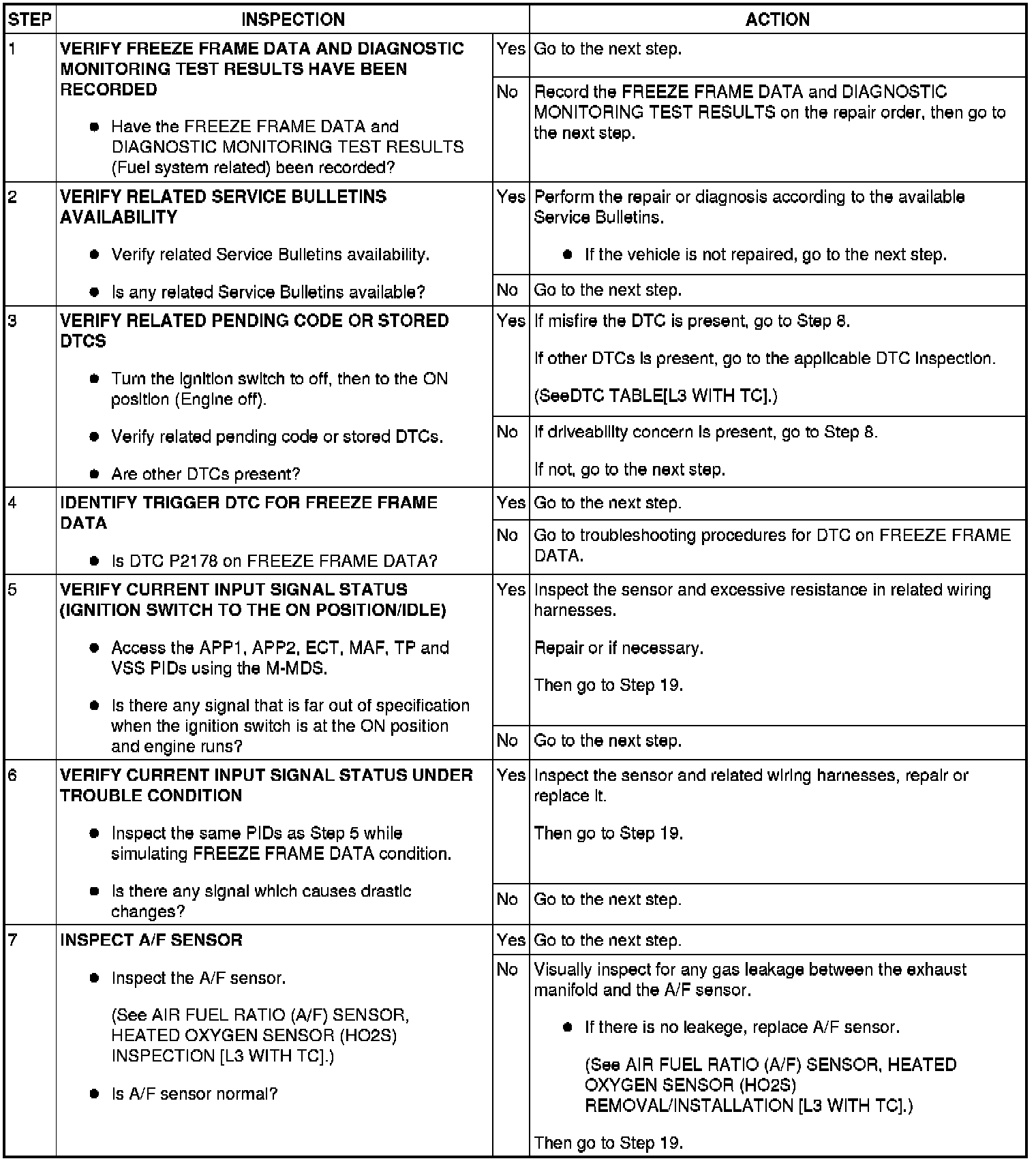

Step 1-Step 7:

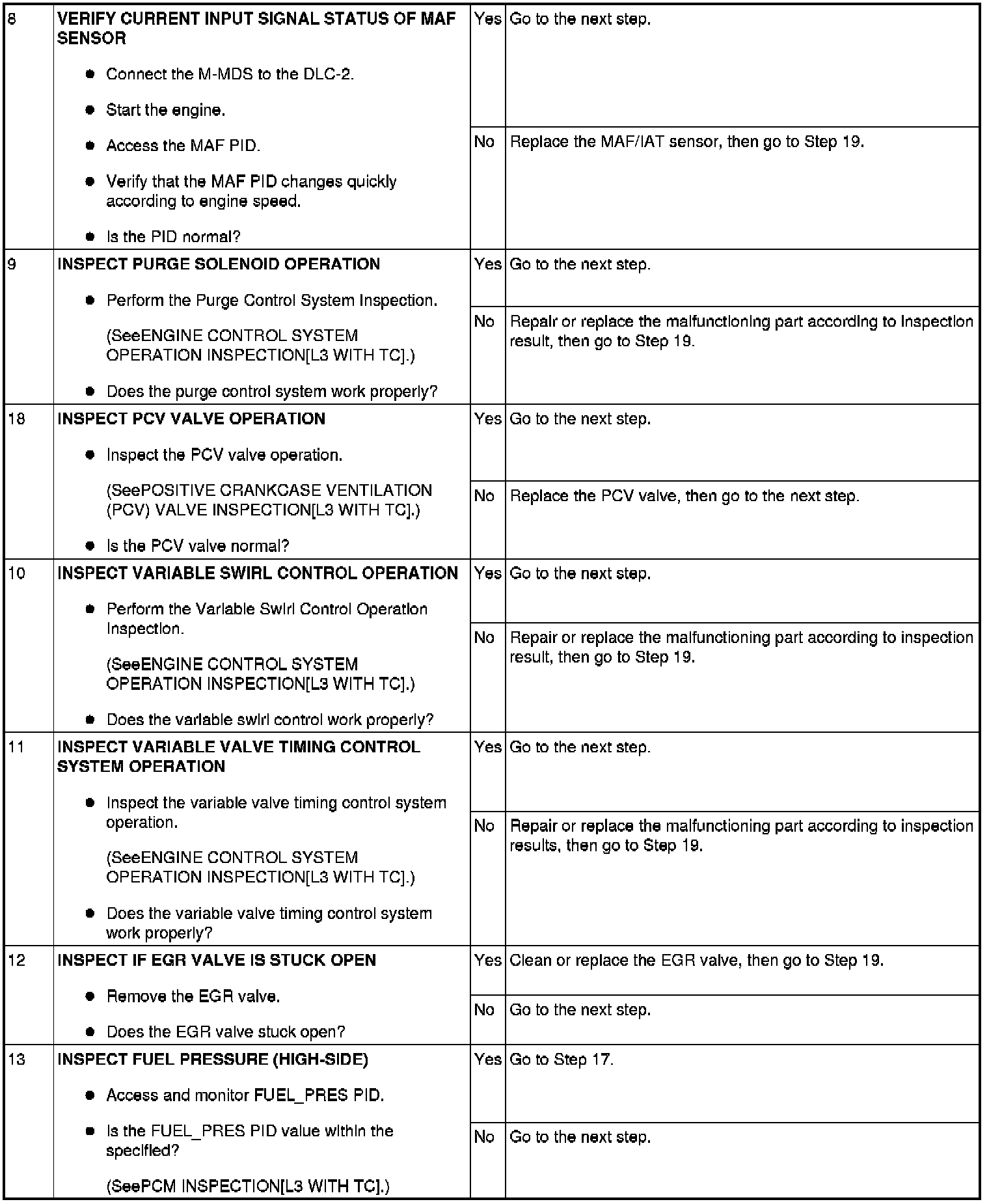

Step 8-Step 13:

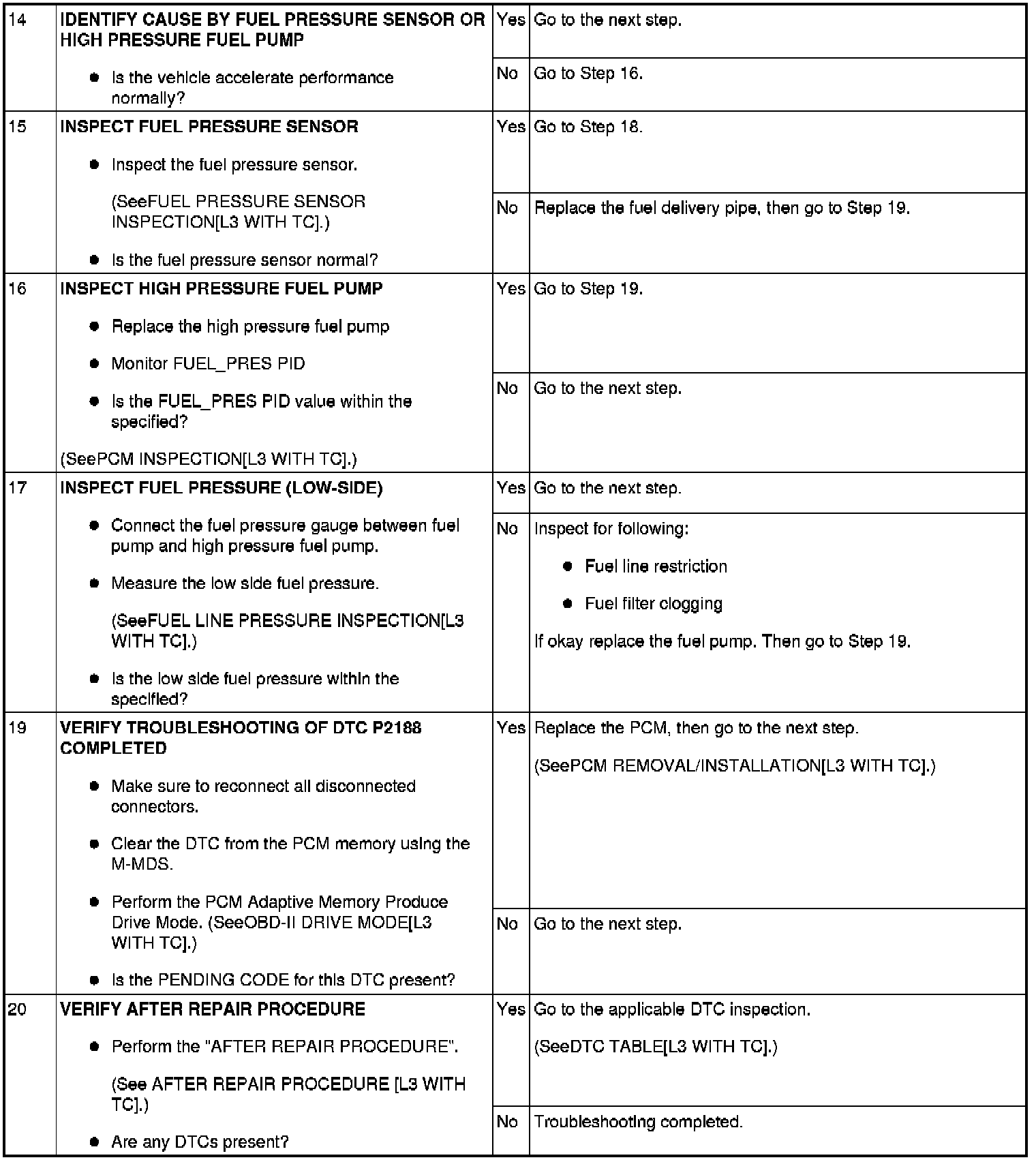

Step 14-Step 20:
