P2178
P2178
DTC P2178 [L3 WITH TC]

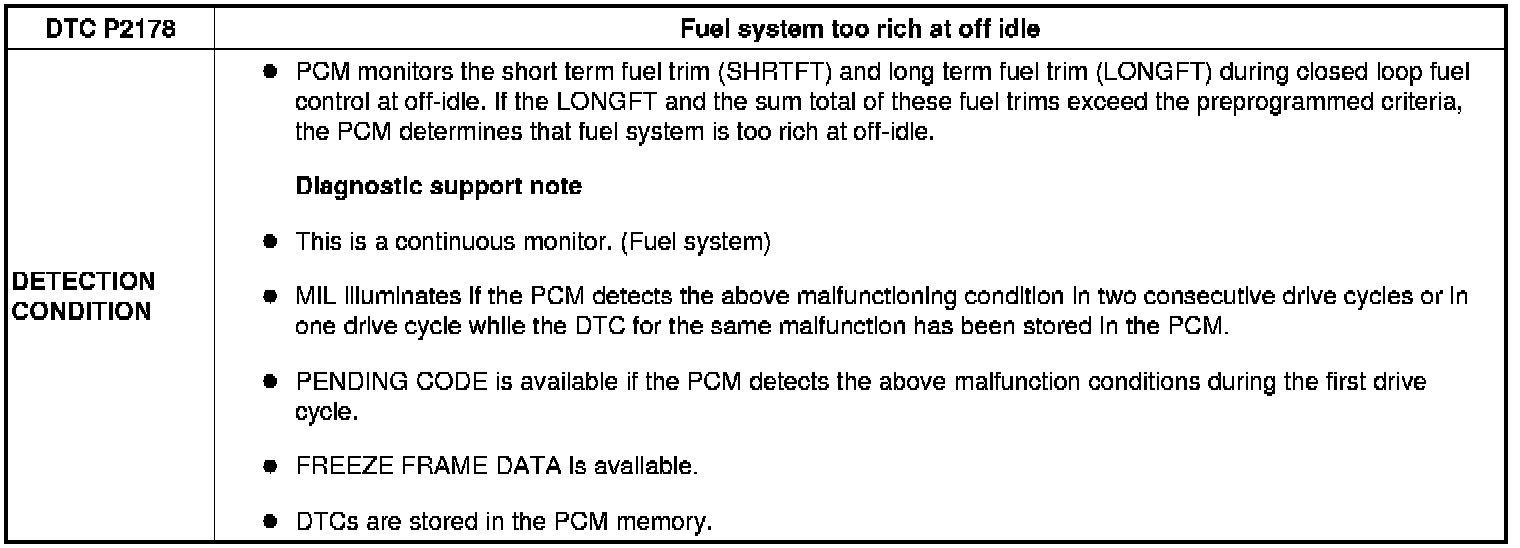

Detection Condition:

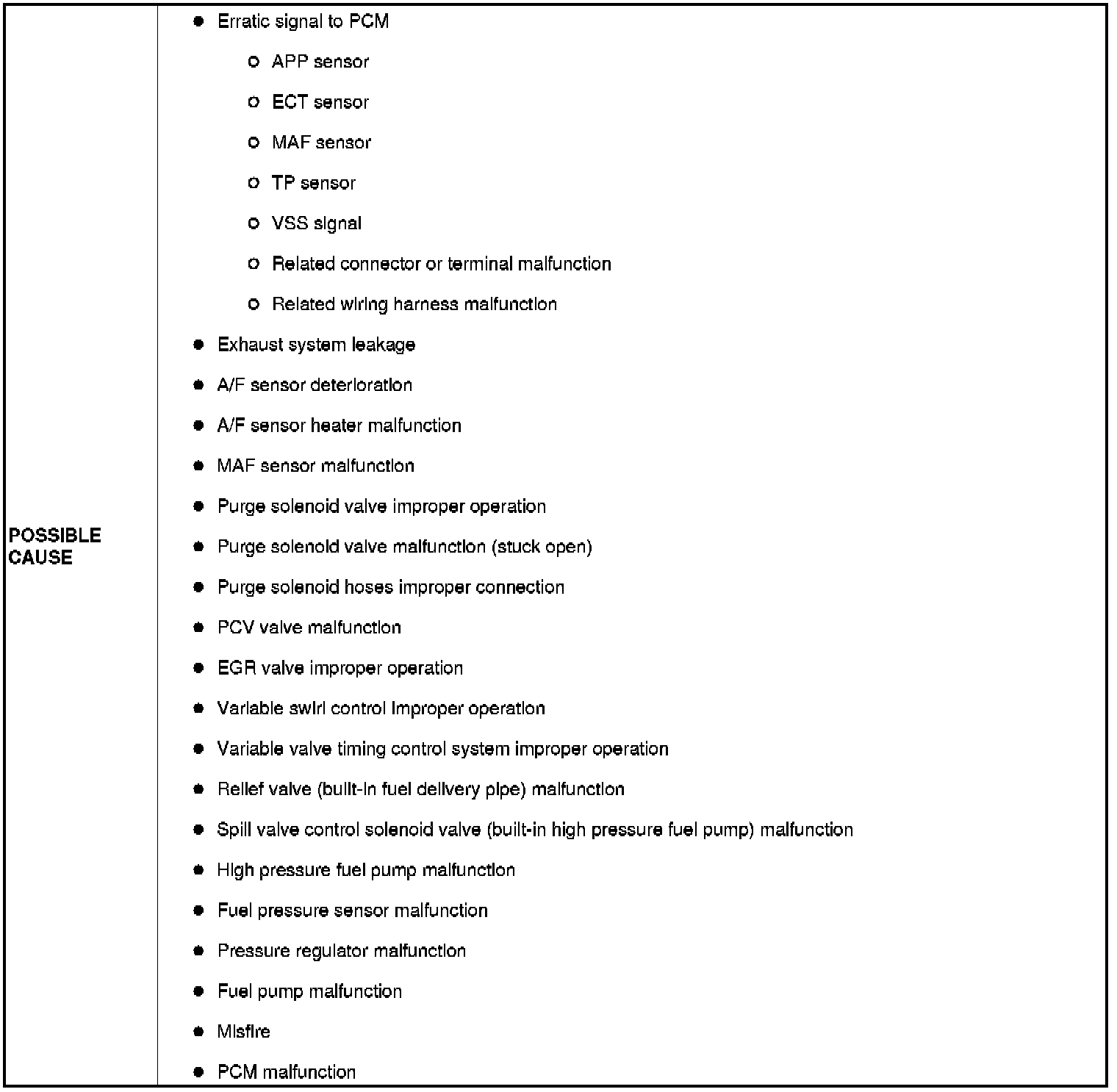

Possible Cause:
Diagnostic procedure

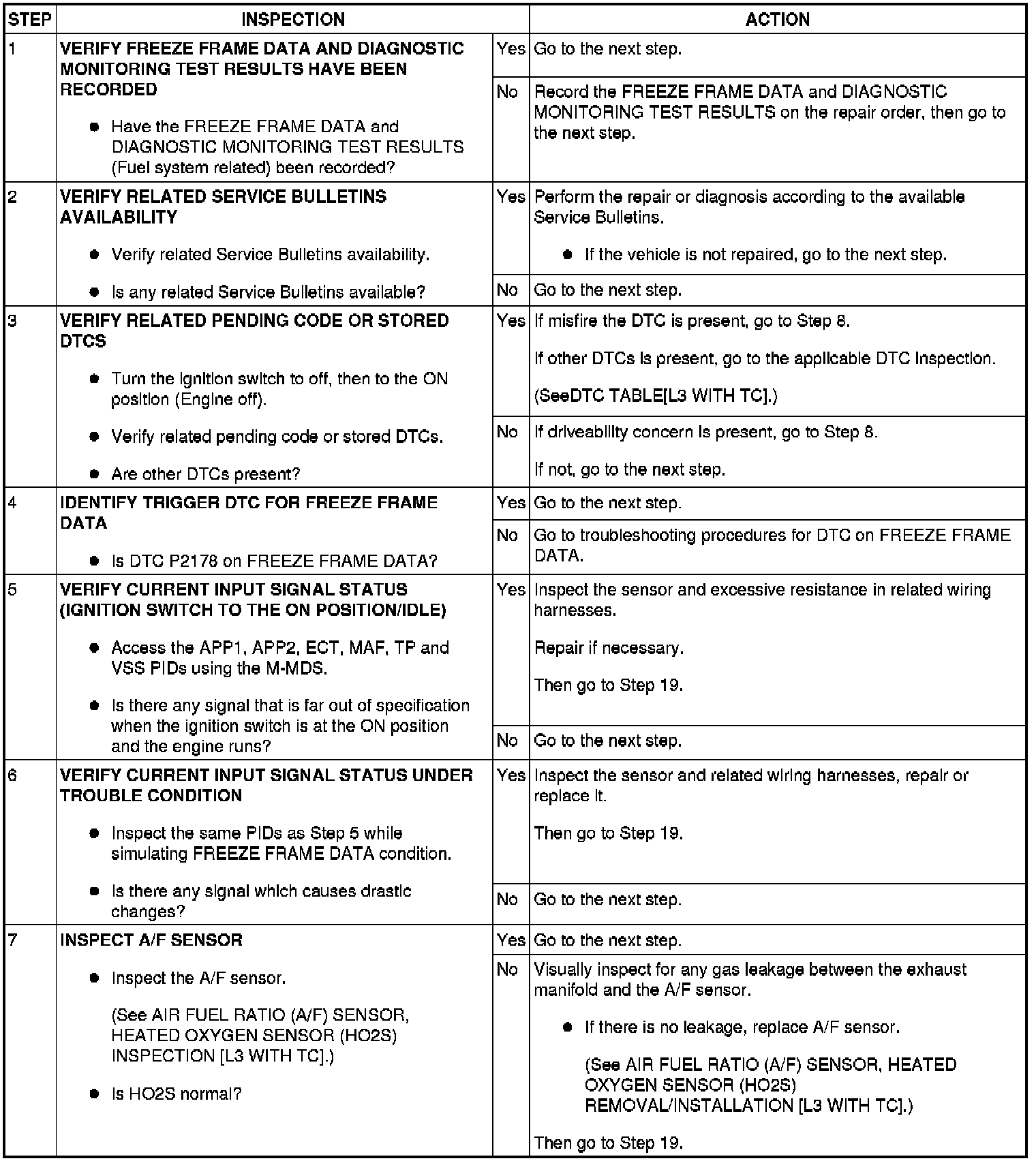

Step 1-Step 7:

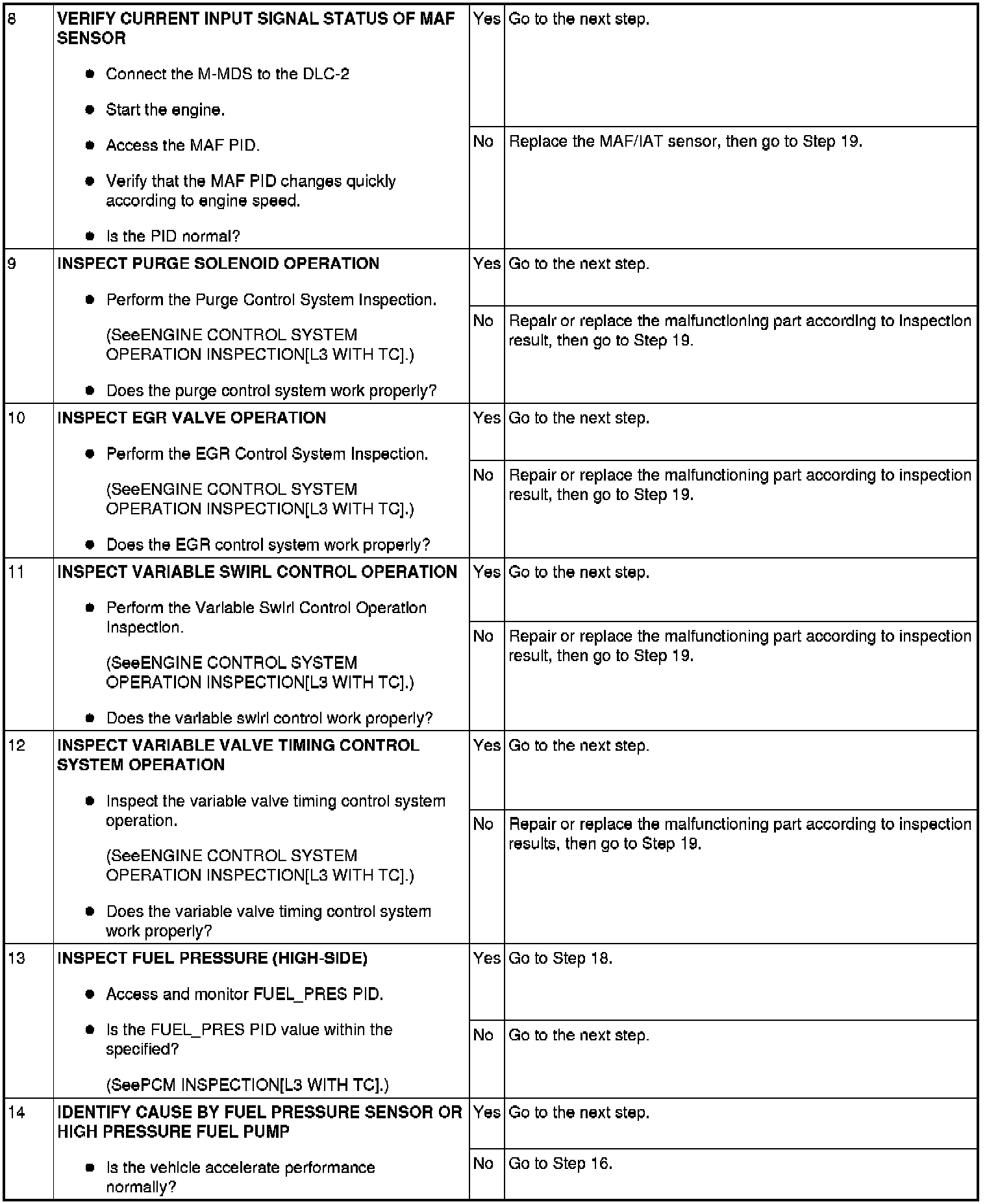

Step 8-Step 14:

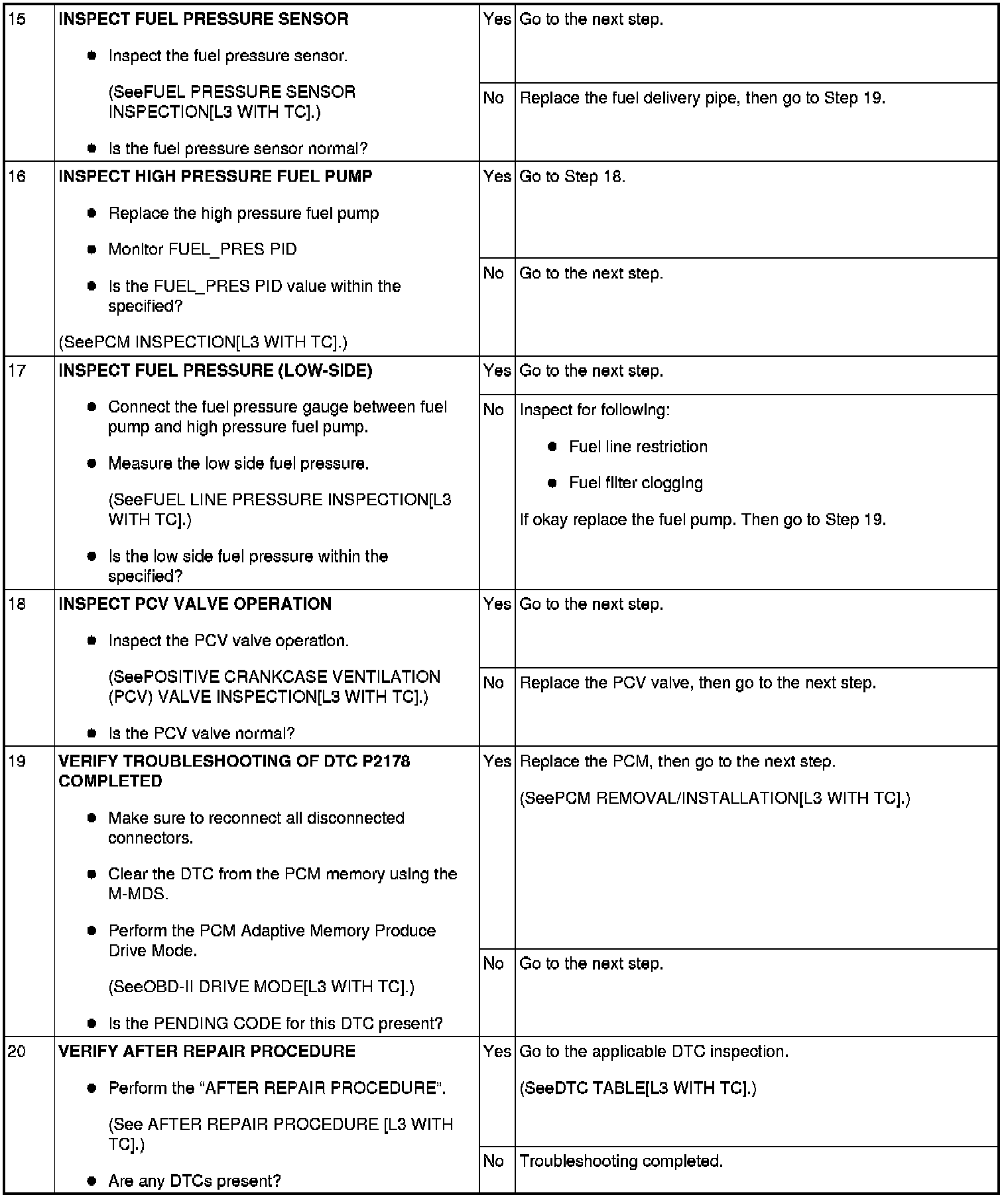

Step 15-Step 20:
