DTC P2101 [L3 WITH TC]
Detection Condition/Possible Cause:
Diagnostic procedure

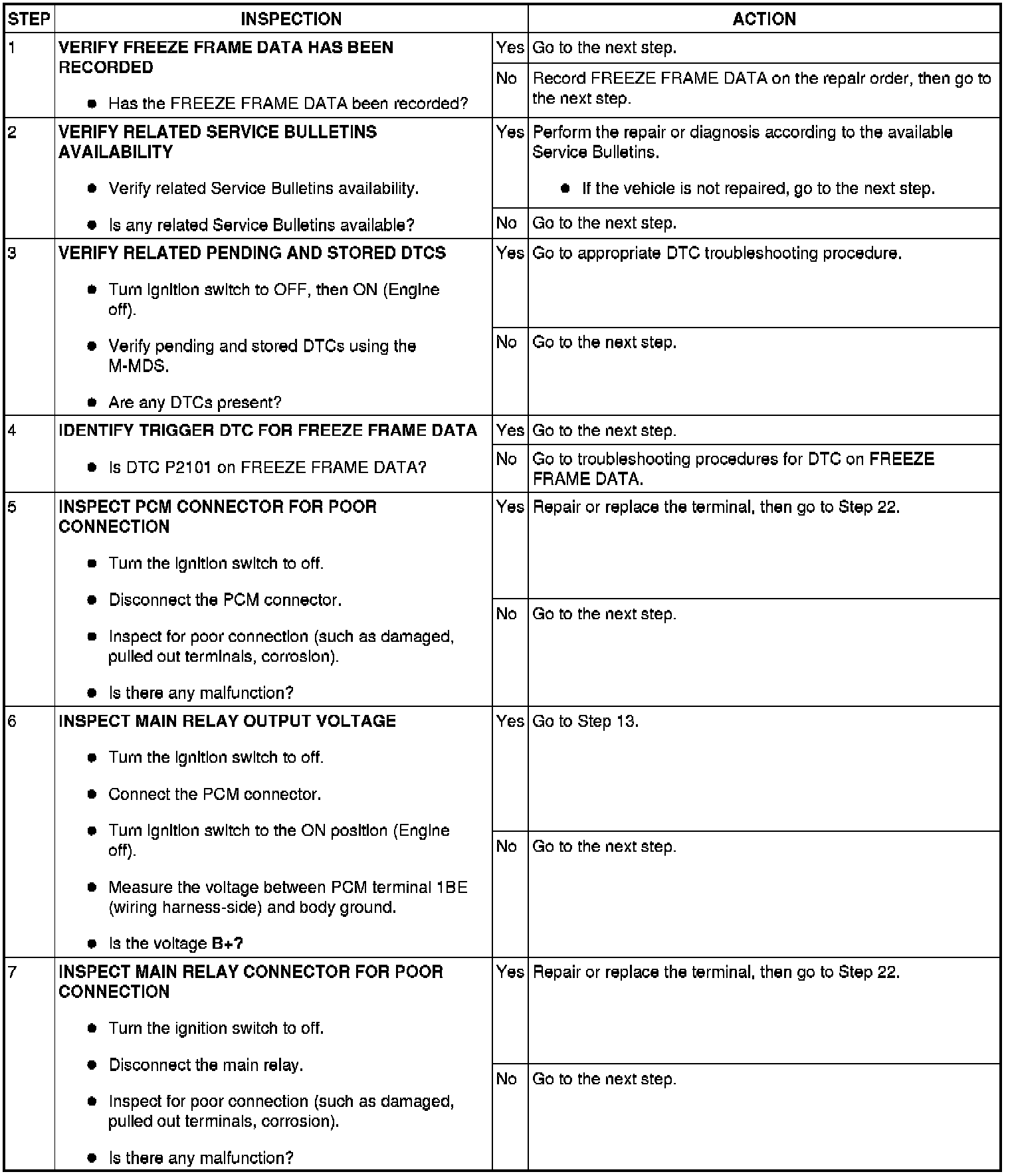

Step 1-Step 7:

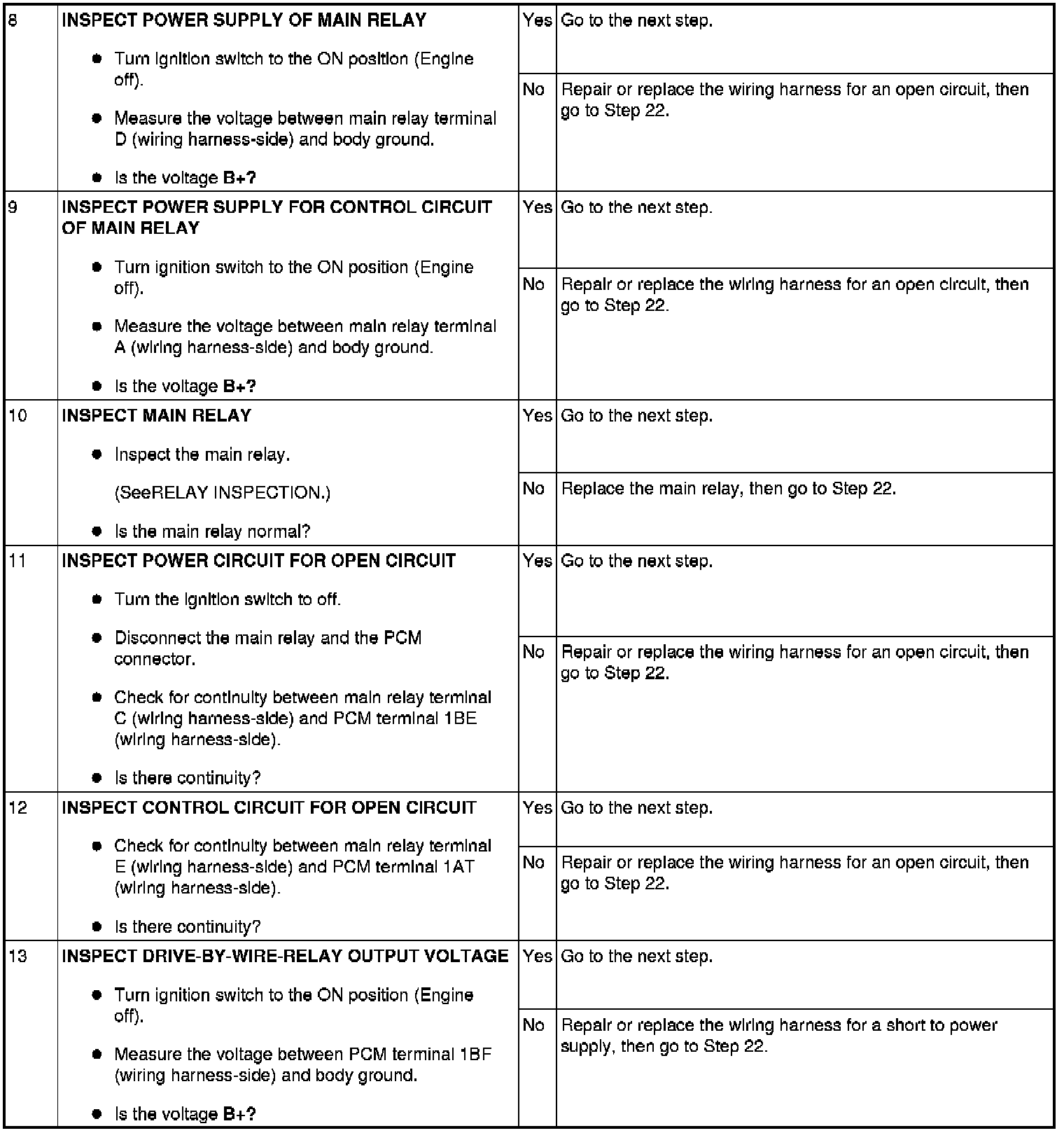

Step 8-Step 13:

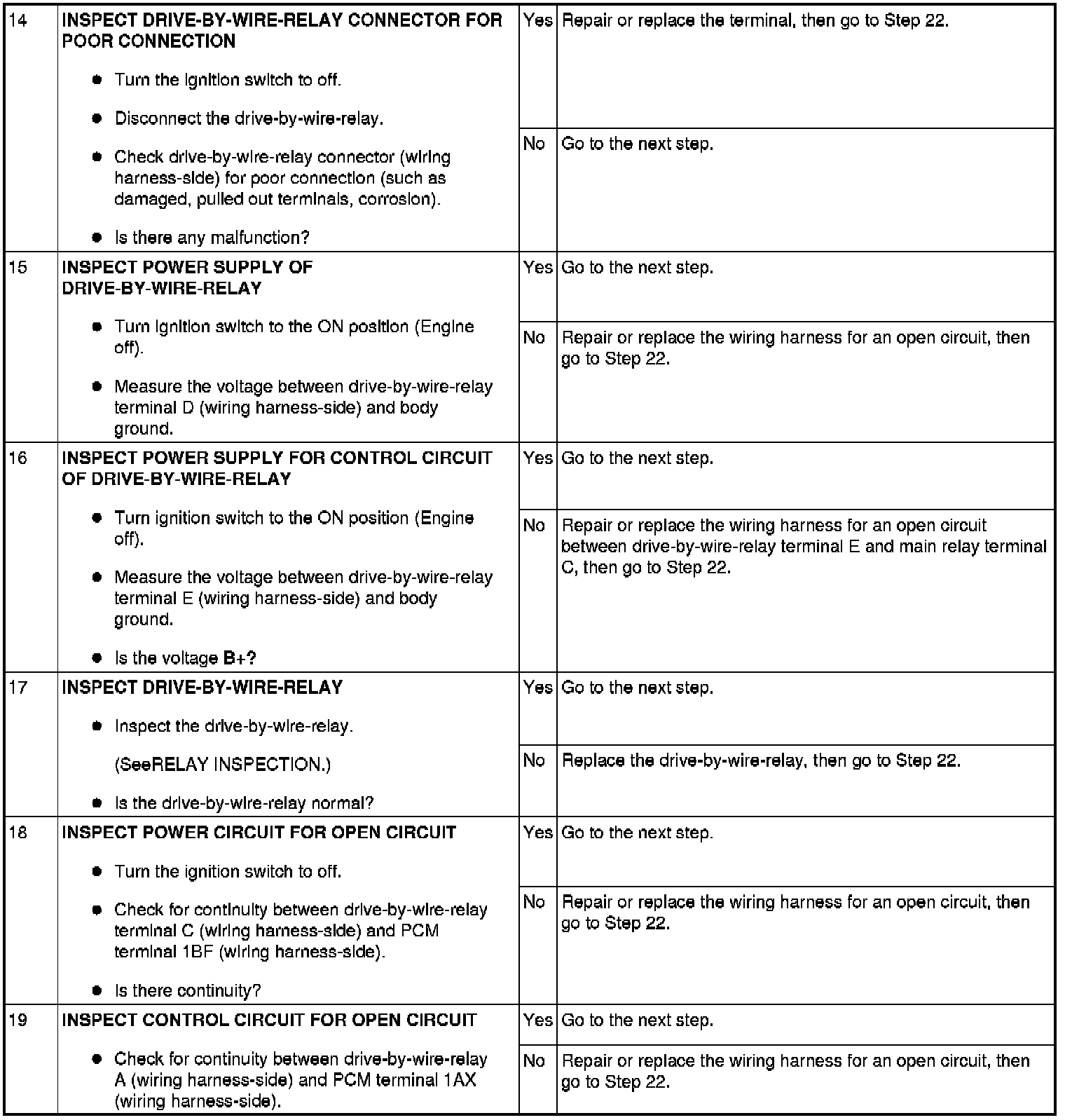

Step 14-Step 19:

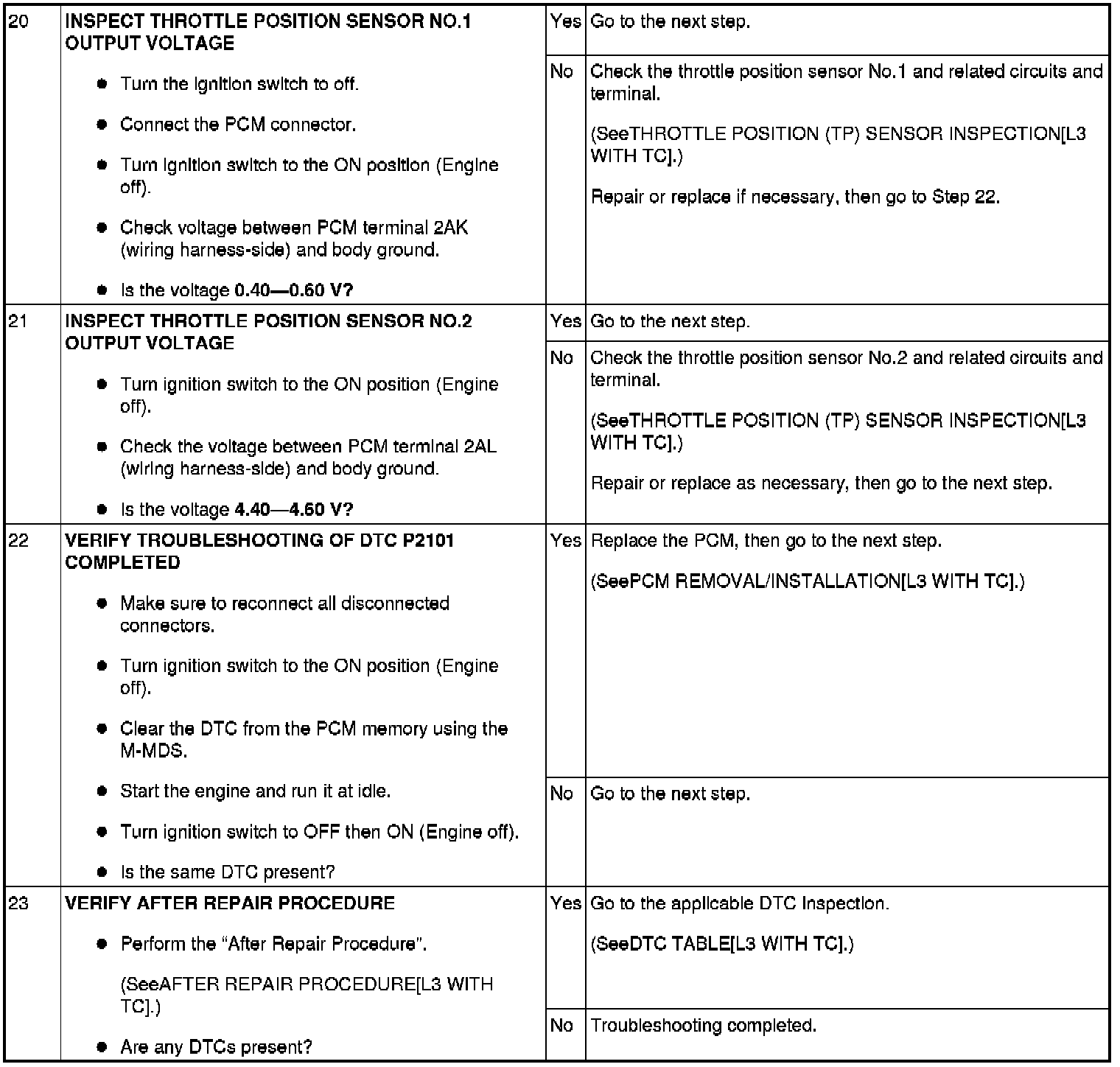

Step 20-Step 23:
