DTC P2096 [L3 WITH TC]

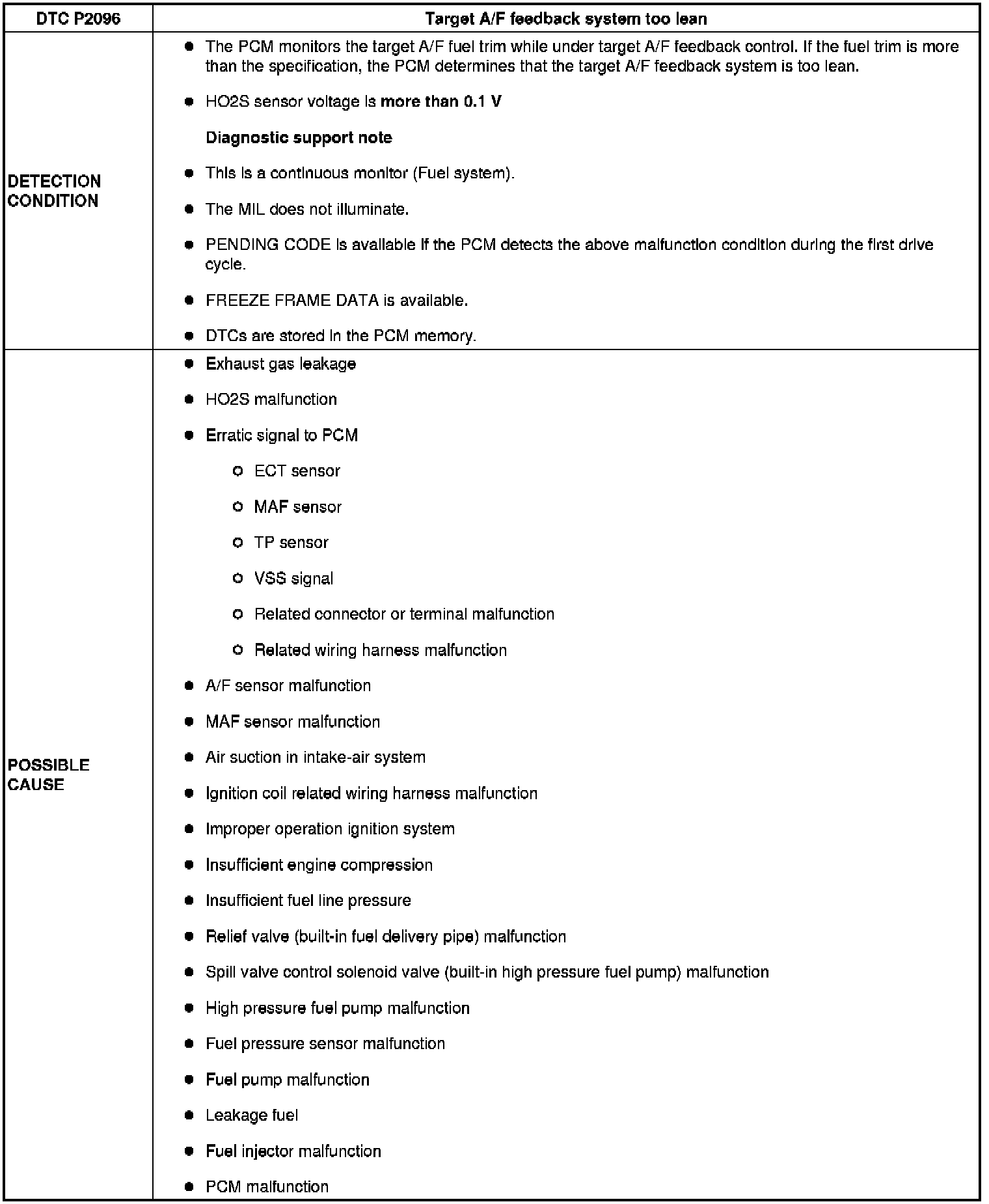

Detection Condition/Possible Cause:
Diagnostic procedure

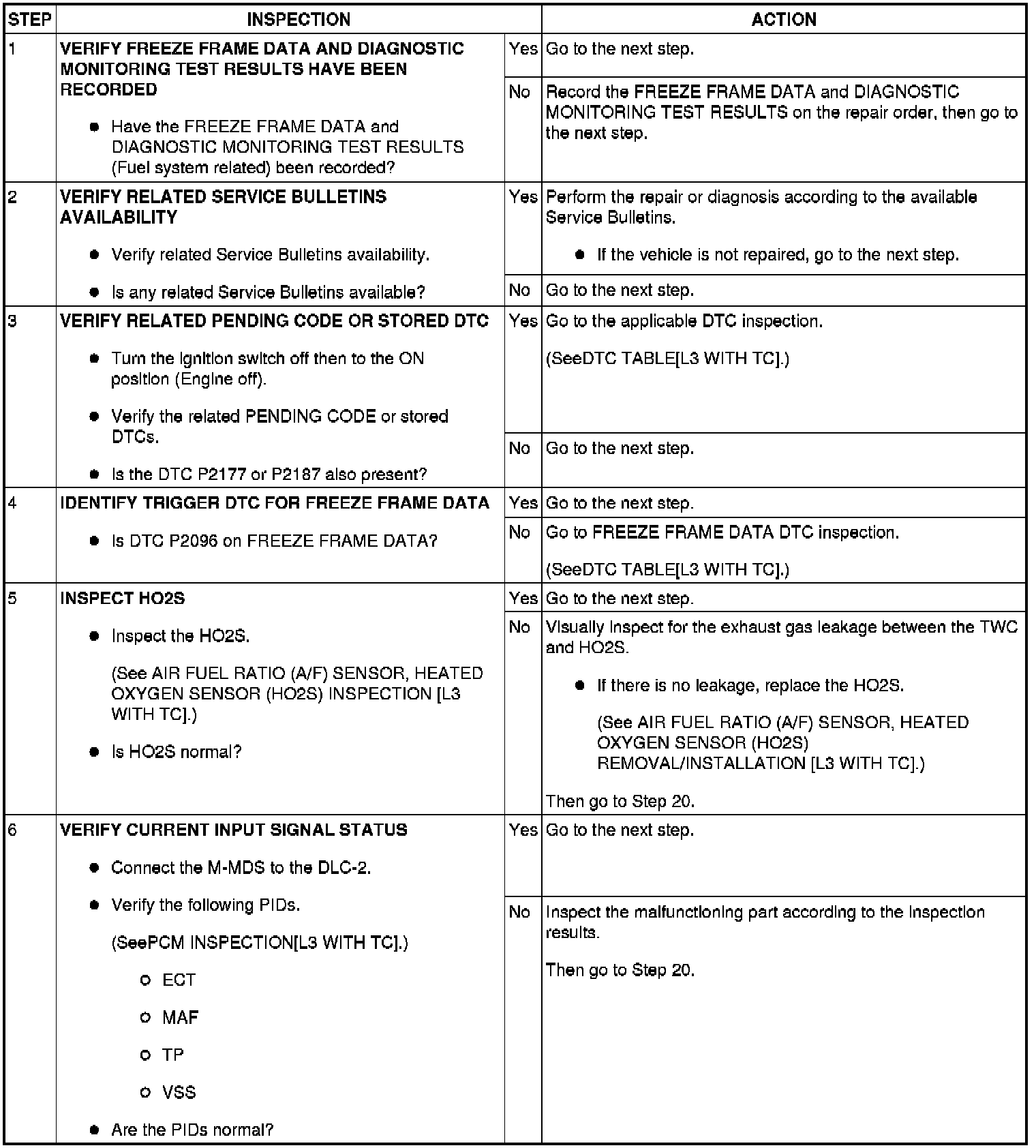

Step 1-Step 6:

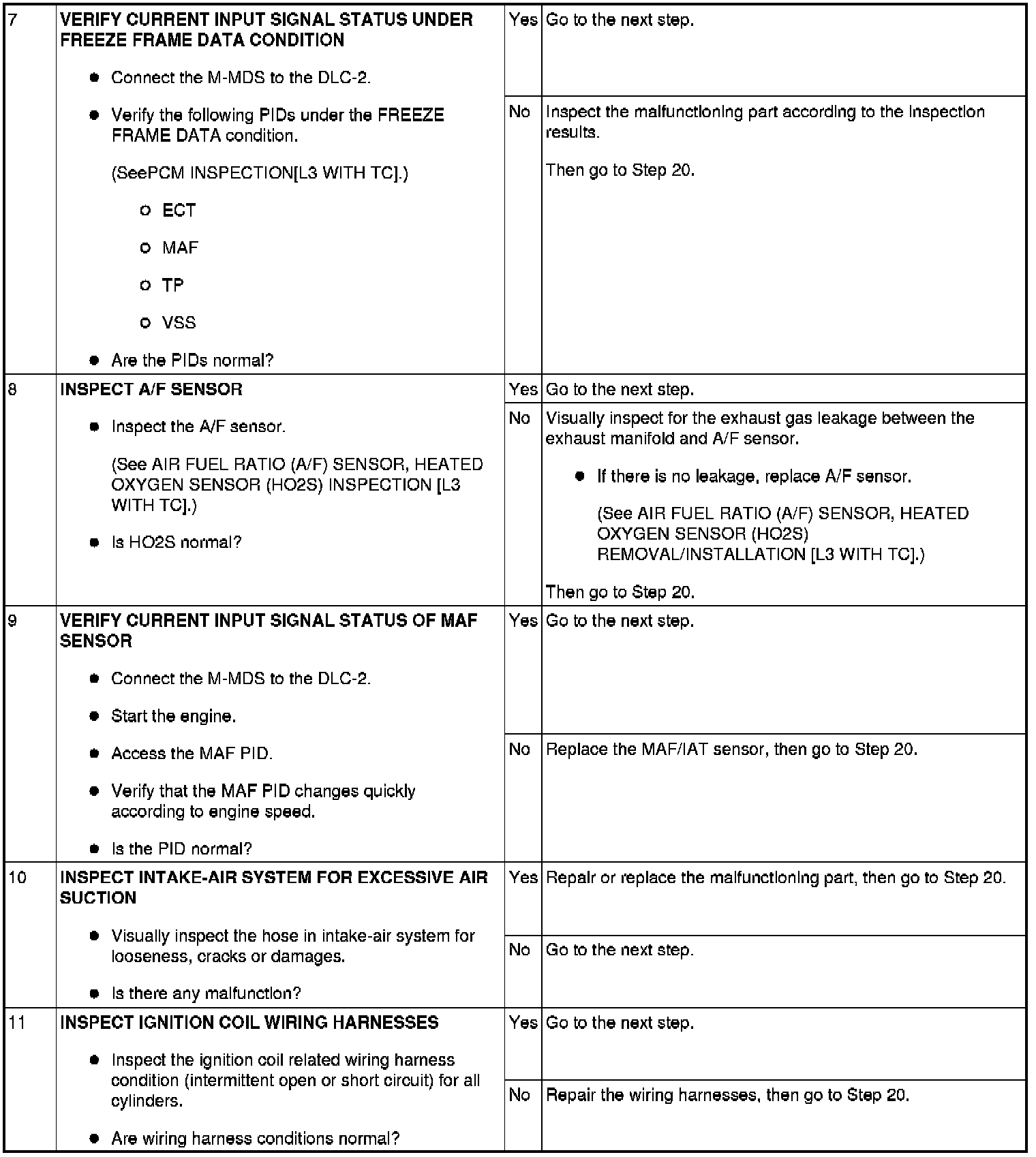

Step 7-Step 11:

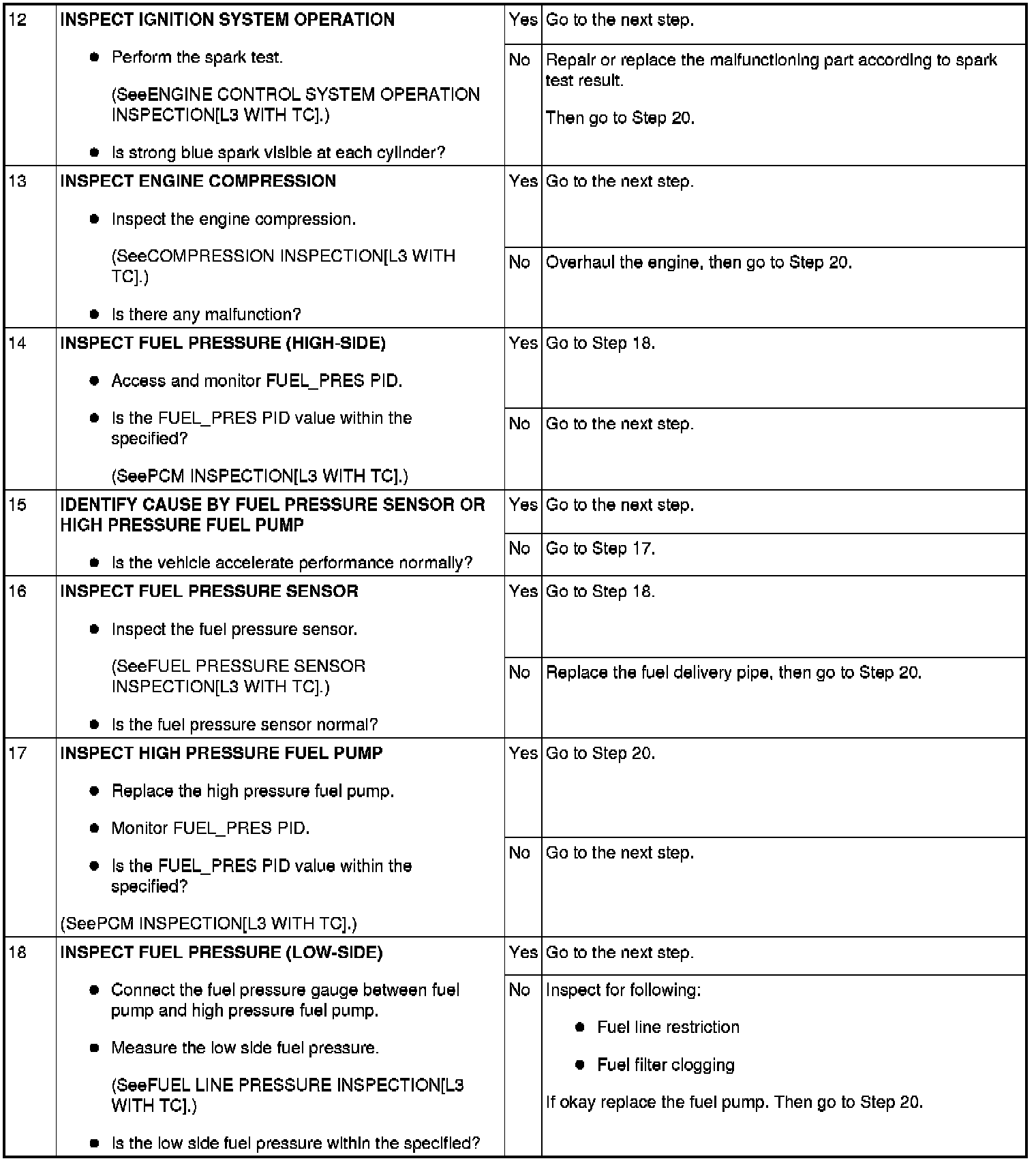

Step 12-Step 18:

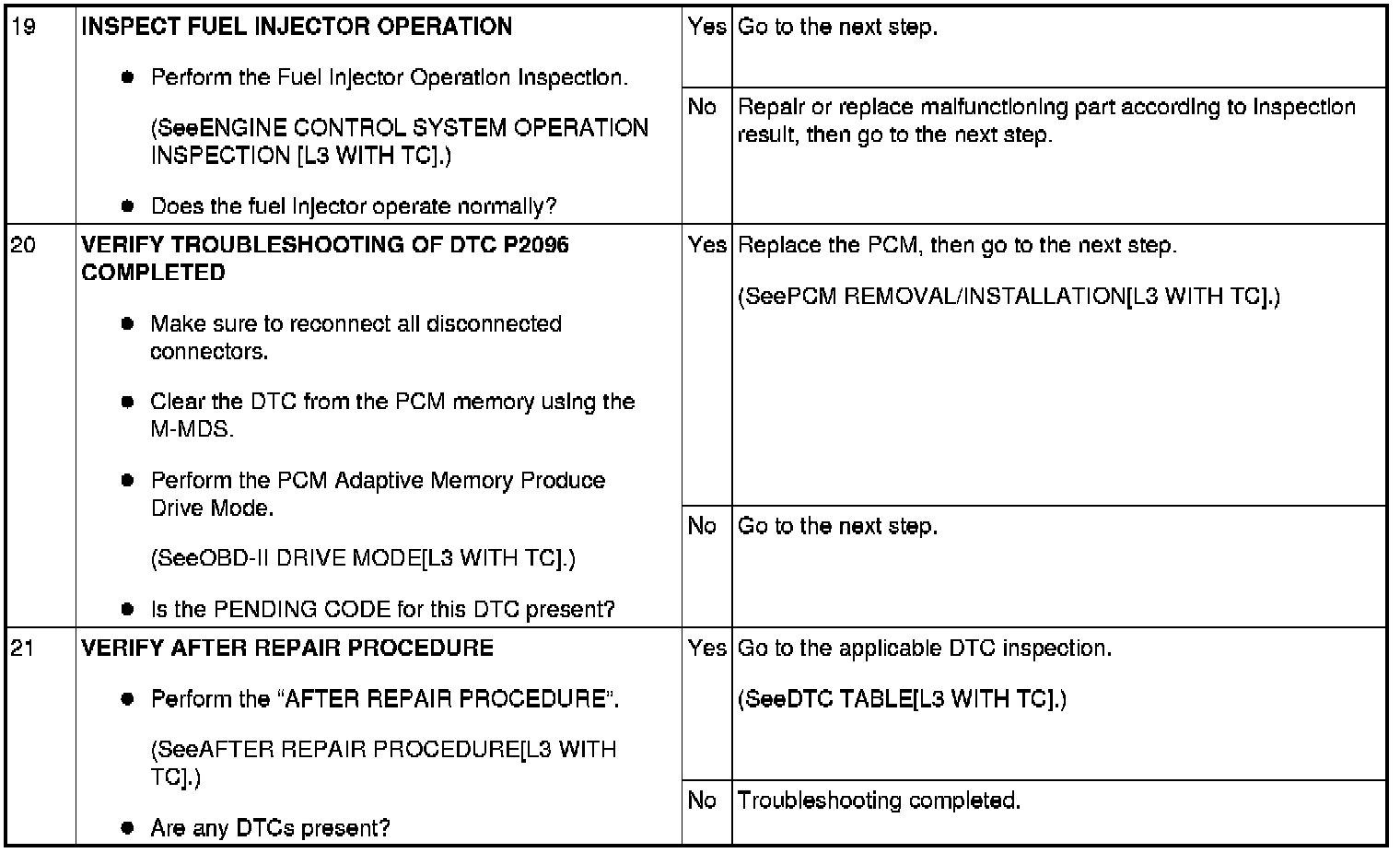

Step 19-Step 21:
