SECURITY LIGHT 11, DTC B1681/P1260 [IMMOBILIZER SYSTEM]

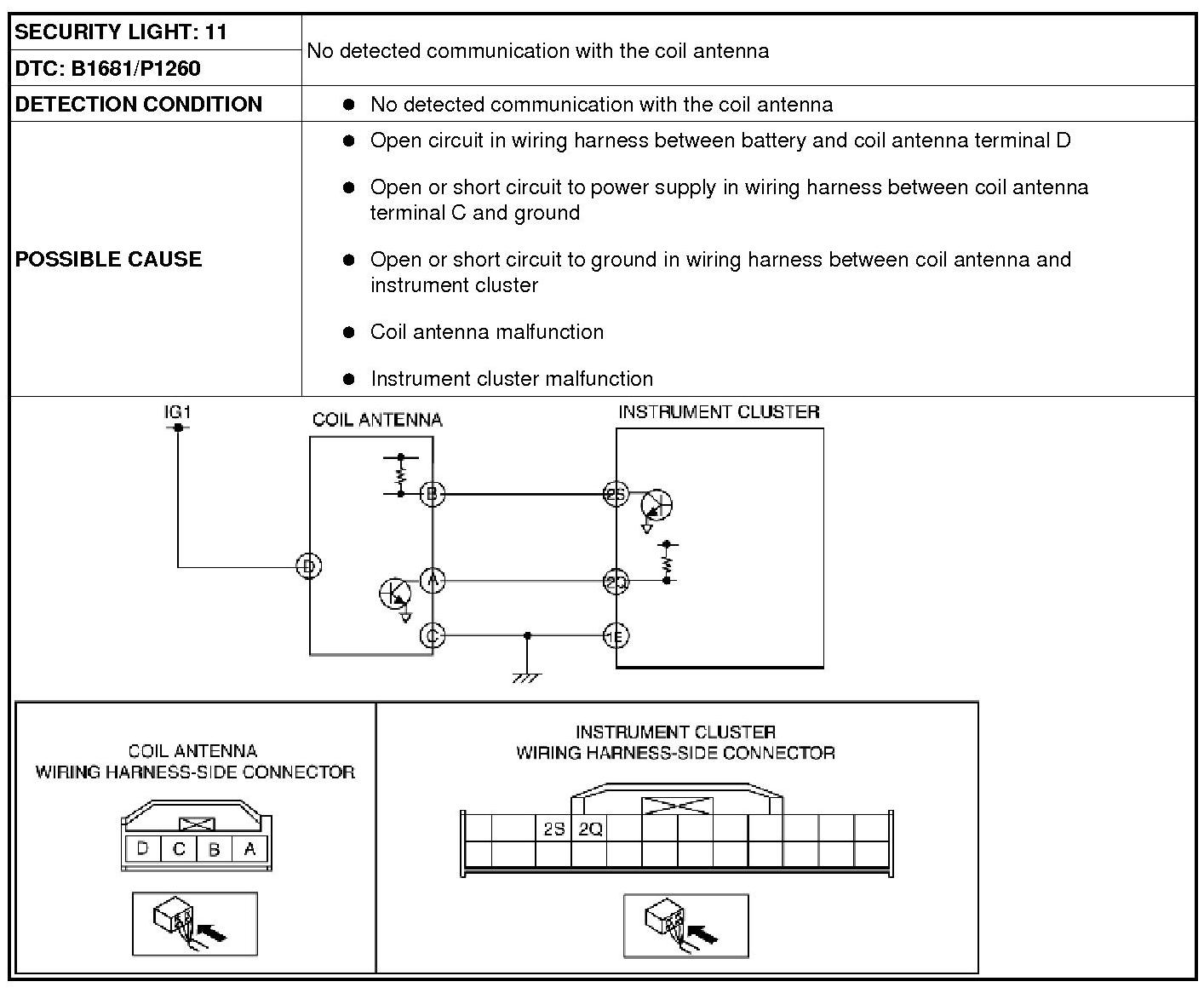

Detection Condition/Possible Cause:
Diagnostic Procedure

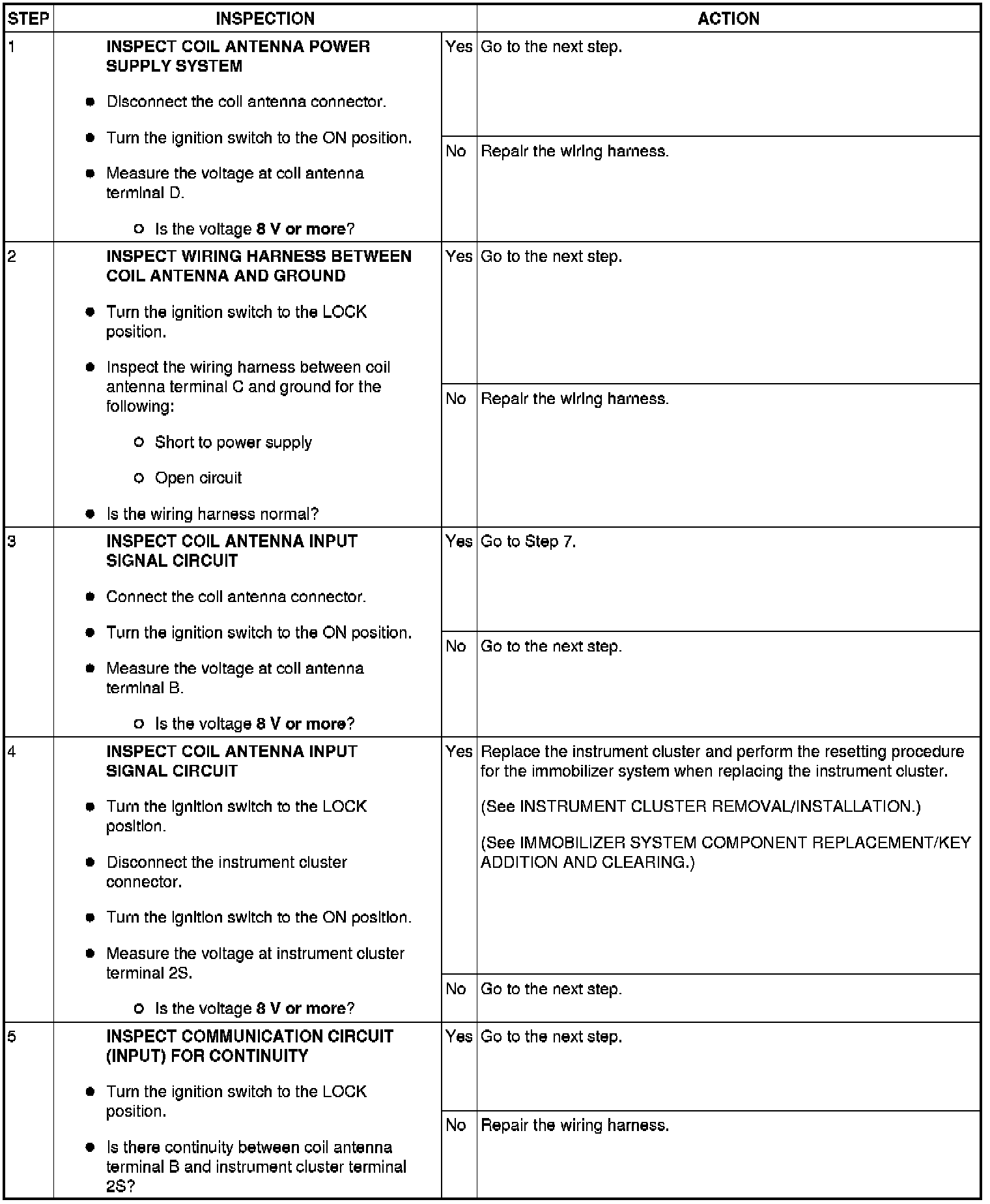

Step 1-Step 5:

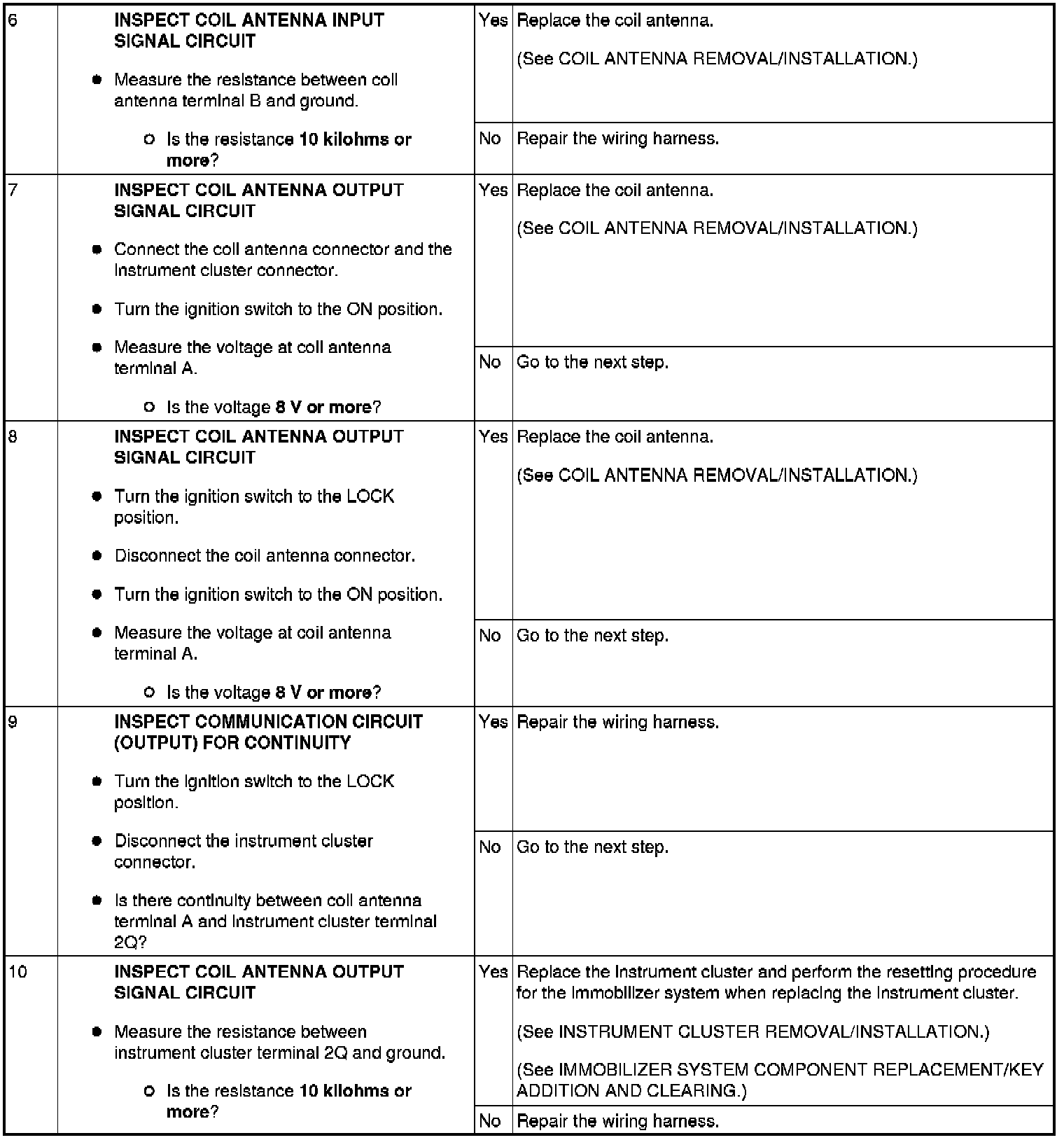

Step 6-Step 10:
