Engine on-Board Diagnostics

DTC P1260 [L3 WITH TC]

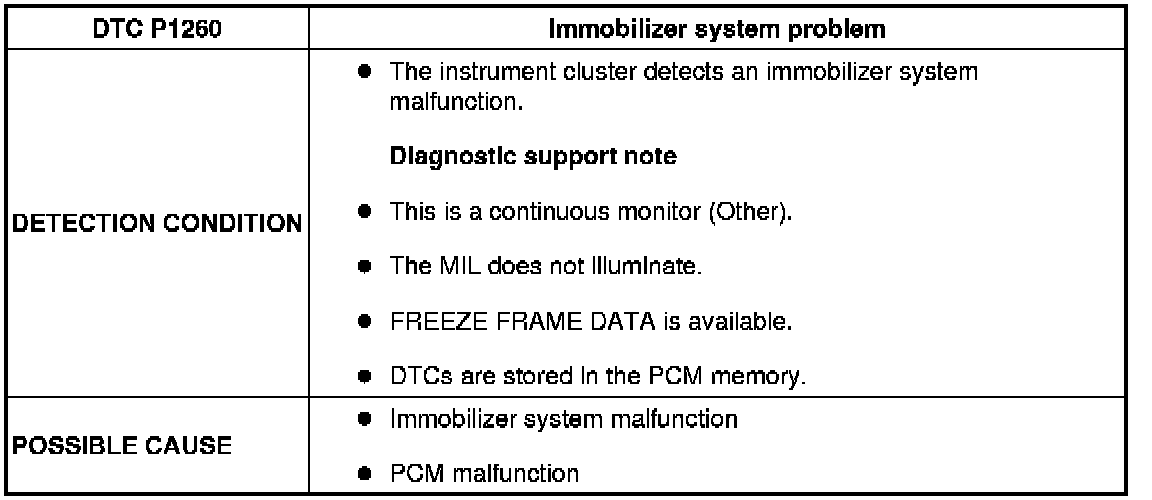

Detection Condition/Possible Cause:

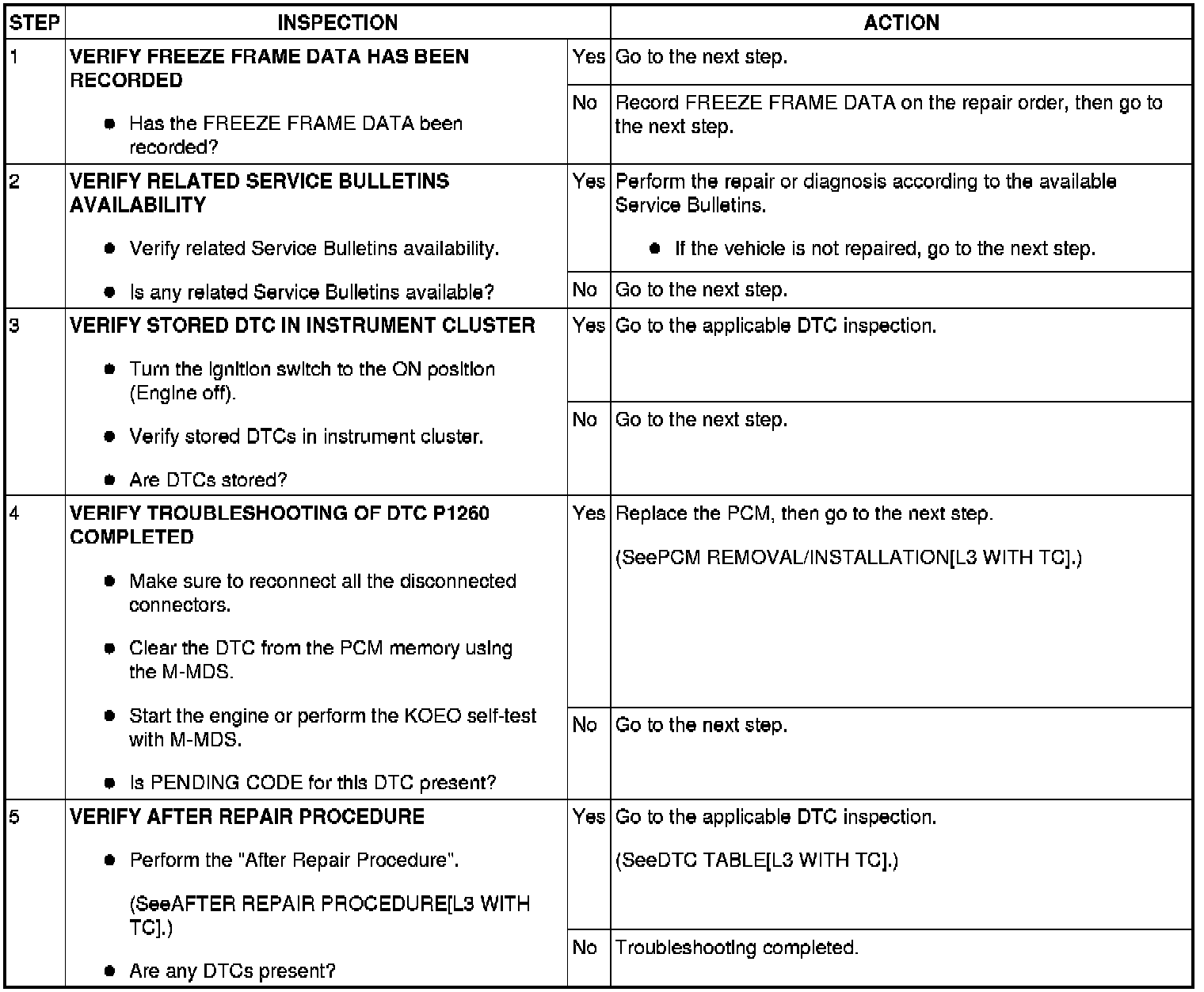

Diagnostic procedure

Step 1-Step 5:
