Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0778

P0778




DTC P0778 [FS5A-EL]

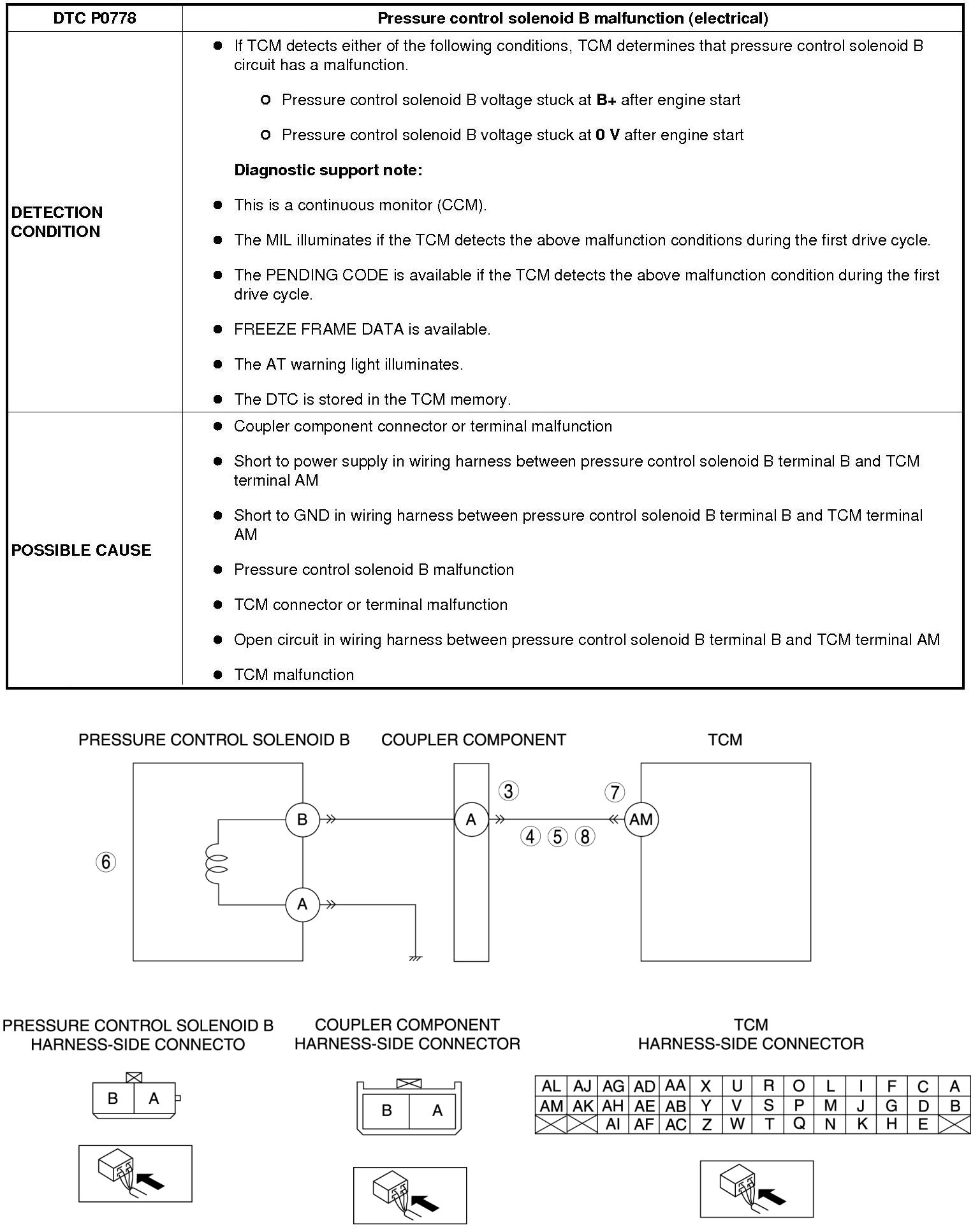

Detection Condition/Possible Cause:





Diagnostic procedure

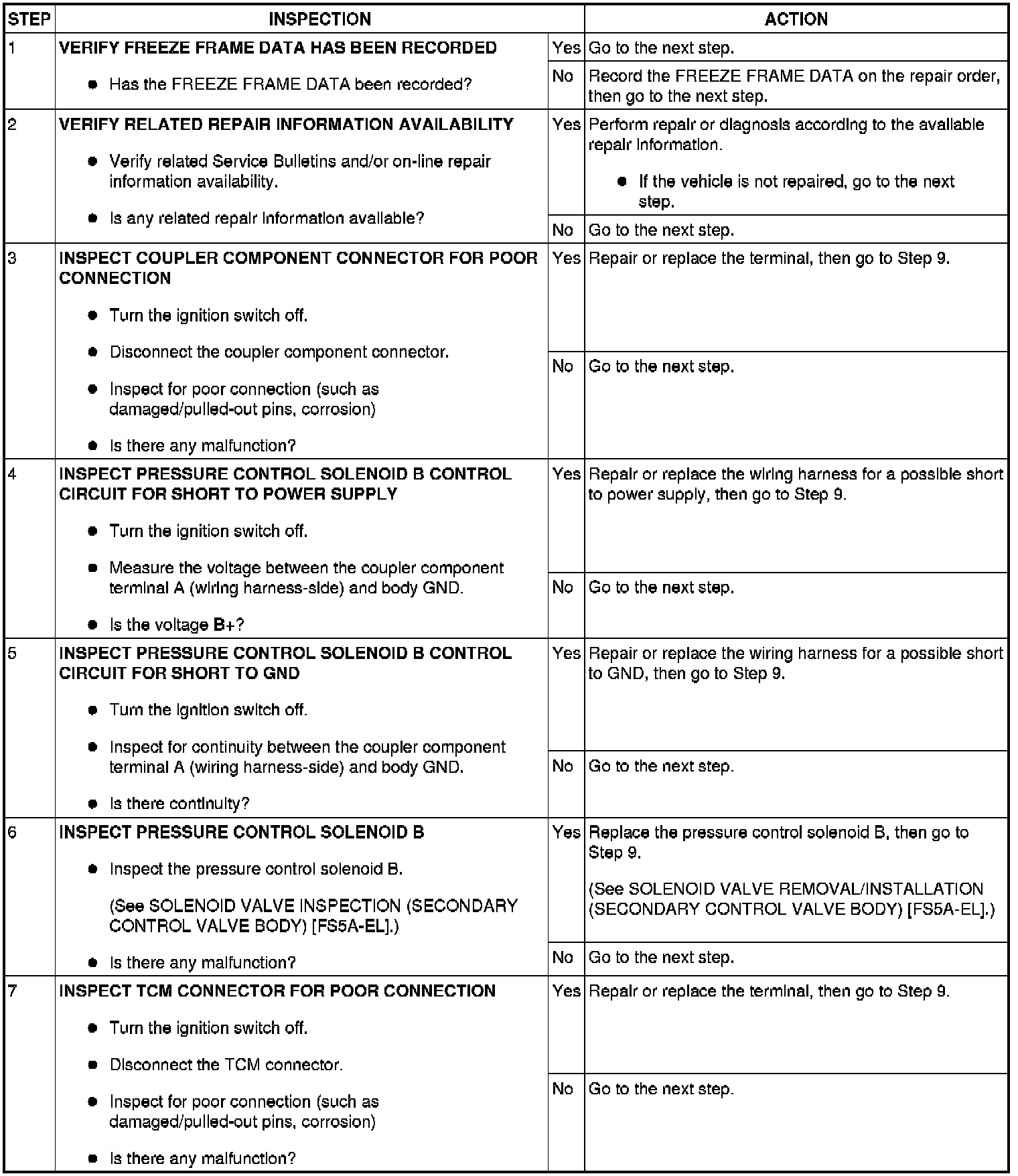

Step 1-Step 7:

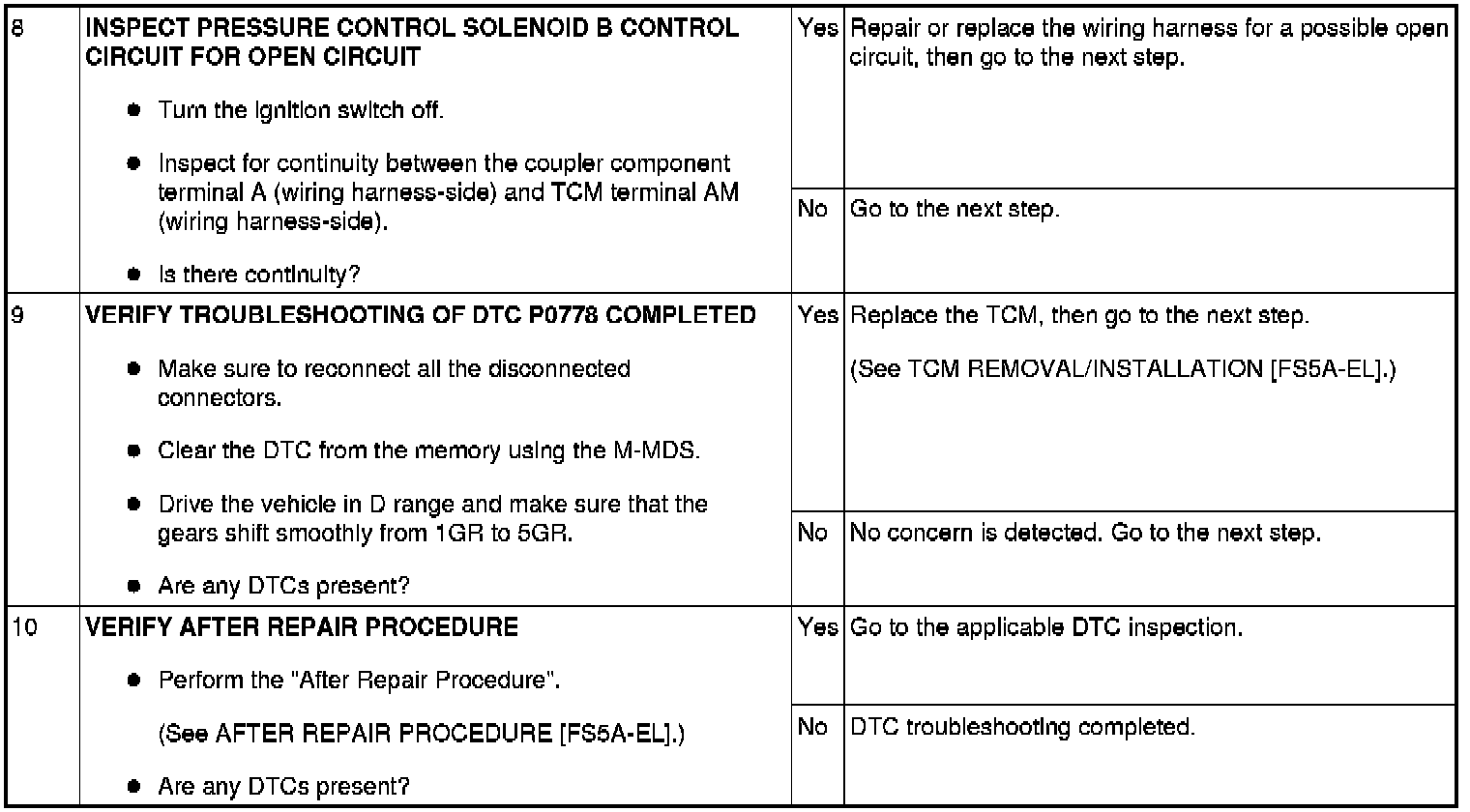

Step 8-Step 10:
