FS5A-EL Transmission




DTC P0734 [FS5A-EL]

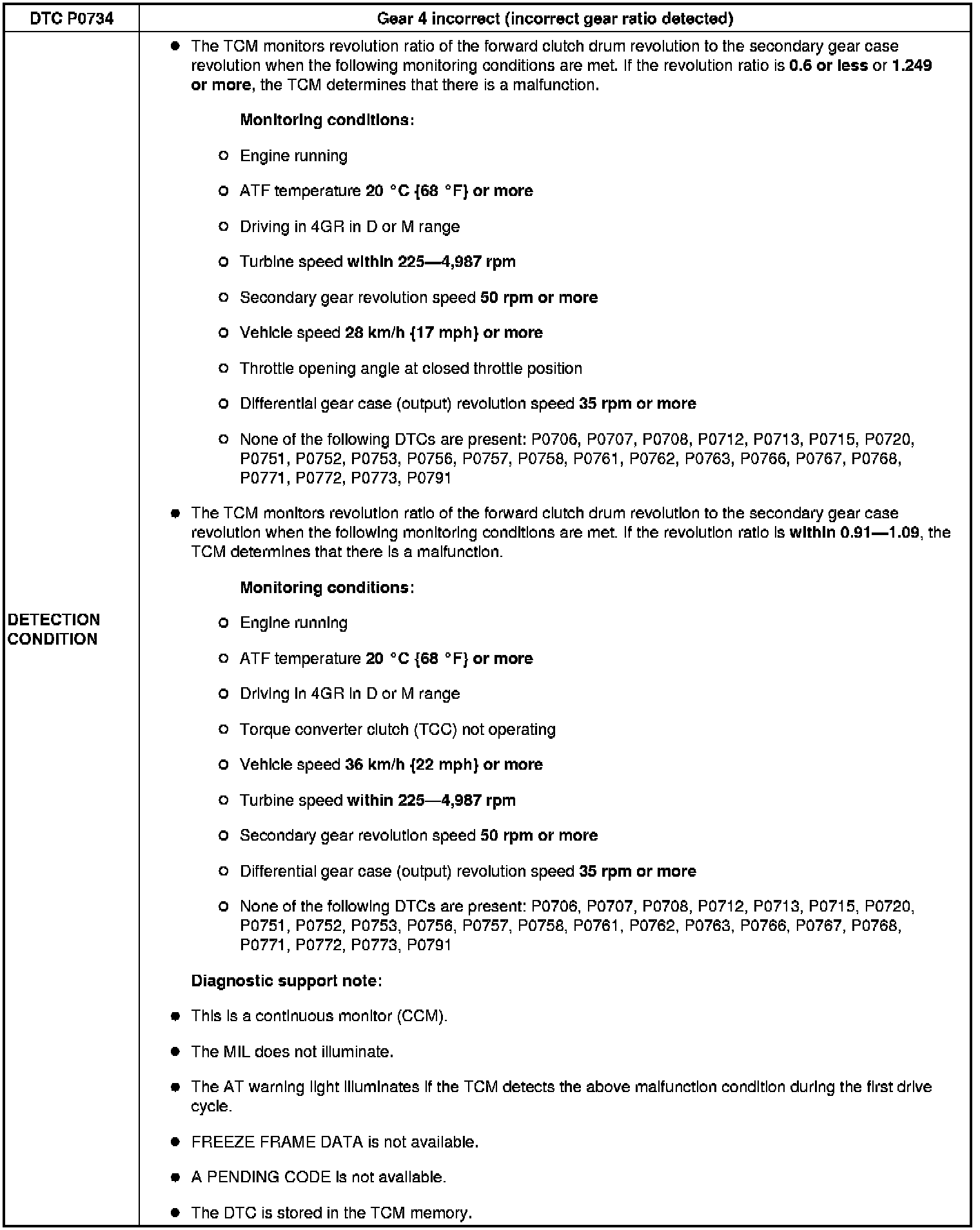

Detection Condition:

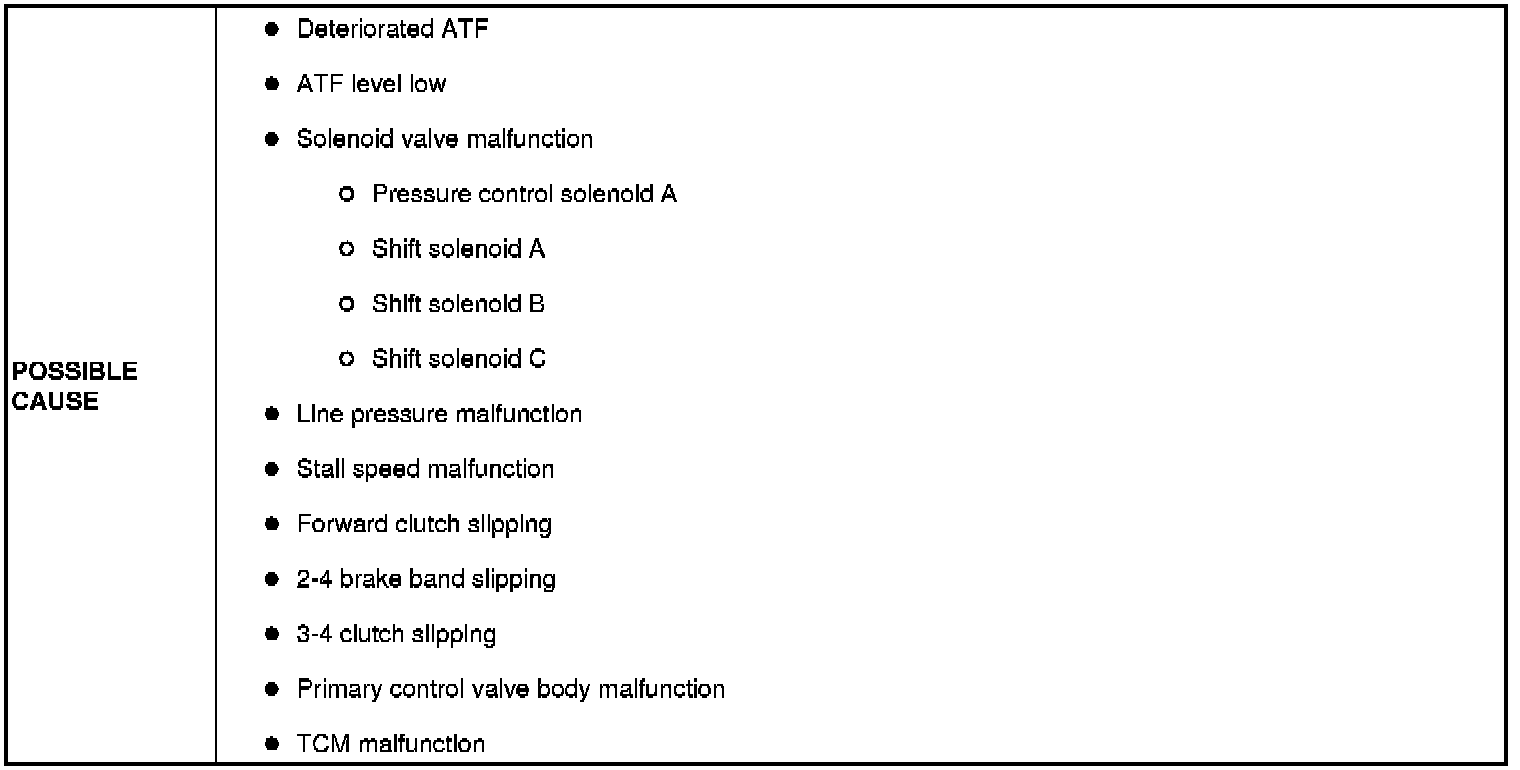

Possible Cause:






Diagnostic procedure

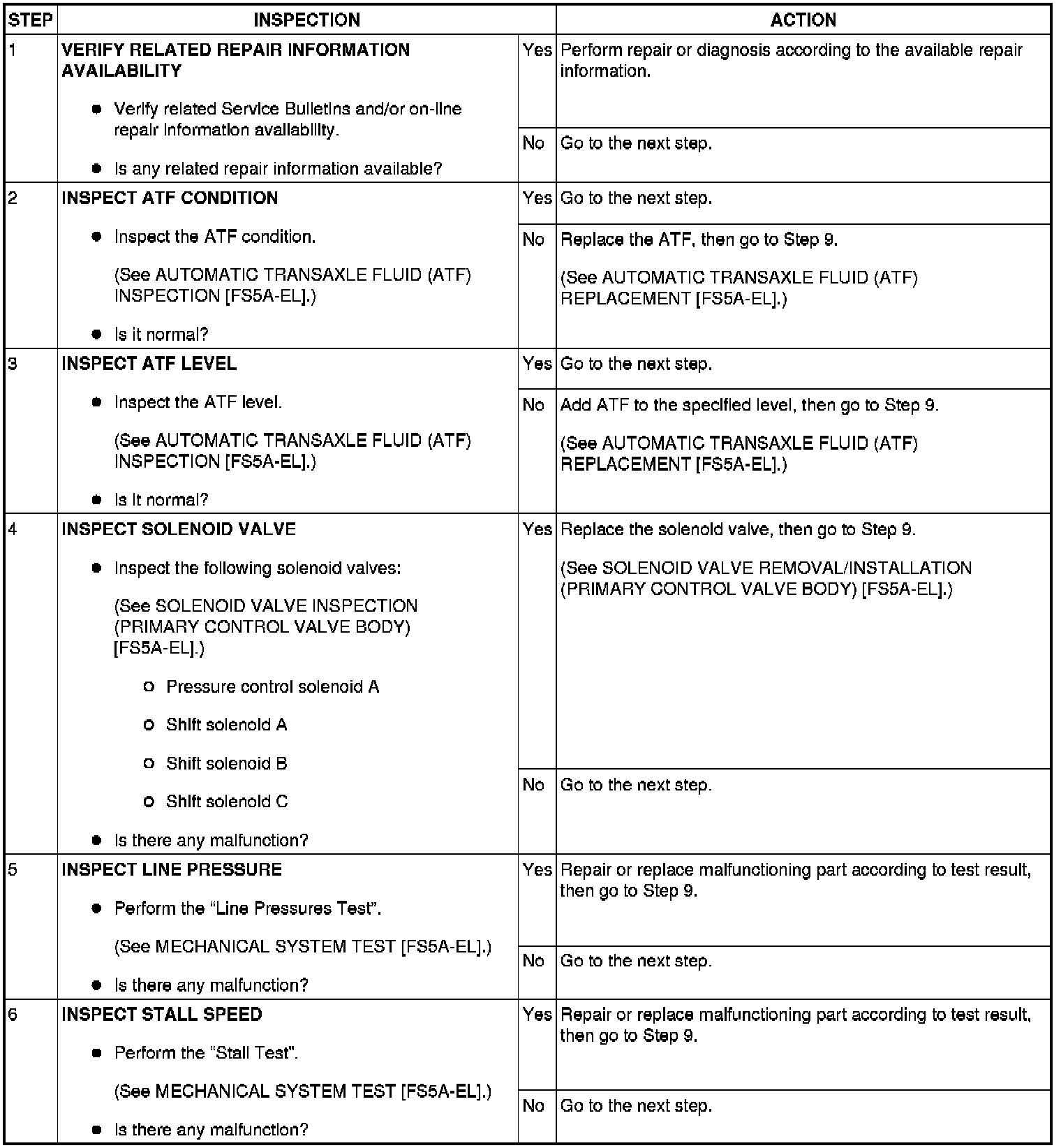

Step 1-Step 6:

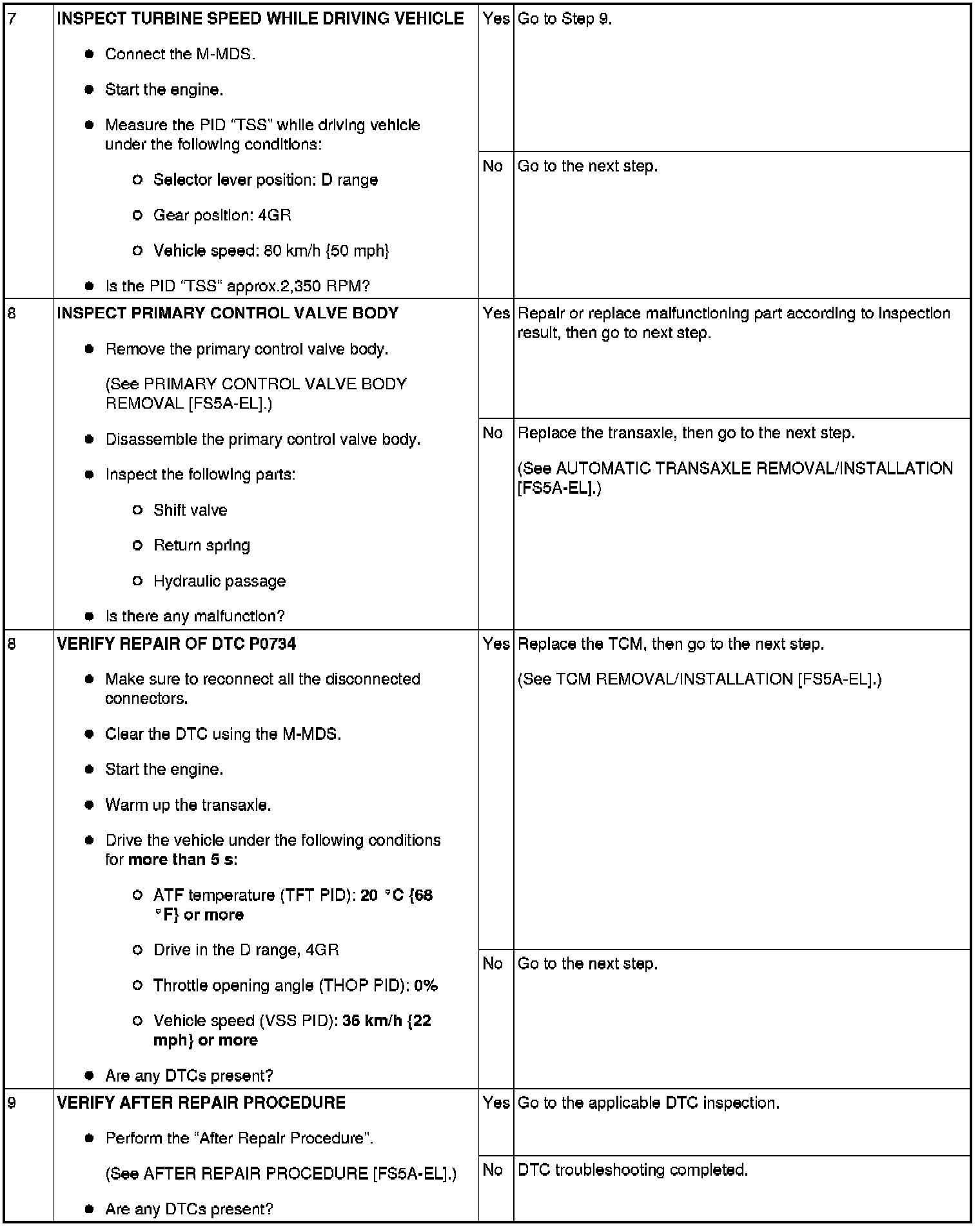

Step 7-Step 9:
