P0340




DTC P0340 [L3 WITH TC]

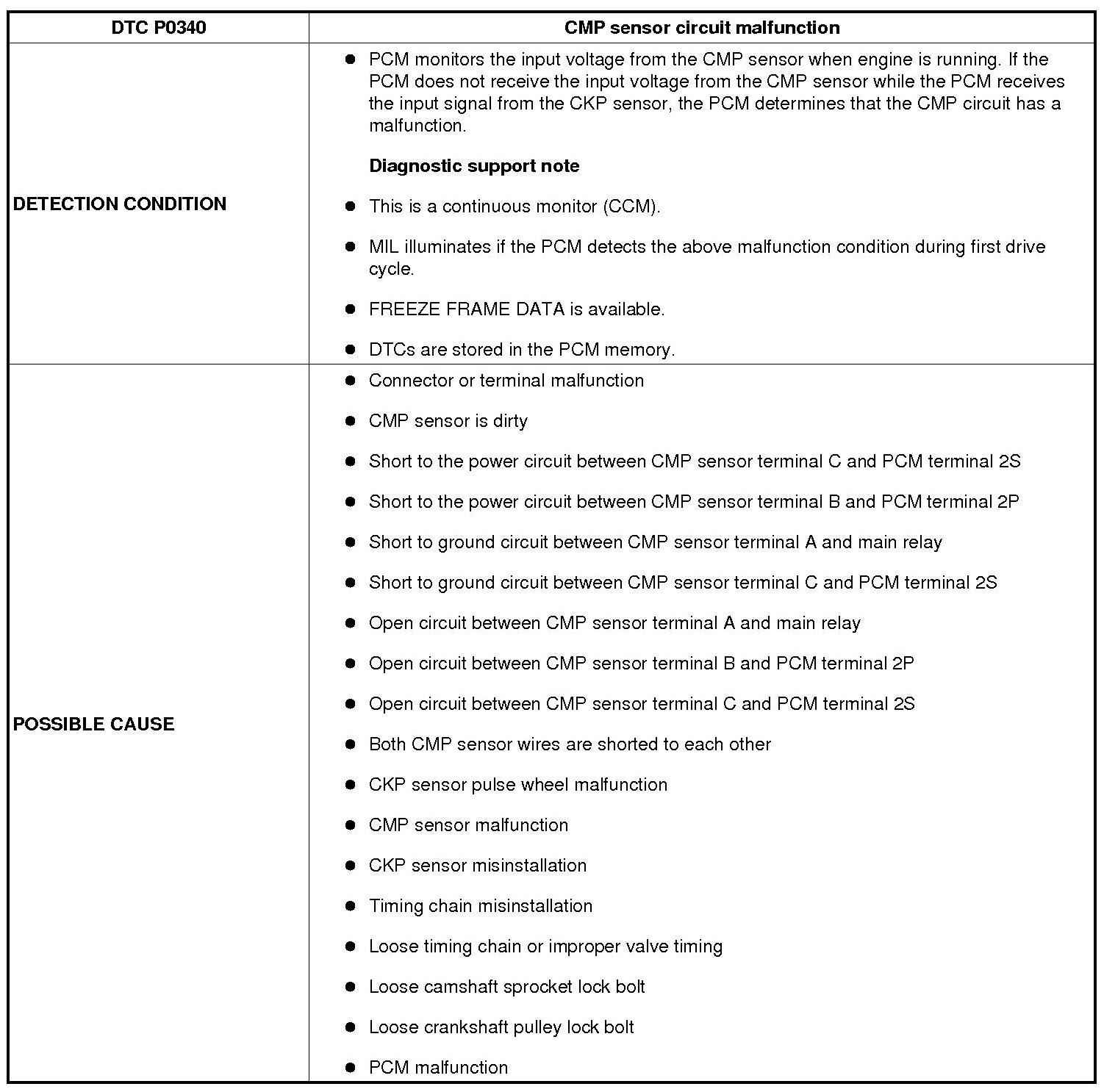

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):

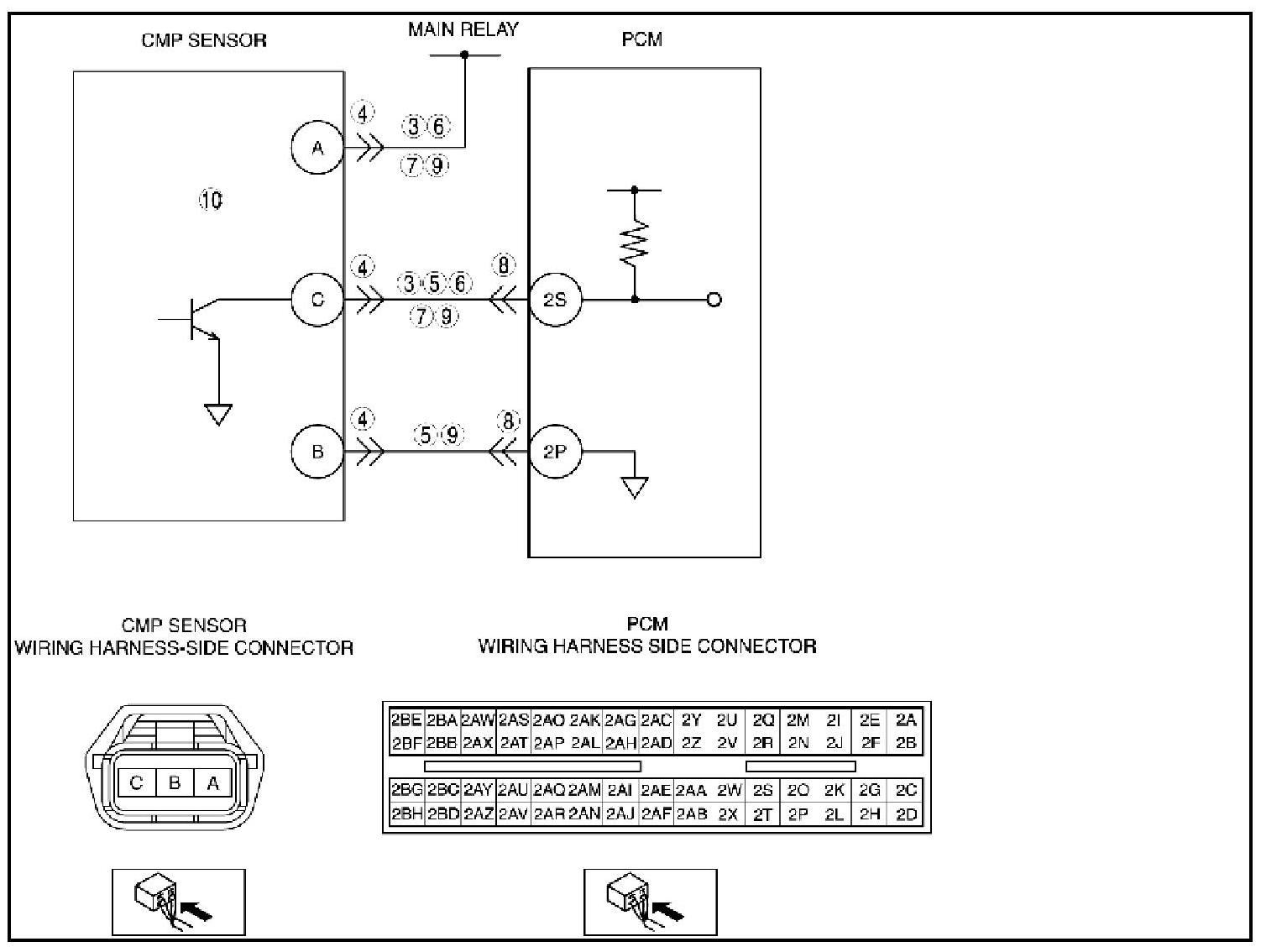

Diagnostic procedure

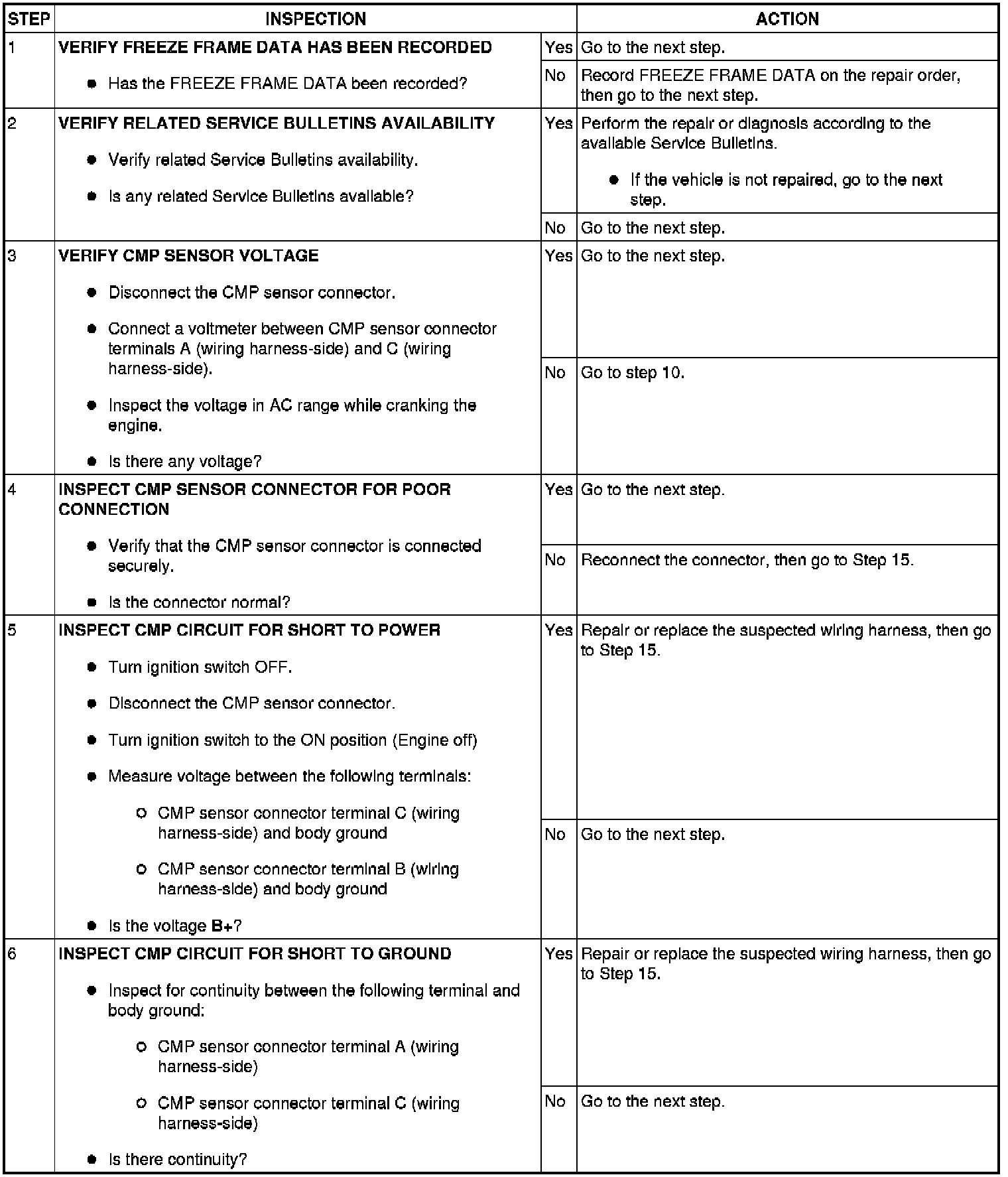

Step 1-Step 6:

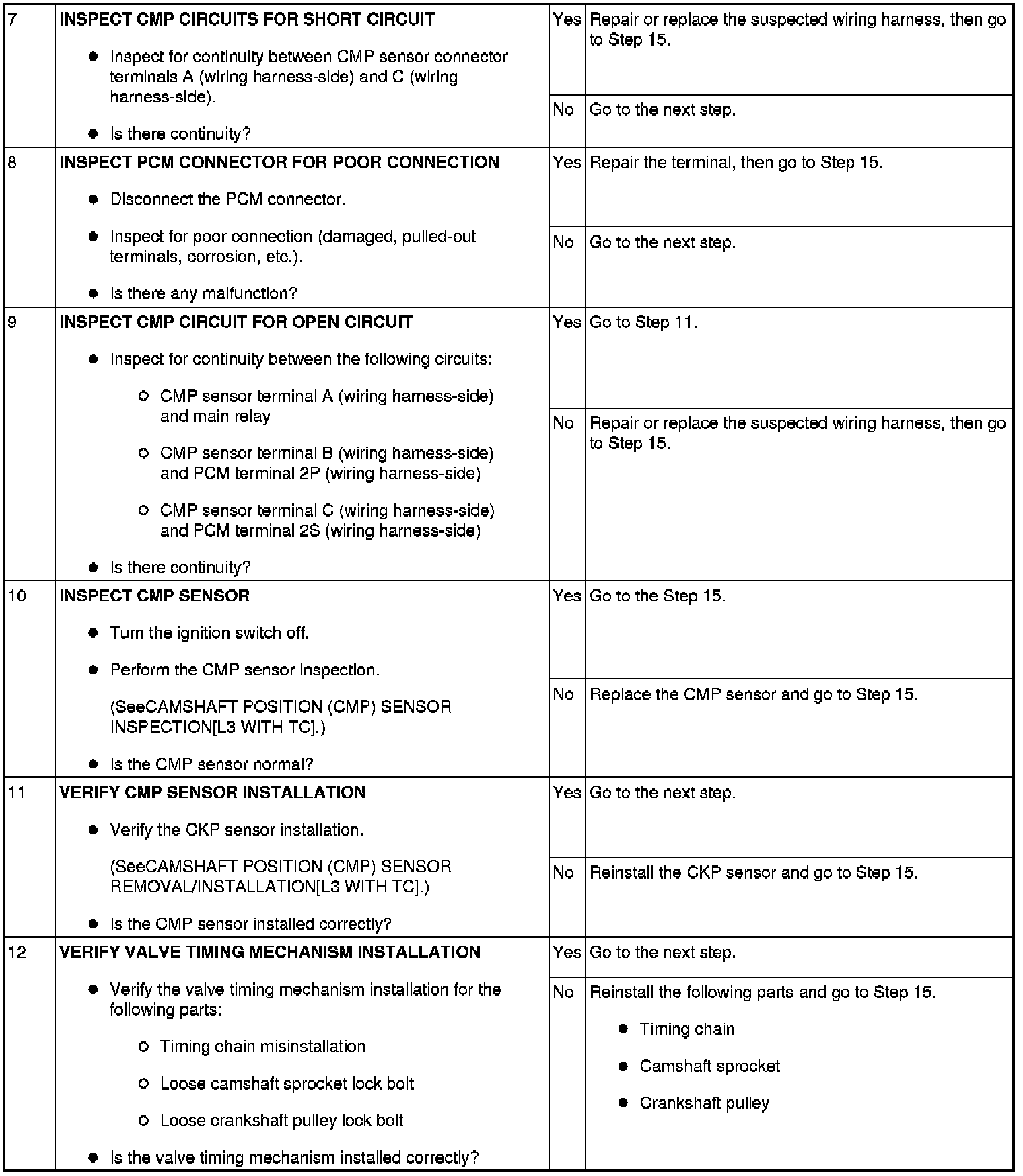

Step 7-Step 12:

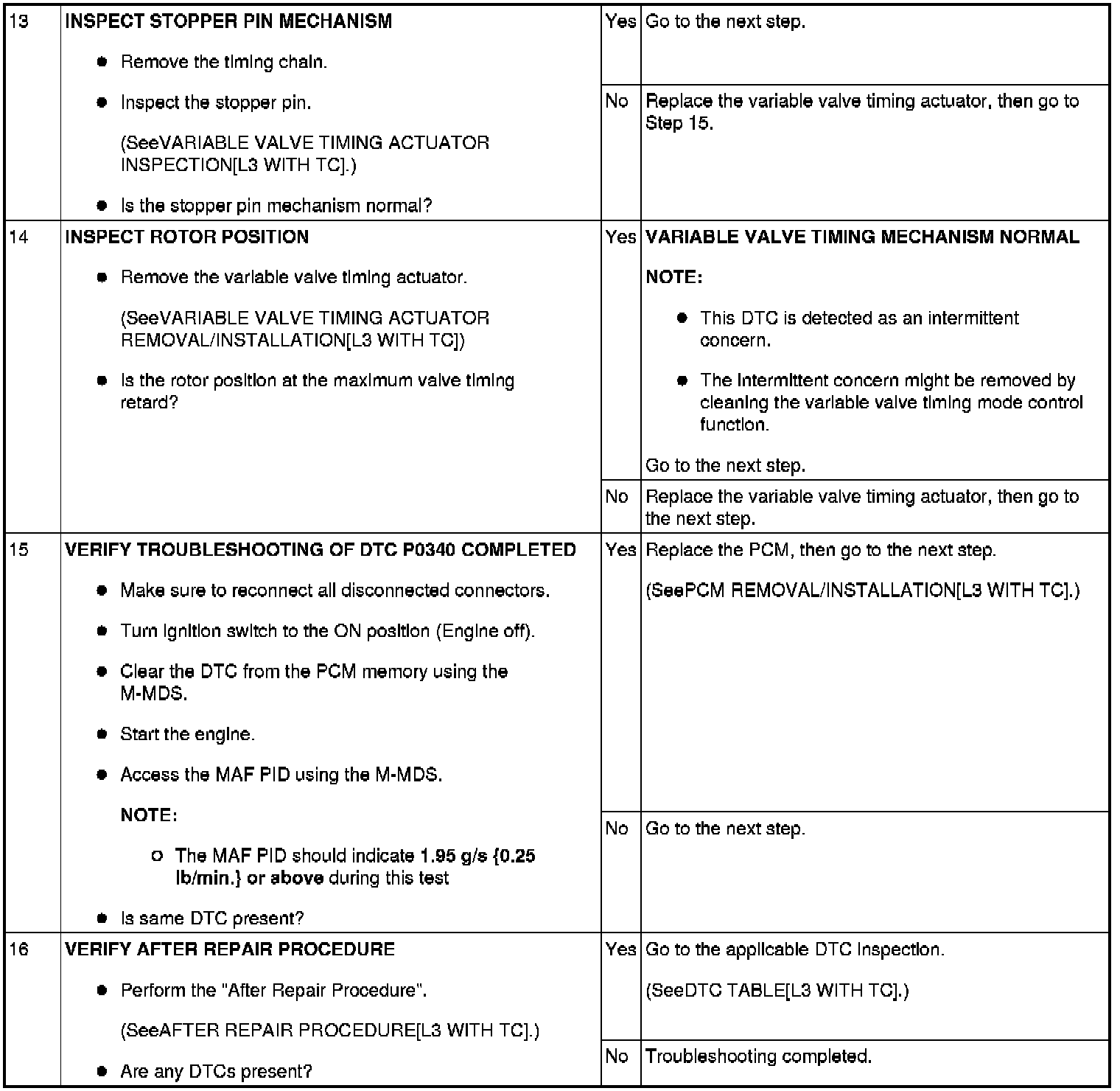

Step 13-Step 16:
