P0133
P0133
DTC P0133 [L3 WITH TC]

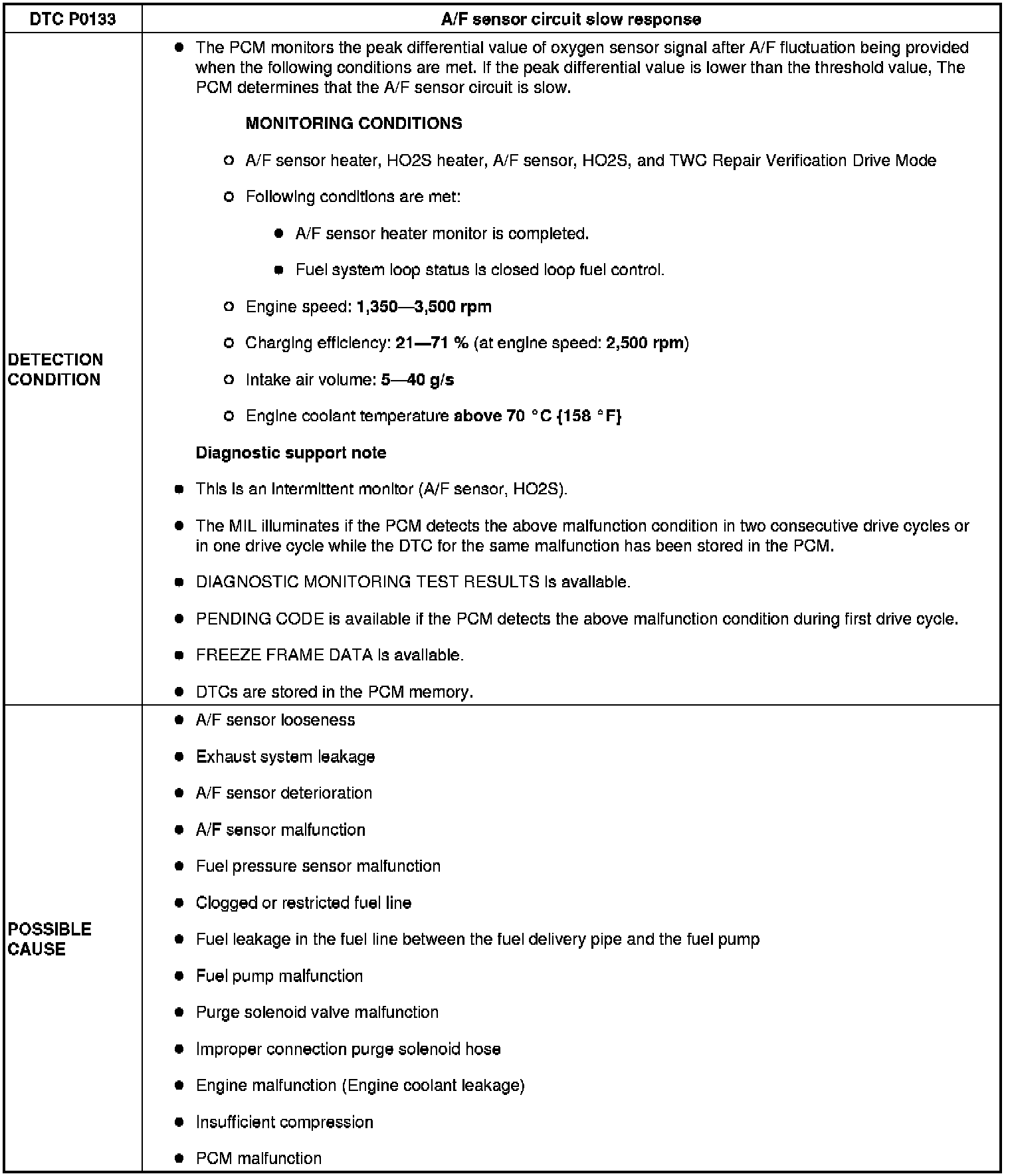

Detection Condition/Possible Cause:
Diagnostic procedure

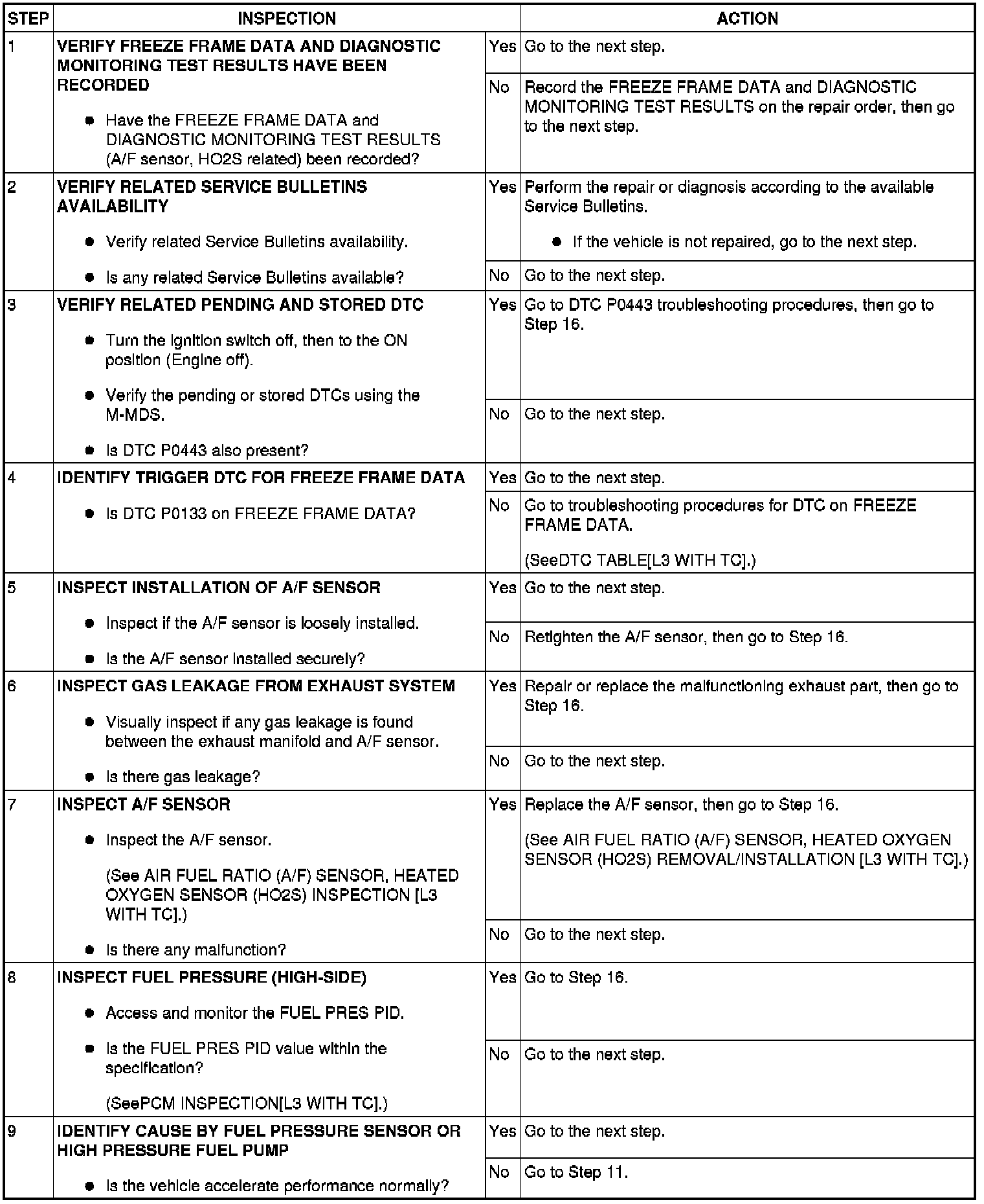

Step 1-Step 9:

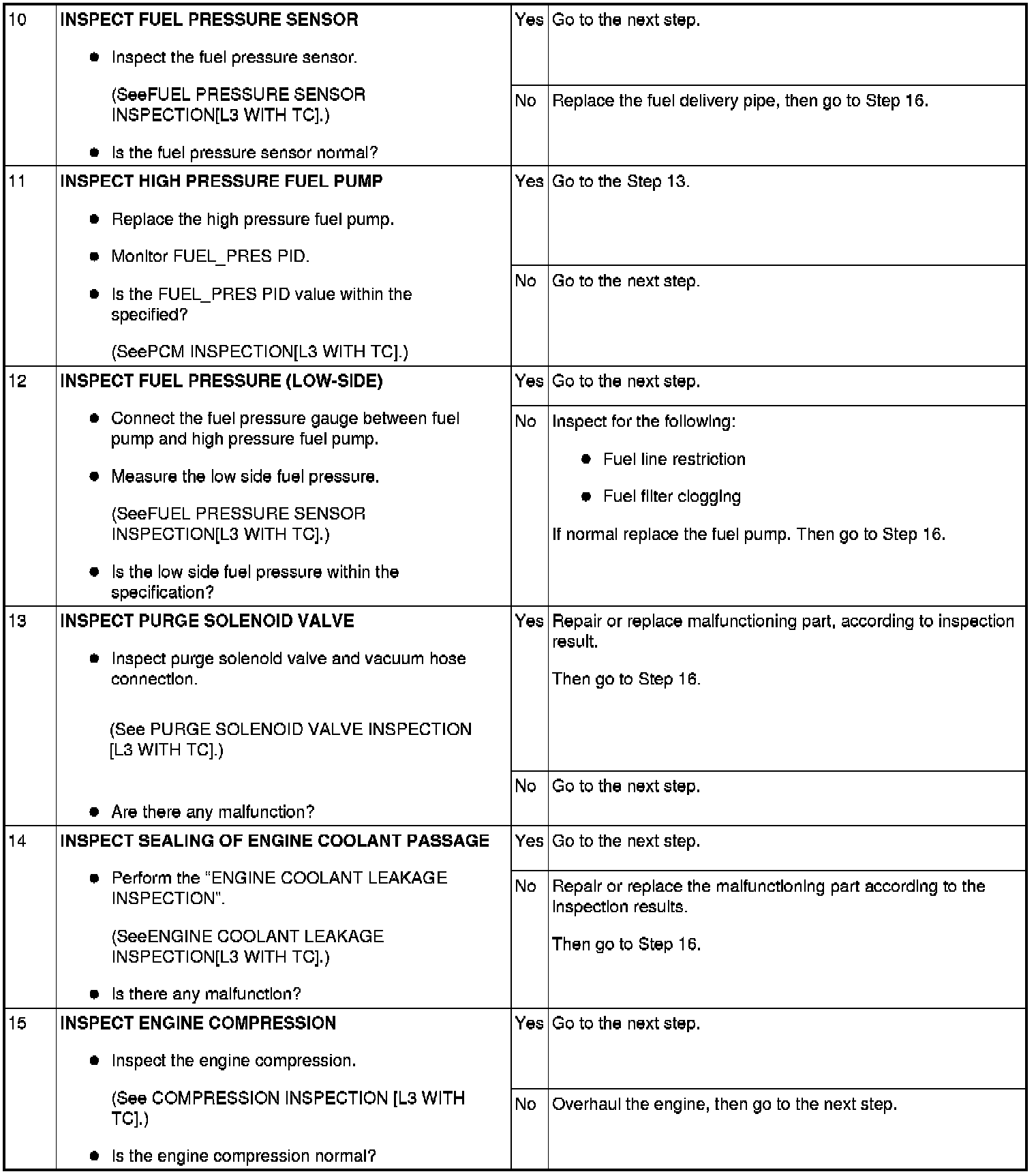

Step 10-Step 15:

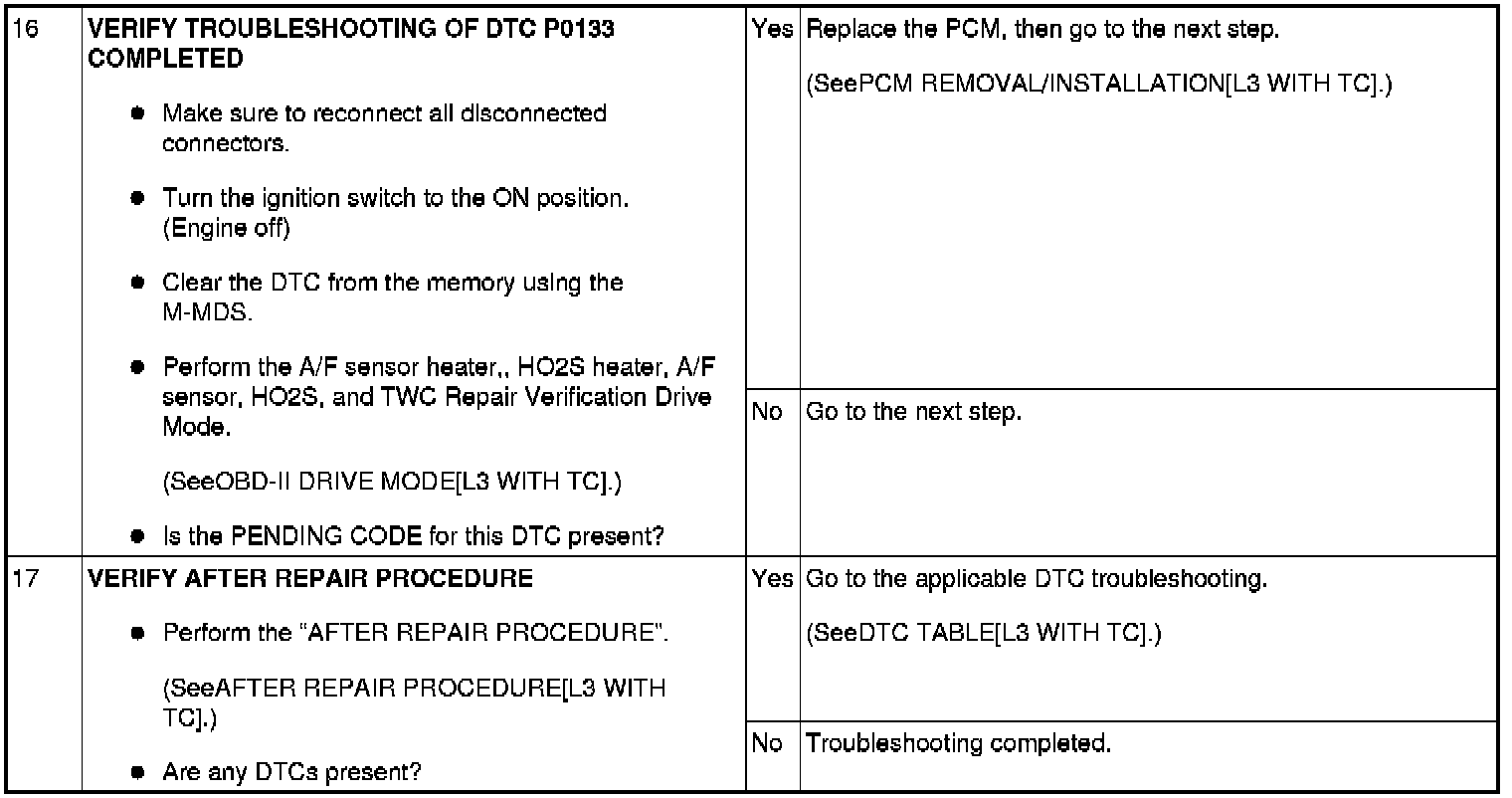

Step 16-Step 17:
