P0128
P0128
DTC P0126, P0128 [L3 WITH TC]

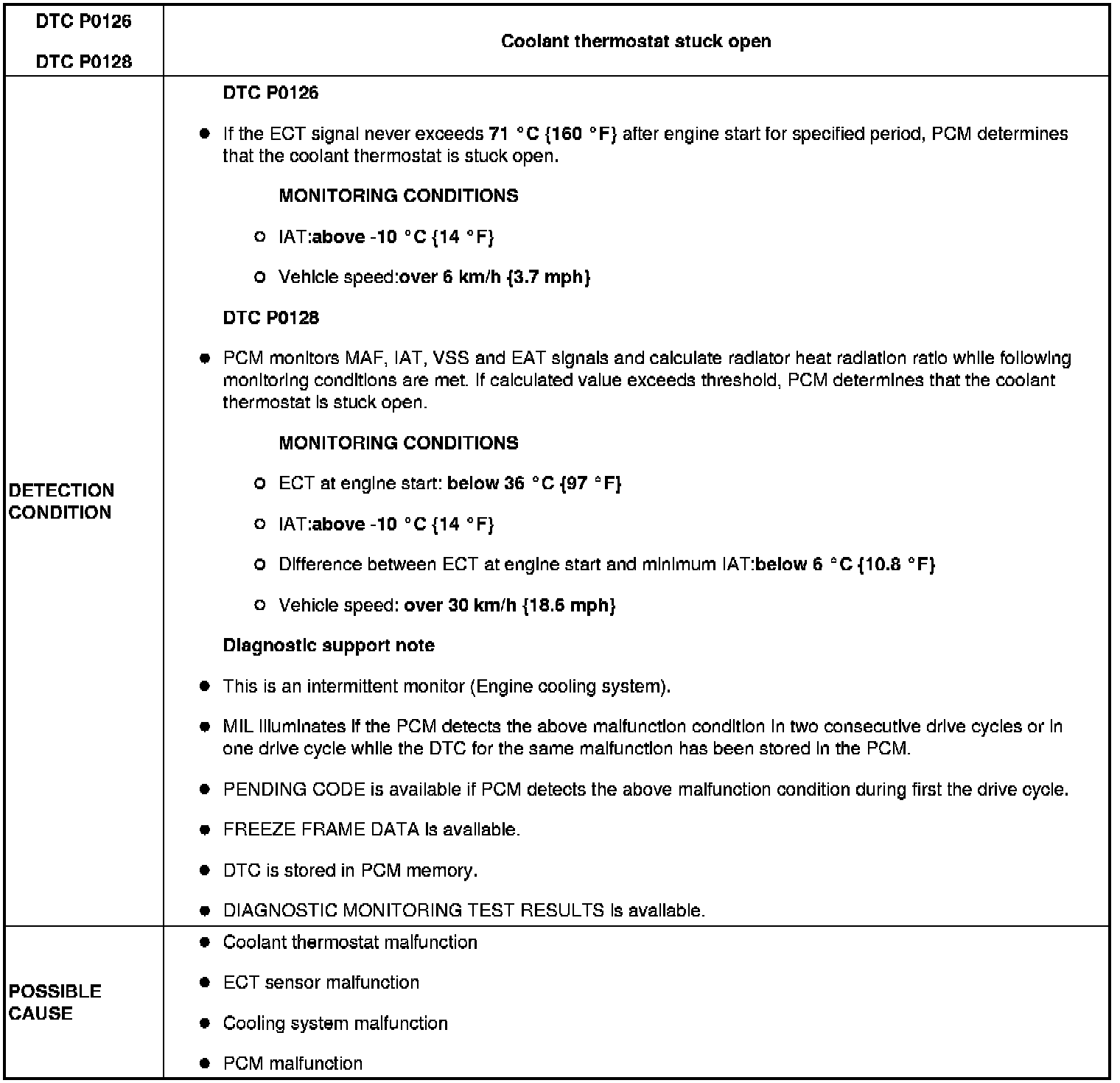

Detection Condition/Possible Cause:
Diagnostic procedure

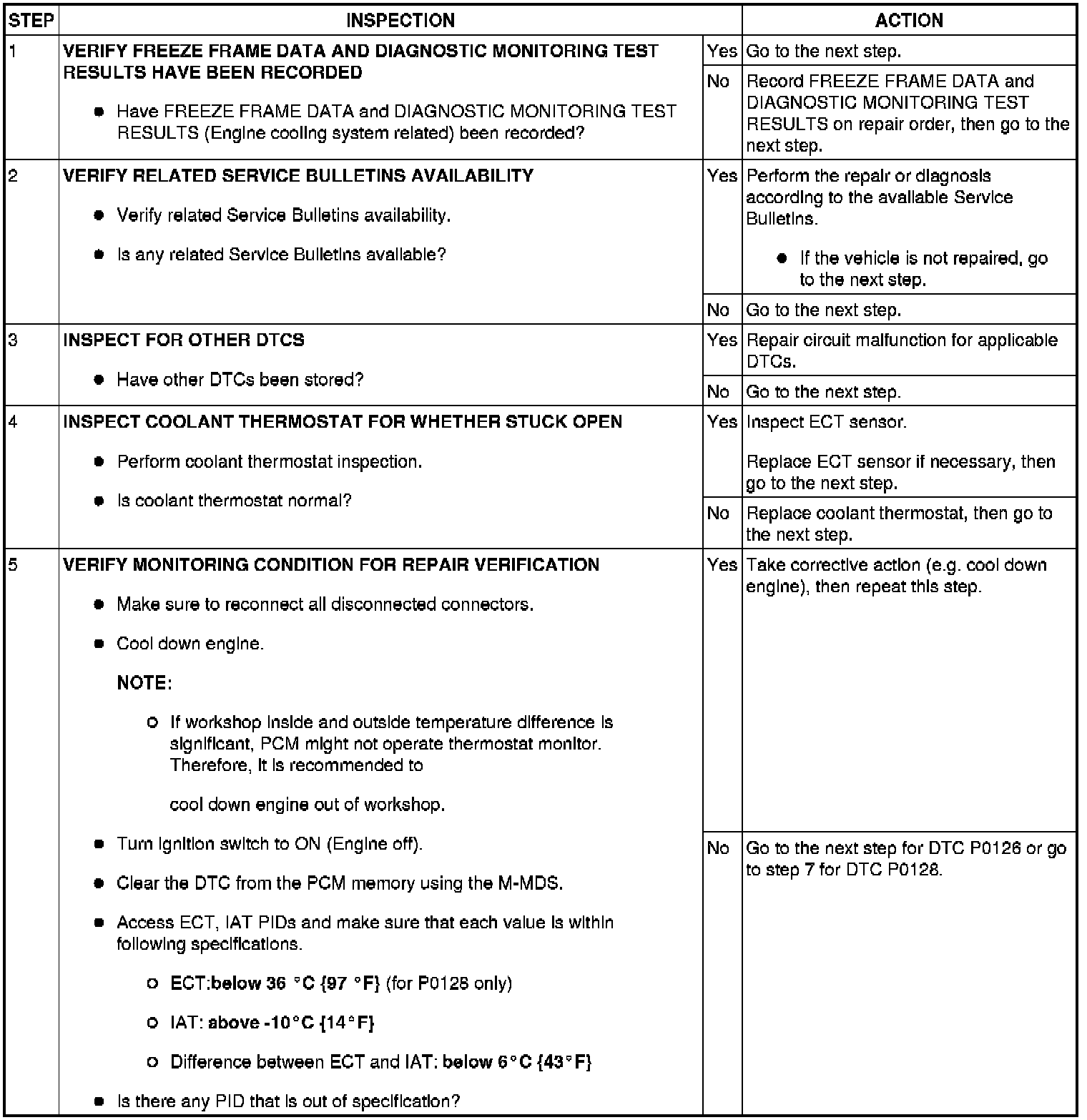

Step 1-Step 5:

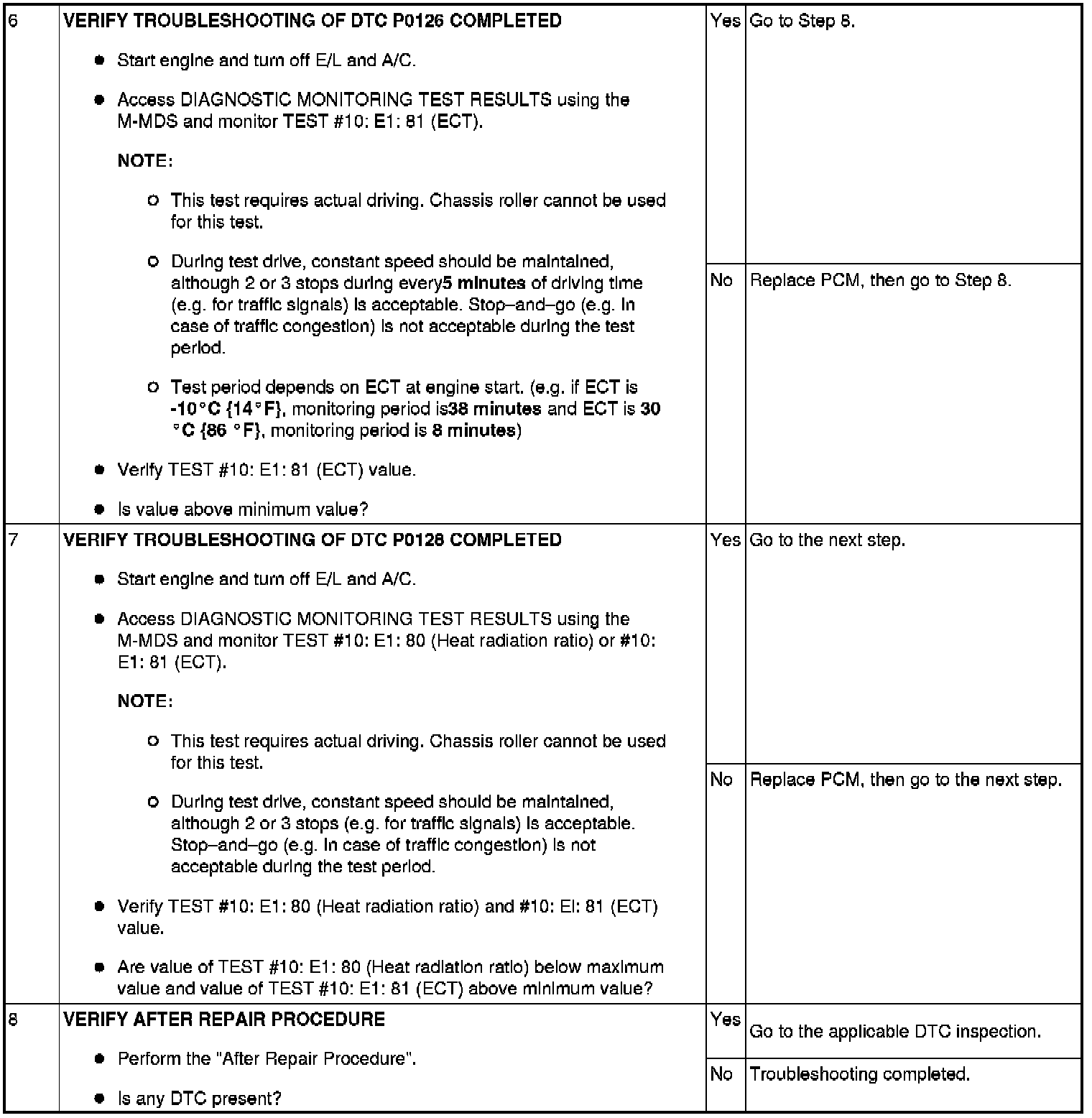

Step 6-Step 8:
