DTC 09:ER22
>>
Radio
>>
No.4 Cannot Tune (Seek Does Not Stop)
No.4 Cannot Tune (Seek Does Not Stop)
NO.4 CANNOT TUNE (SEEK DOES NOT STOP) [RADIO]

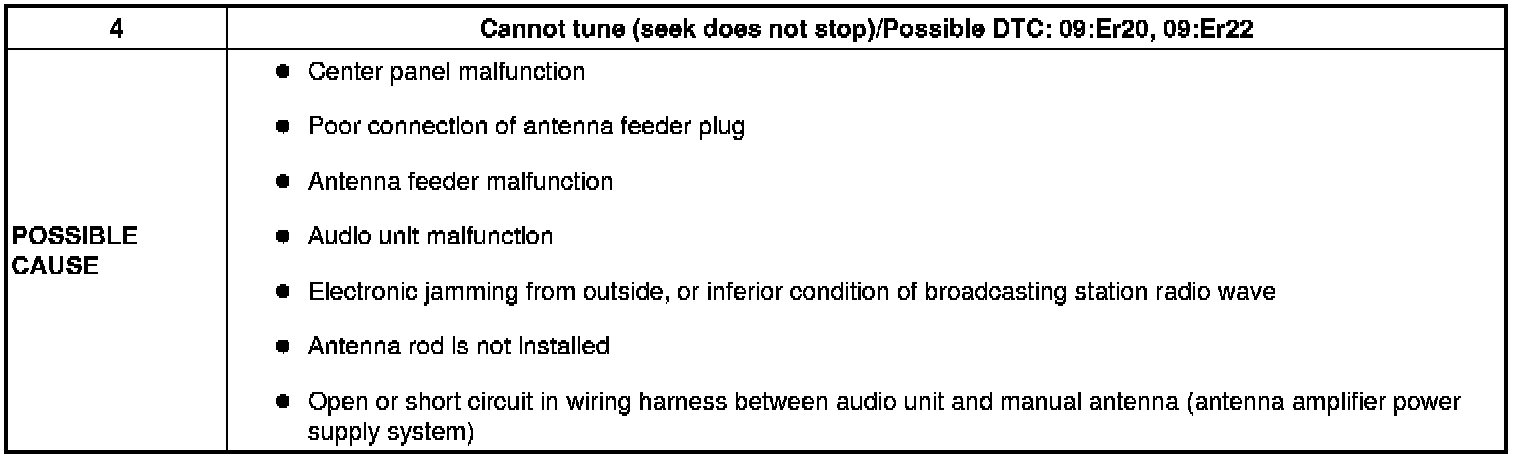

Possible Cause:
Diagnostic procedure

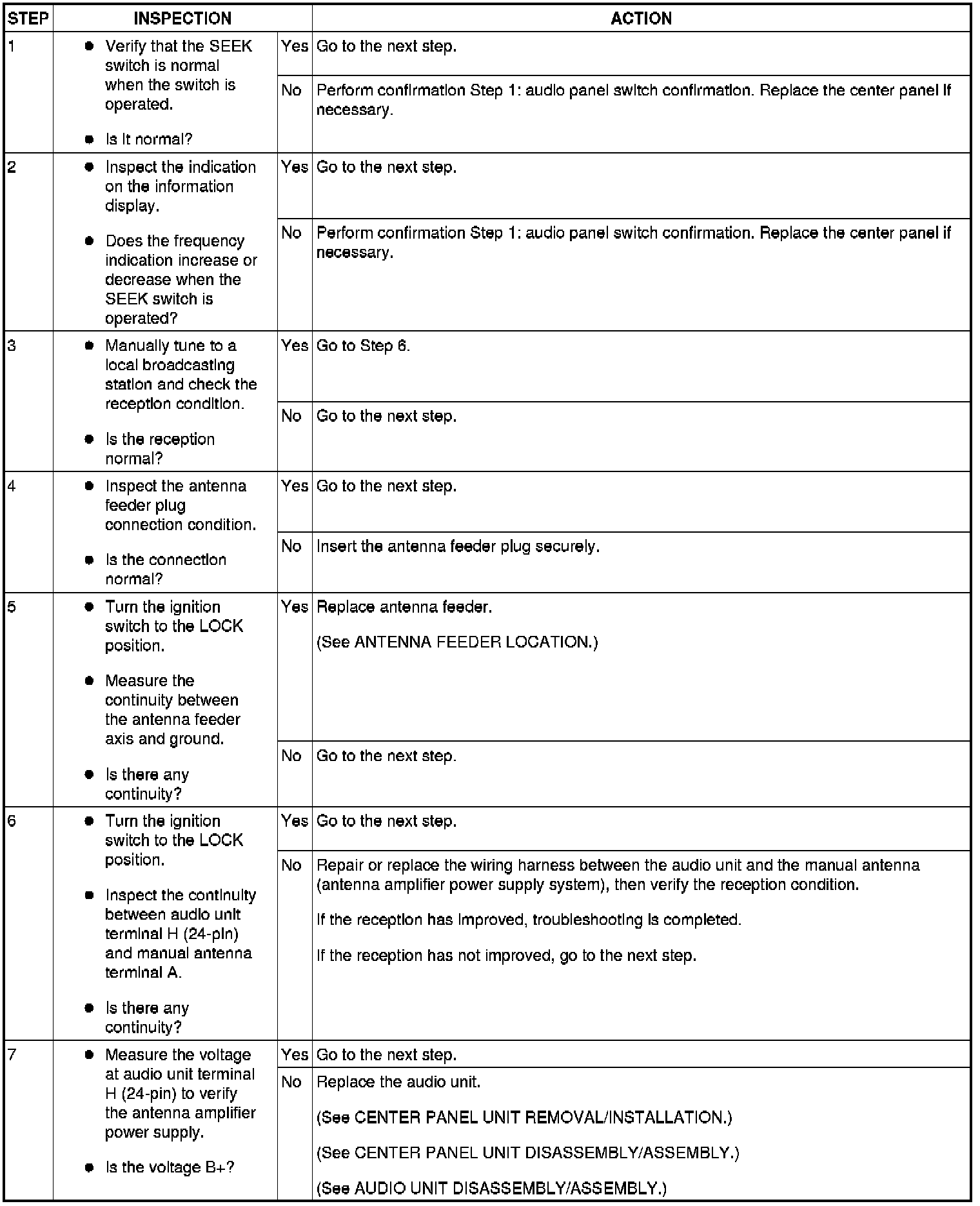

Step 1-Step 7:

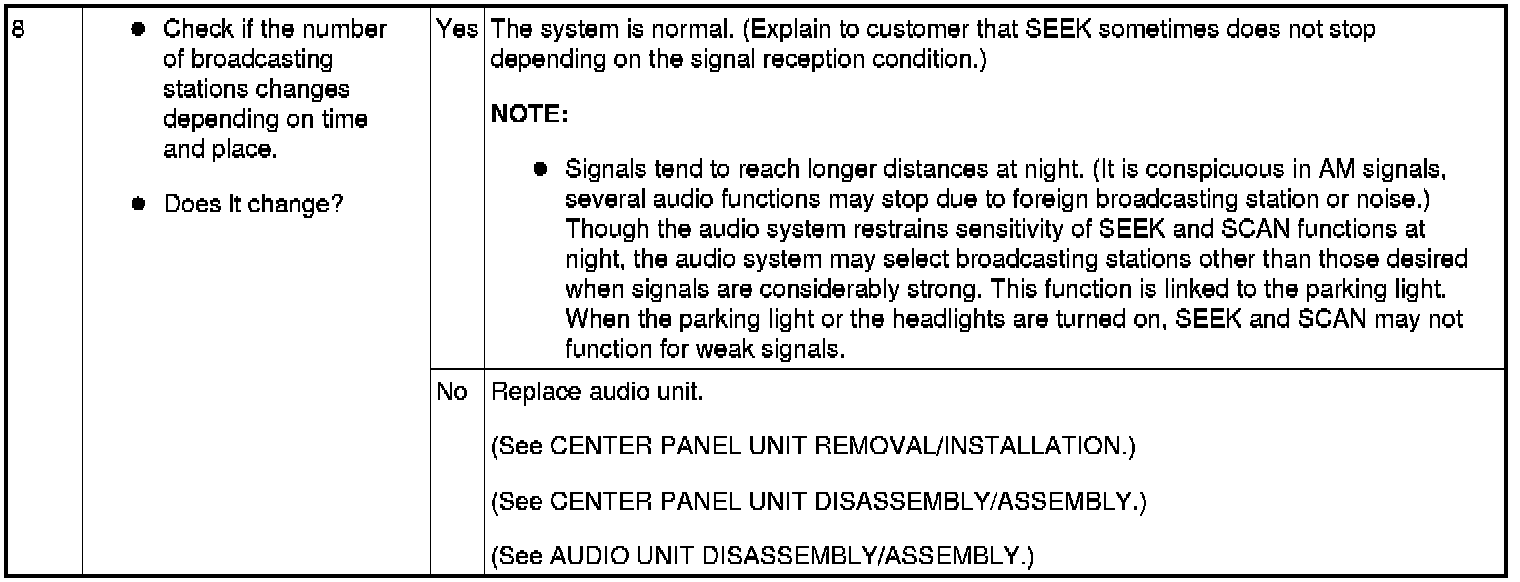

Step 8:
