No.3 Noise From Radio (FM Only)
No.3 Noise From Radio (FM Only)
NO.3 NOISE FROM RADIO (FM ONLY) [RADIO]
Possible Cause:
Diagnostic procedure

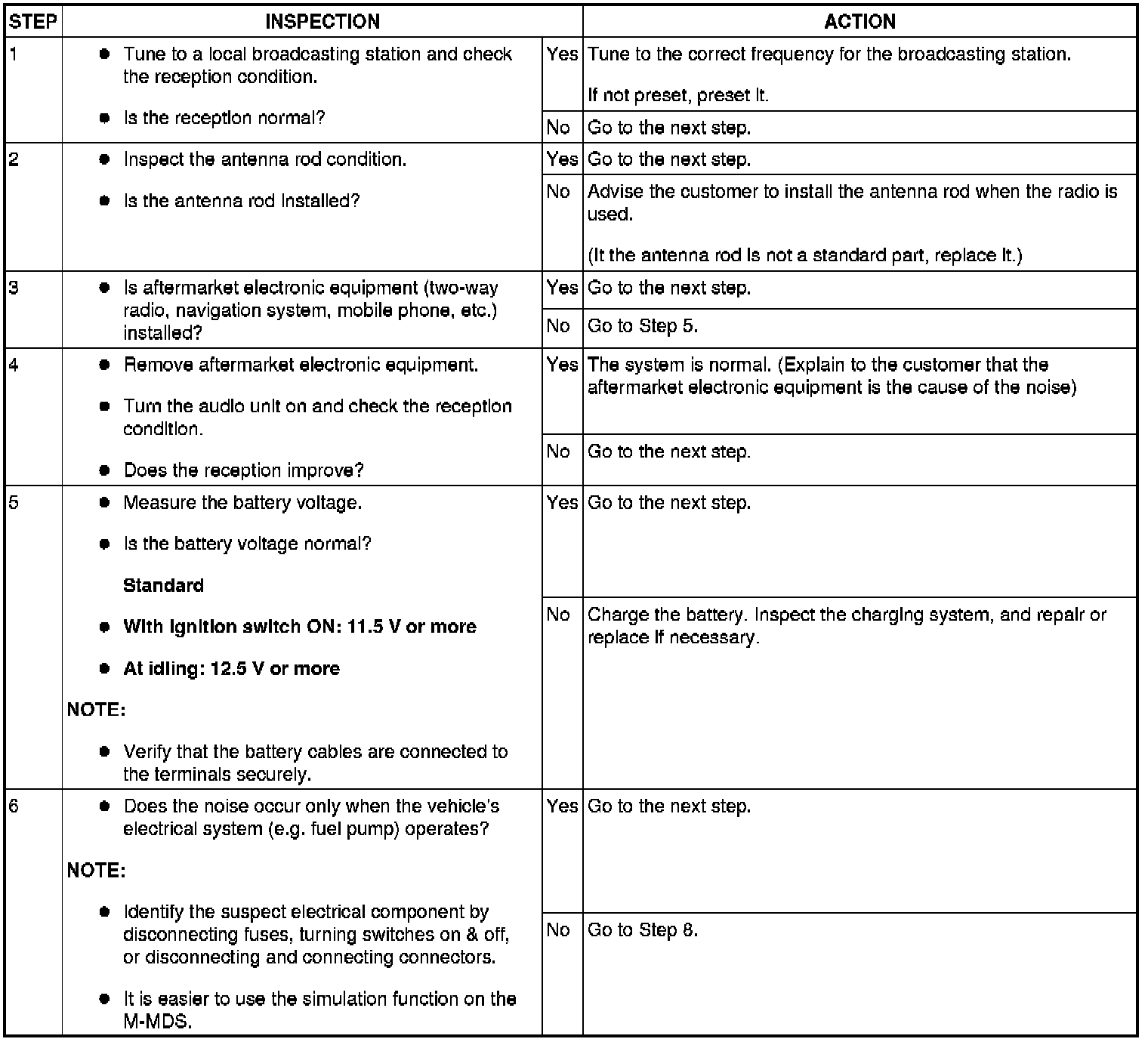

Step 1-Step 6:

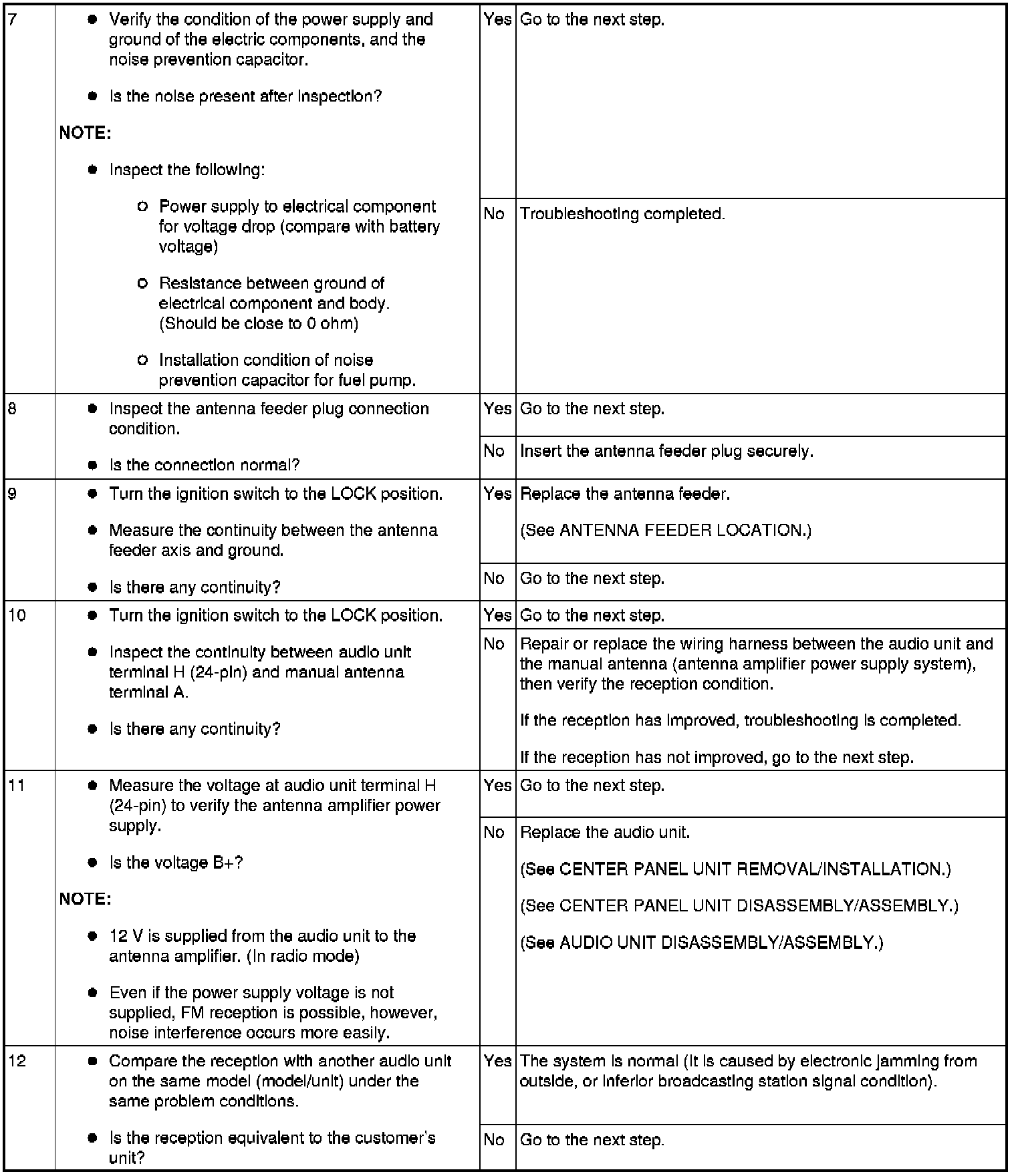

Step 7-Step 12:

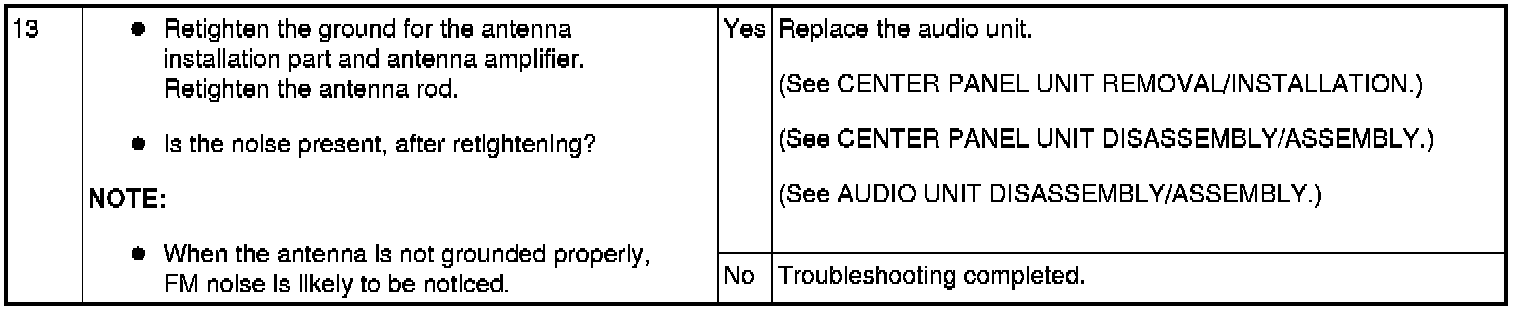

Step 13:
