No.1 No Radio Reception (AM/FM)/No or Low Volume [Radio]




NO.1 NO RADIO RECEPTION (AM/FM)/NO OR LOW VOLUME [RADIO]

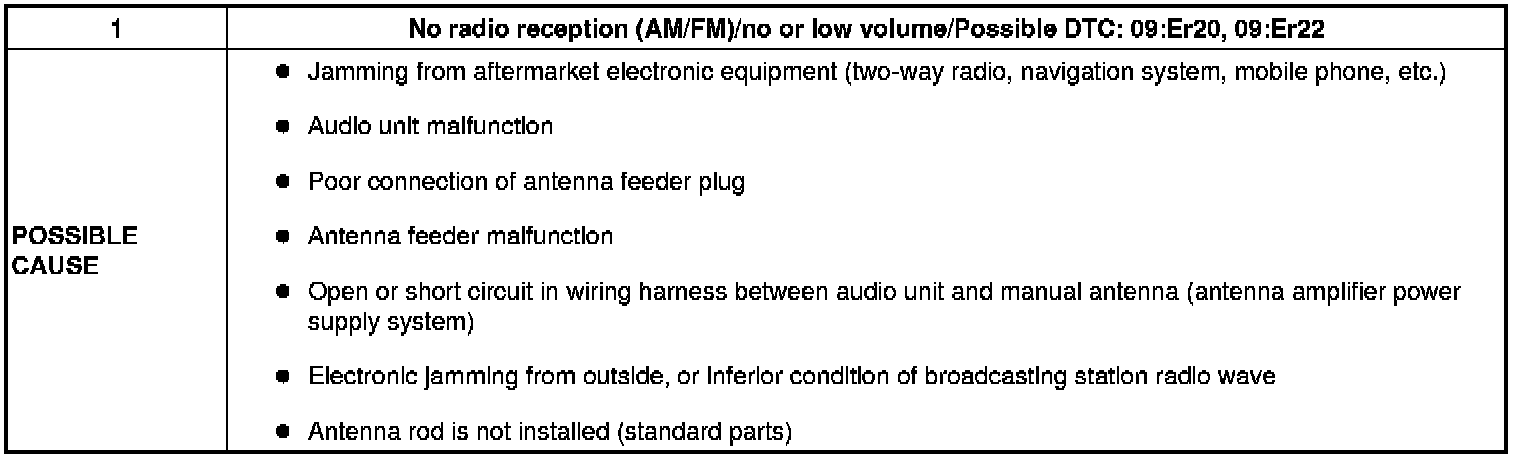

Possible Cause:





Diagnostic procedure

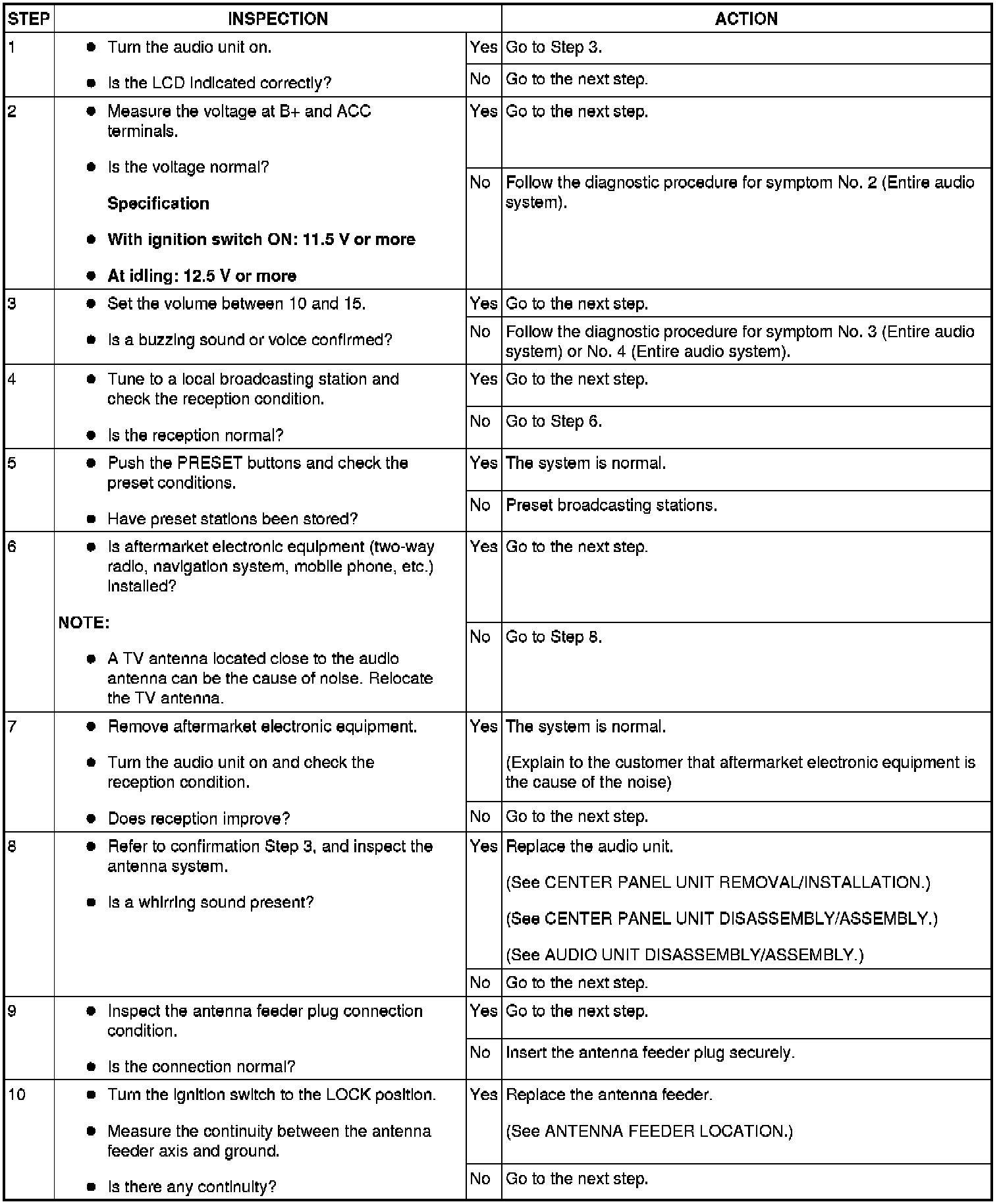

Step 1-Step 10:

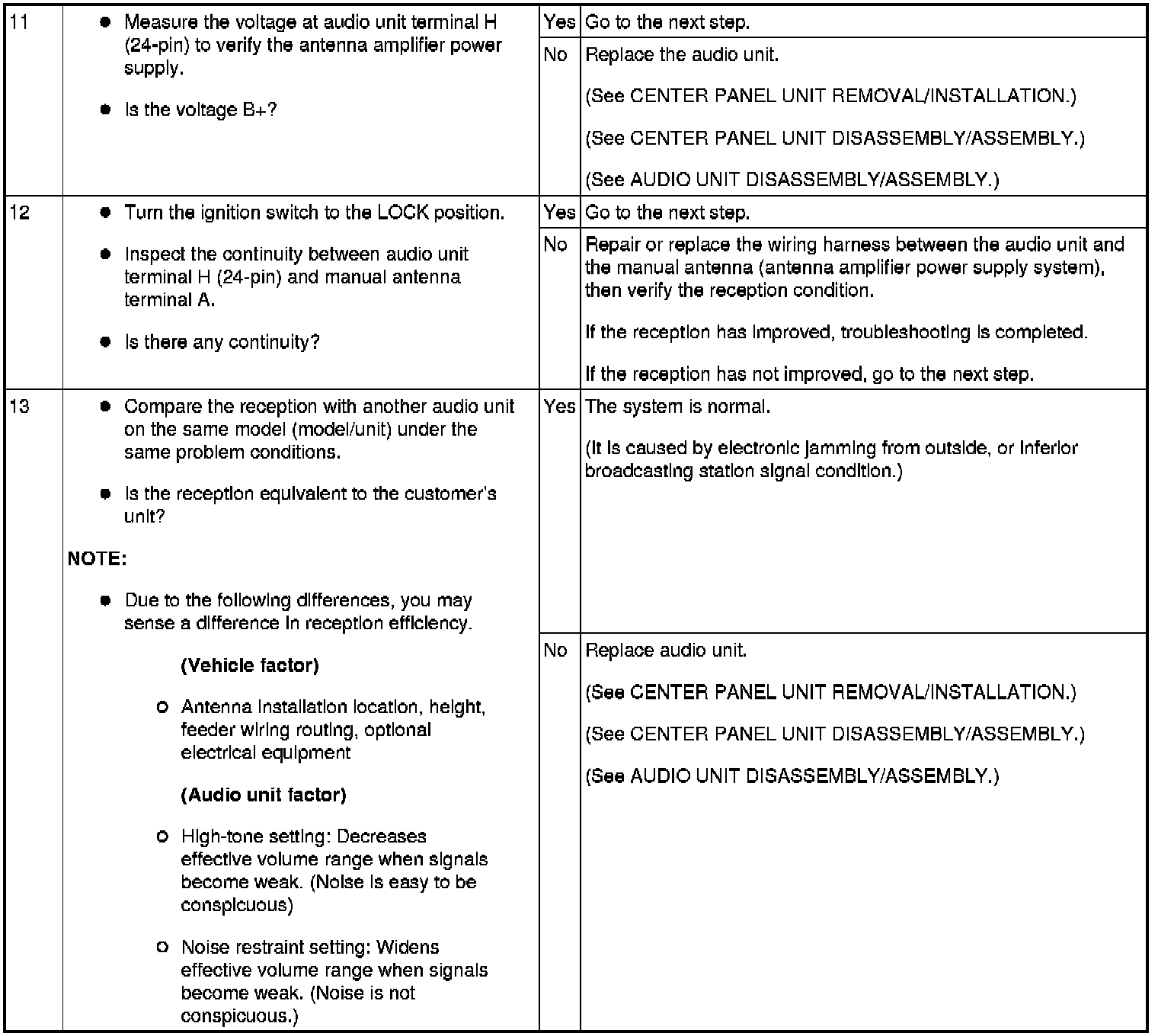

Step 11-Step 13:
