DTC 09:ER22
>>
Audio
Audio
DTC 09:ER22 [AUDIO]

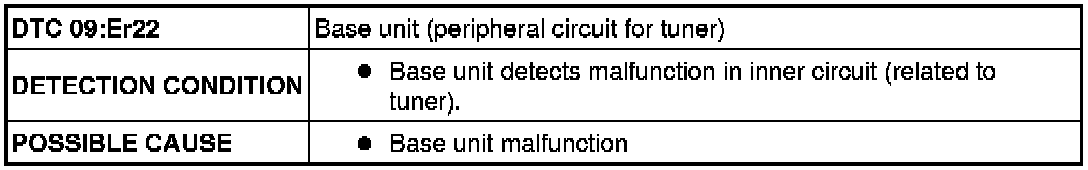

Detection Condition/Possible Cause:

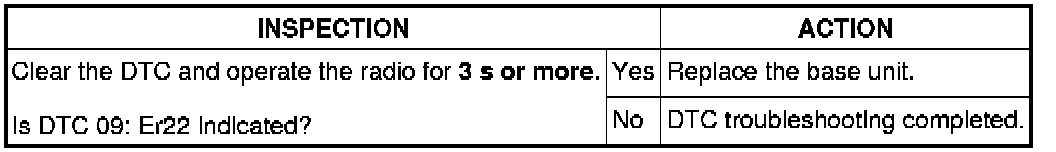

Diagnostic procedure
