Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 09:ER20 >> Entire Audio System >> No.1 AF Noise Or Pop Noise At All Sources (Radio, CD)

No.1 AF Noise Or Pop Noise At All Sources (Radio, CD)




NO.1 AF NOISE OR POP NOISE AT ALL SOURCES (RADIO, CD) [ENTIRE AUDIO SYSTEM]

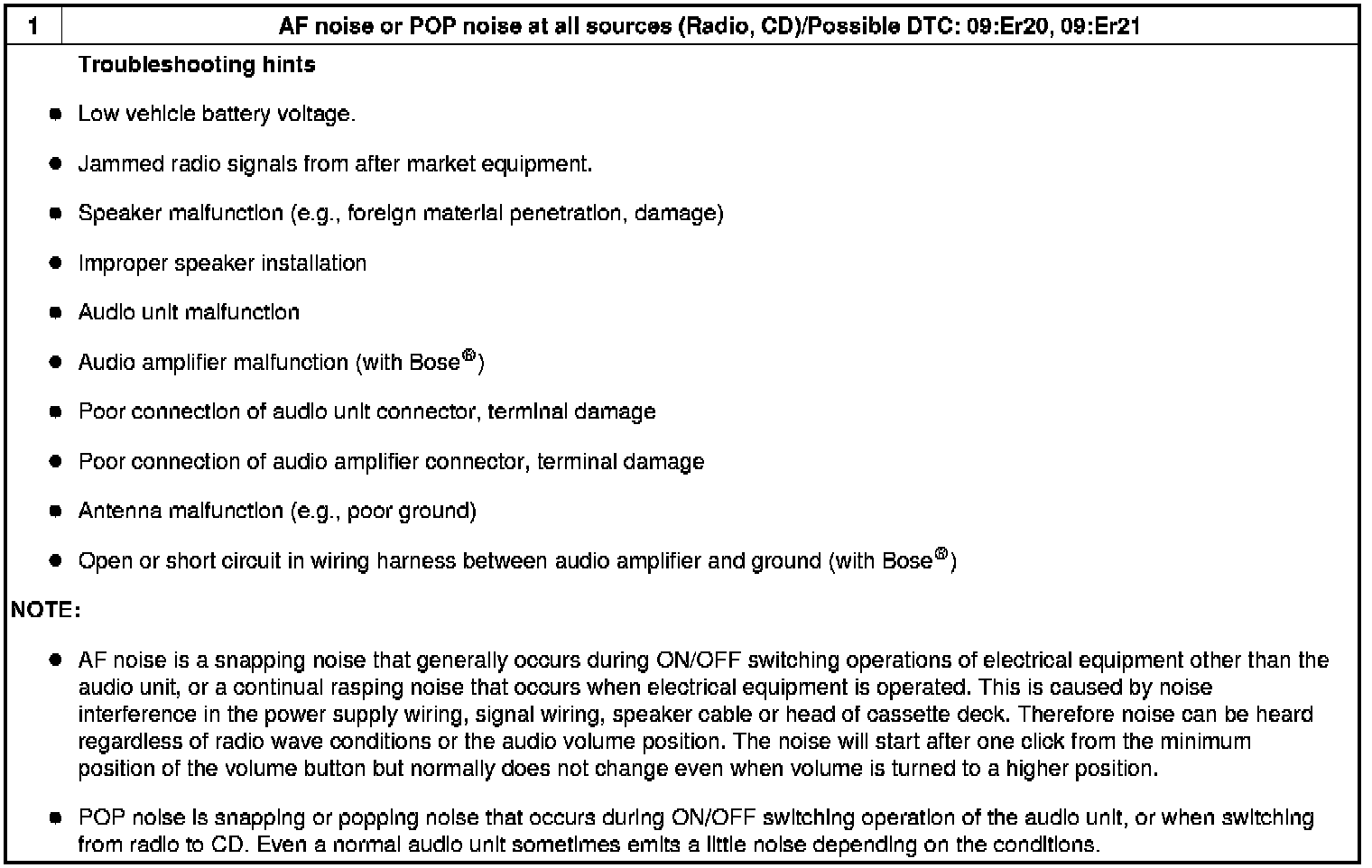

Troubleshooting Hints:





Diagnostic procedure

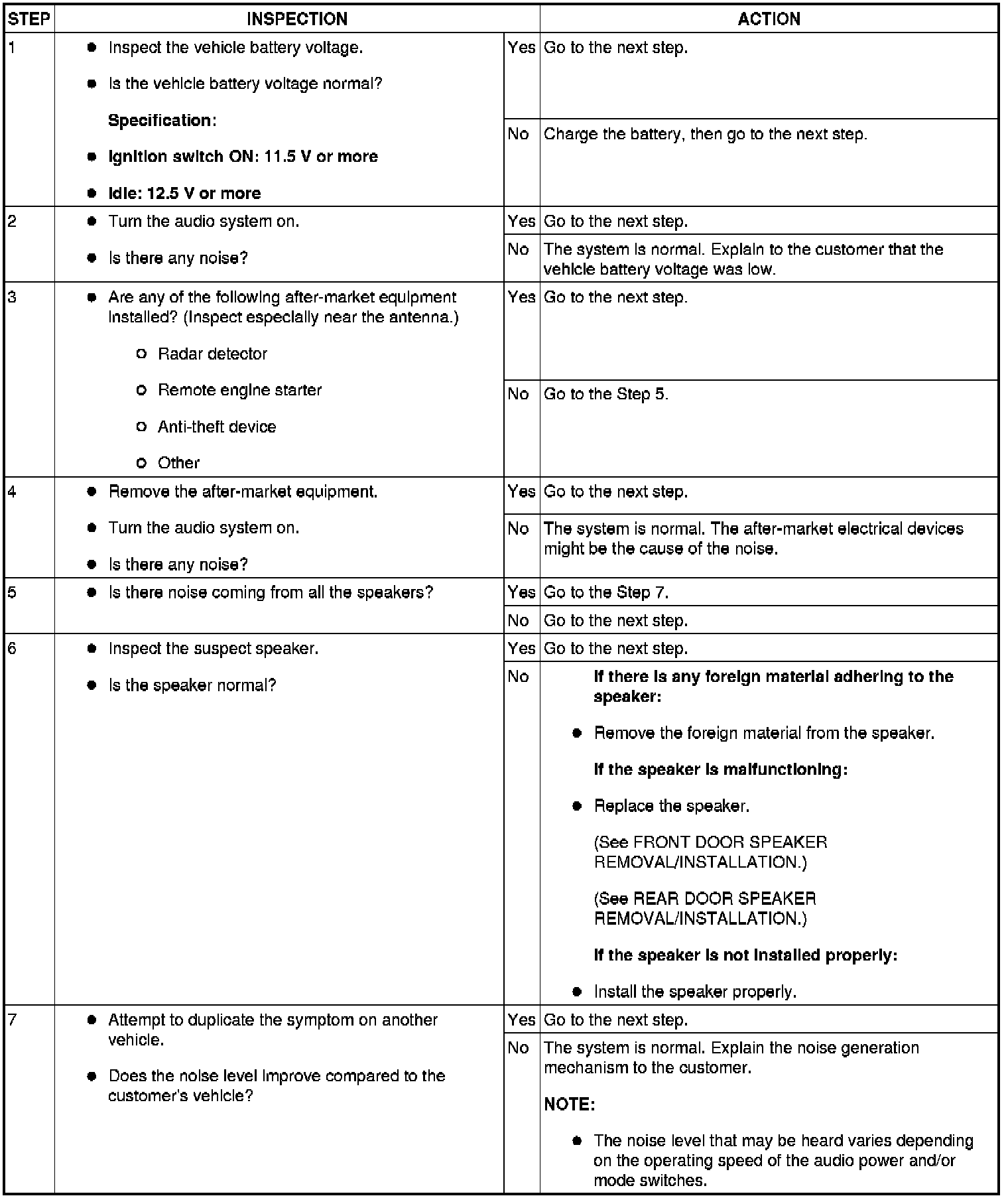

Step 1-Step 7:

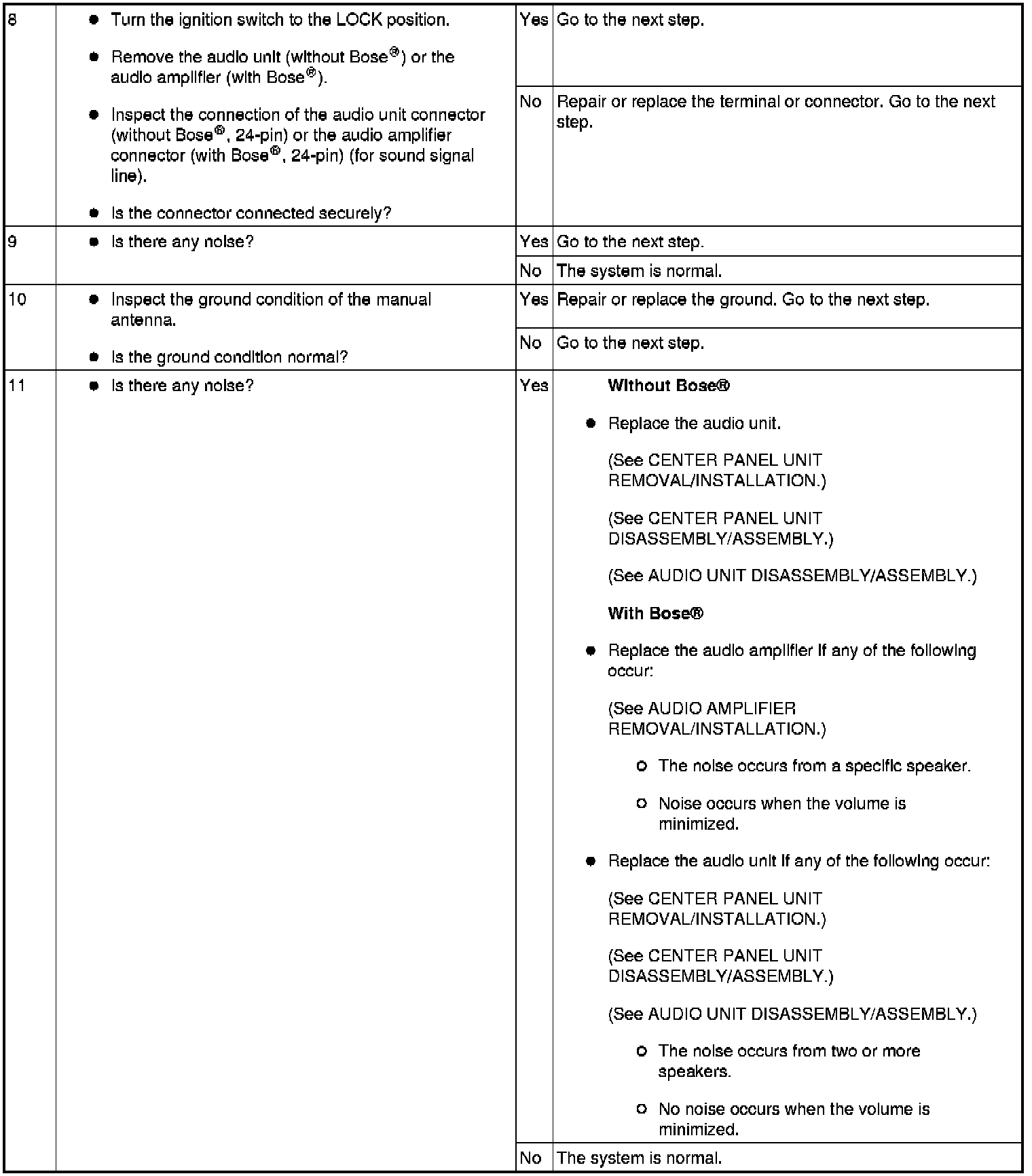

Step 8-Step 11:
