Electro Hydraulic Power Assist Steering (EHPAS)




DTC C1278 [ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS)]

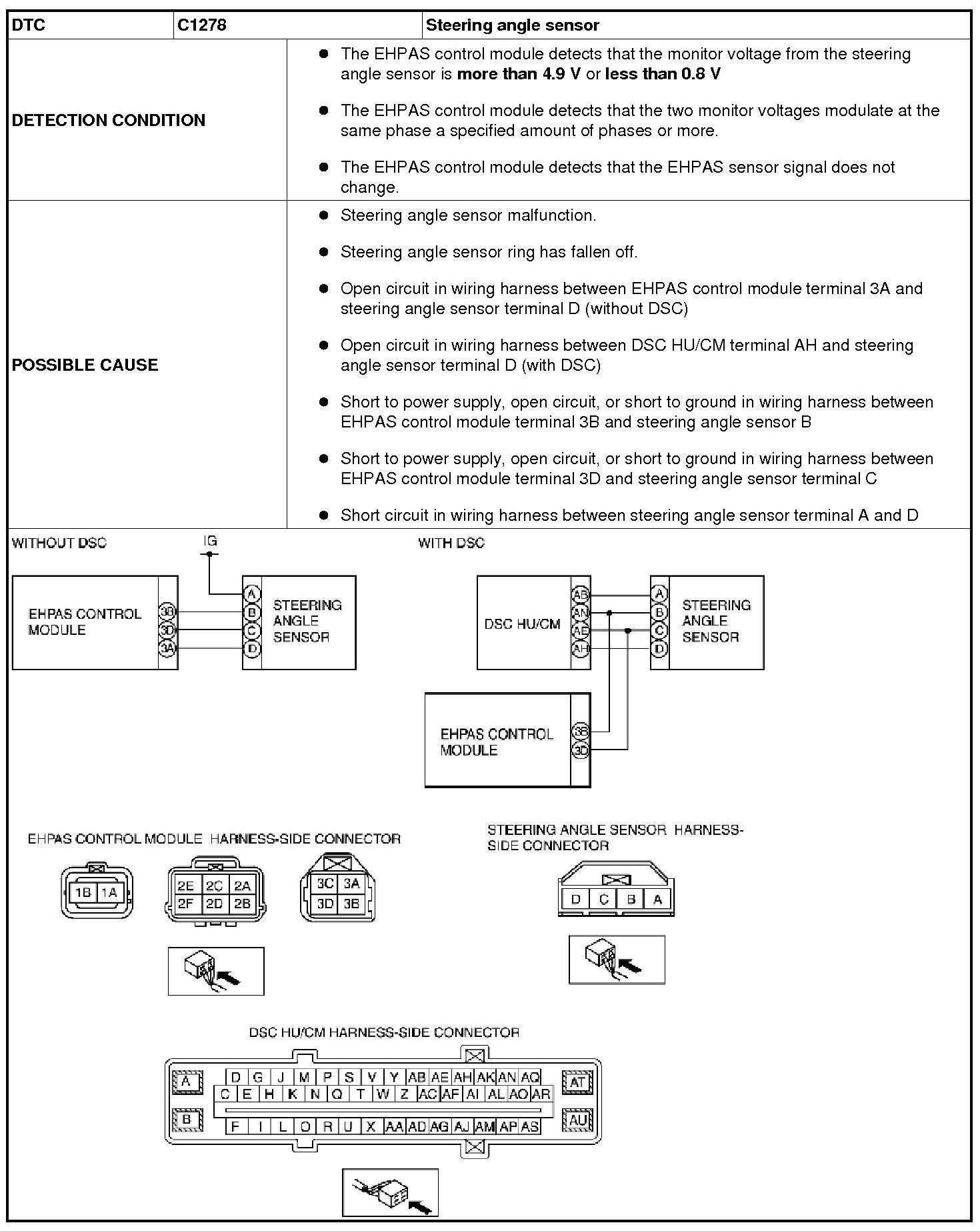

Detection Condition/Possible Cause:





Diagnostic procedure

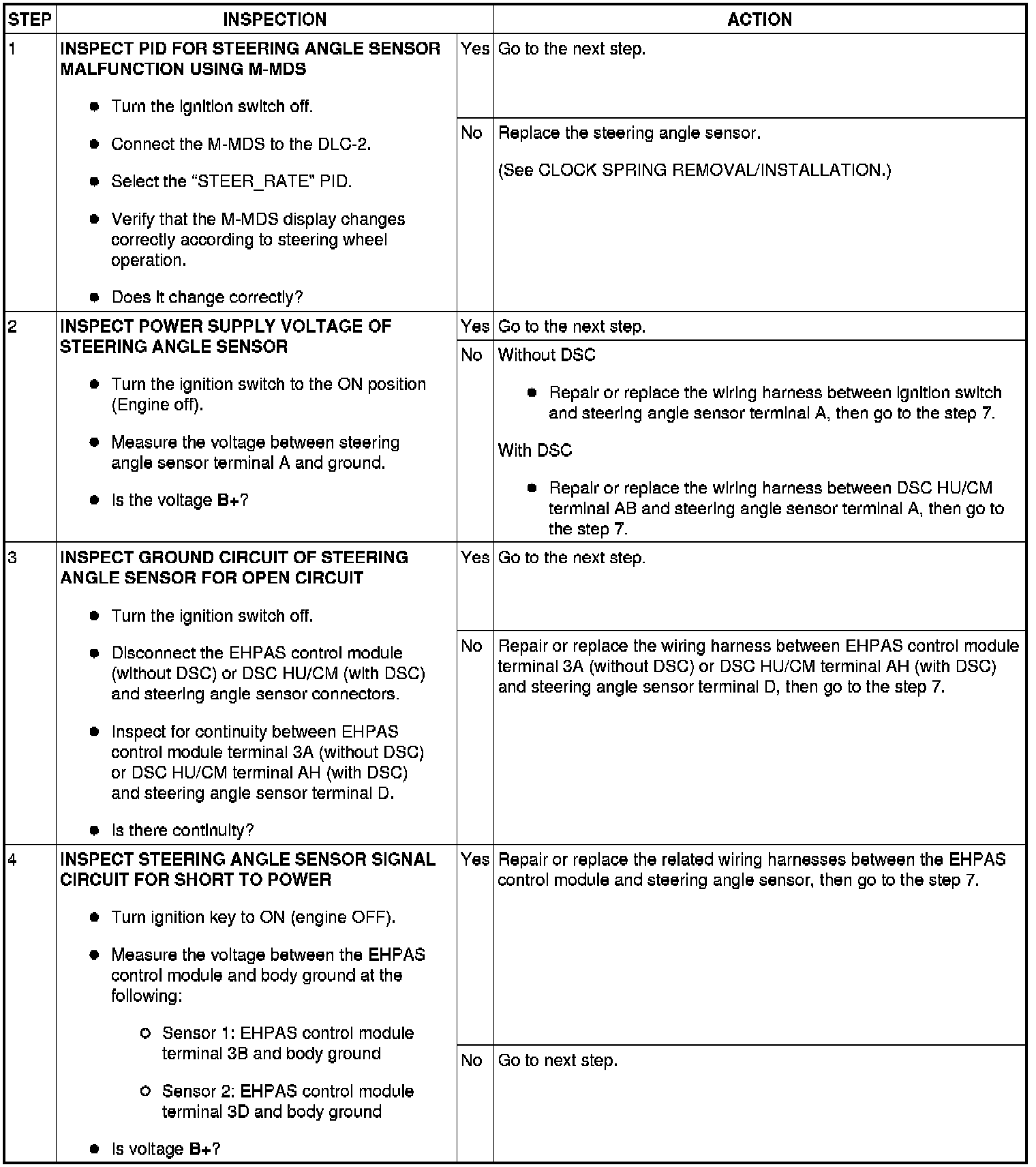

Step 1-Step 4:

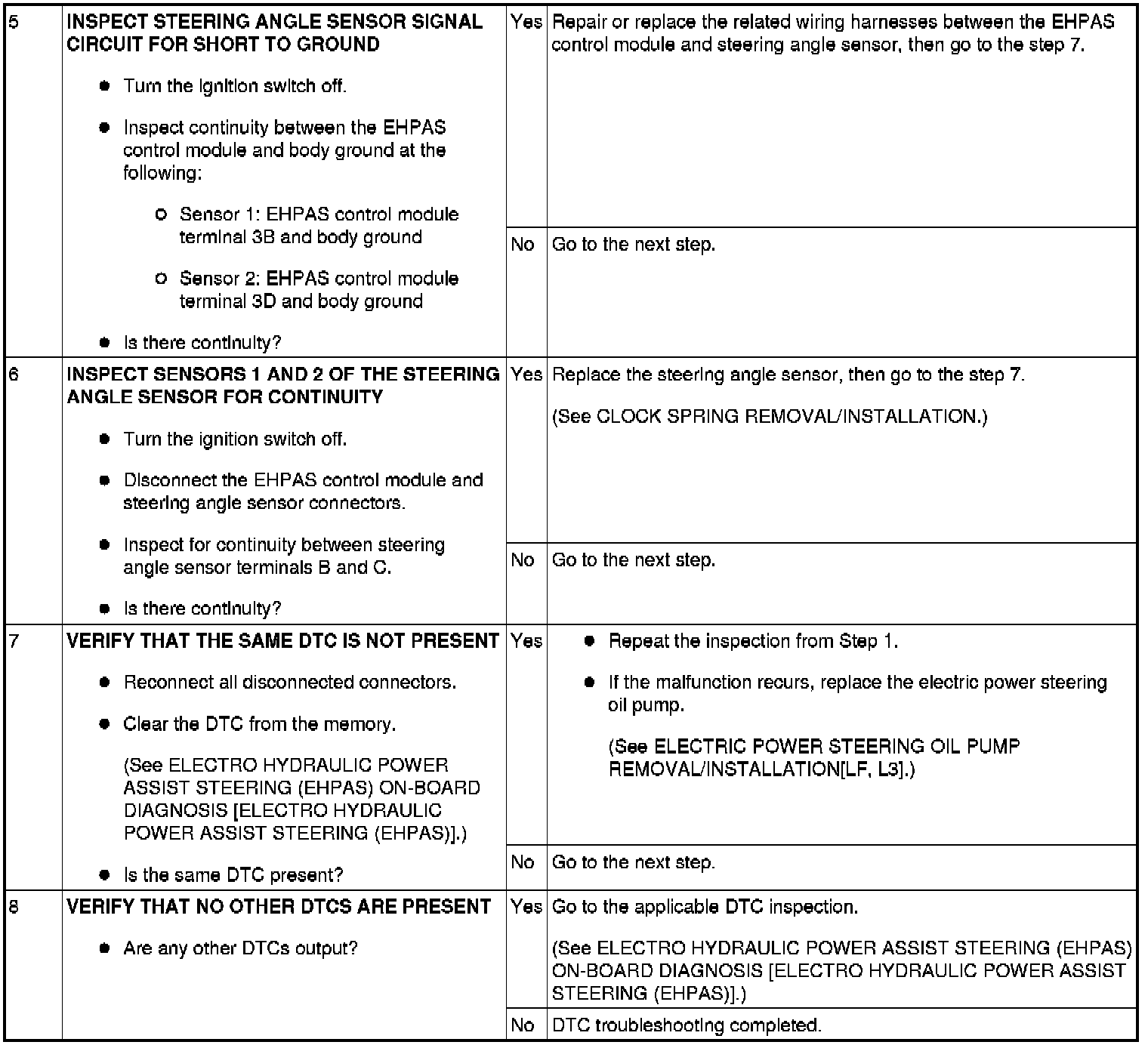

Step 5-Step 8:
