B2139
B2139
SECURITY LIGHT 23, DTC B2139/P1260 [IMMOBILIZER SYSTEM]

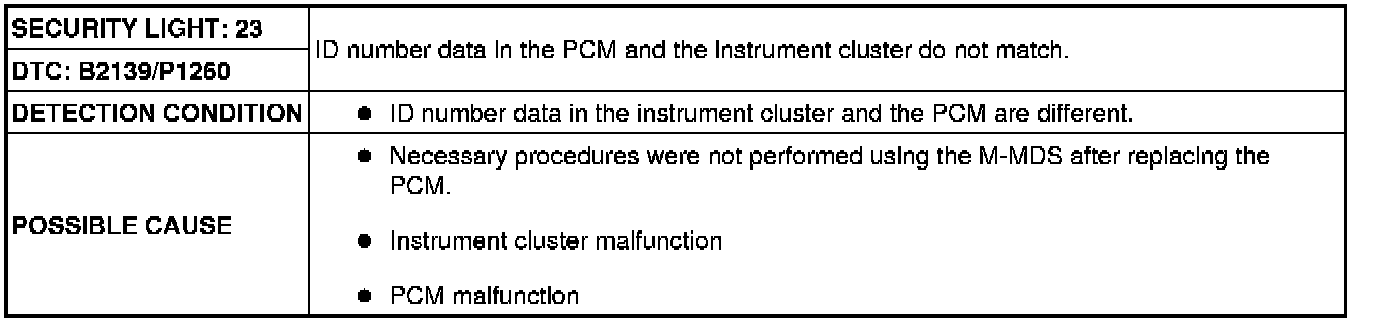

Detection Condition/Possible Cause:

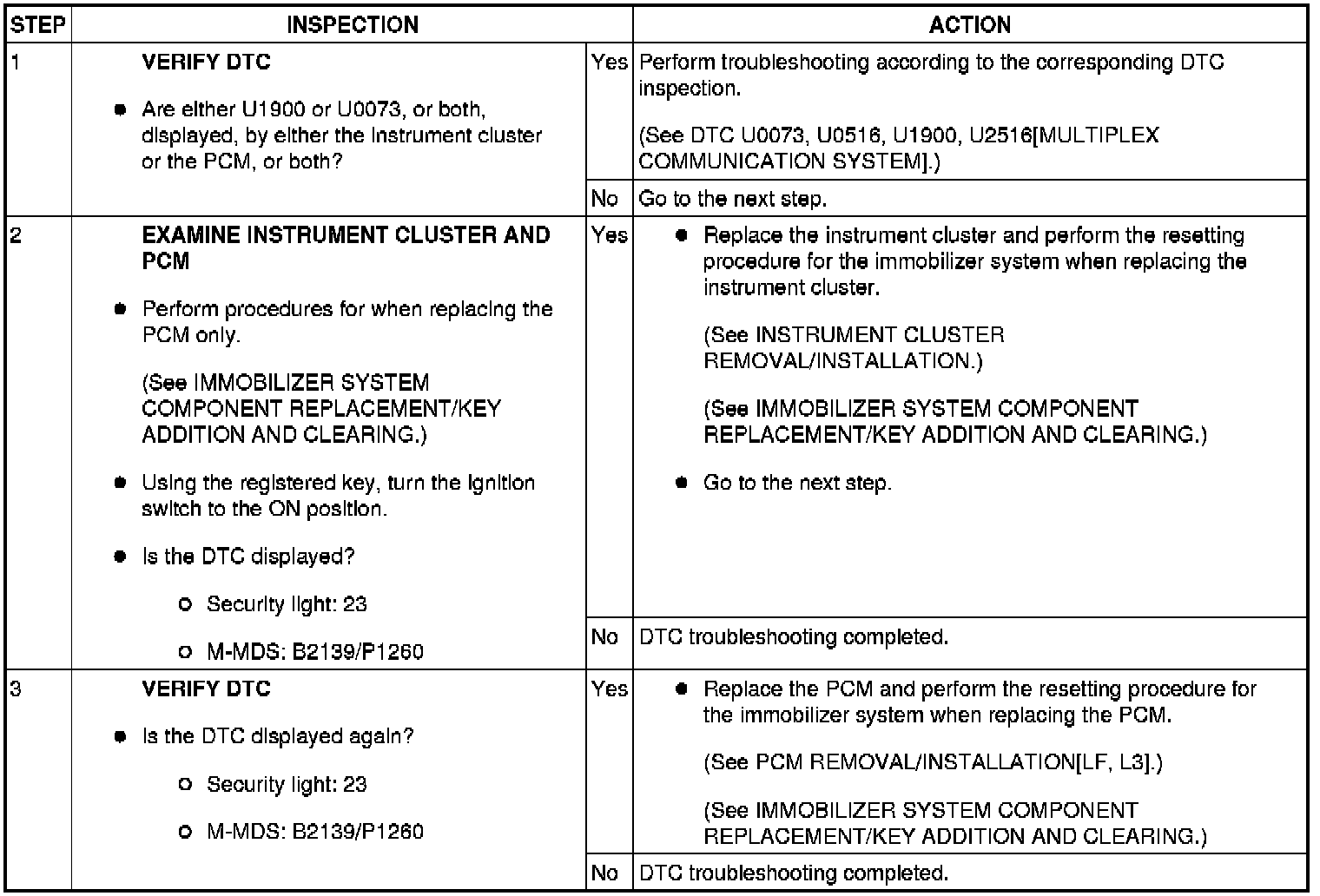

Diagnostic Procedure
Step 1-Step 3:
