Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1884

B1884




DTC B1884, B1890

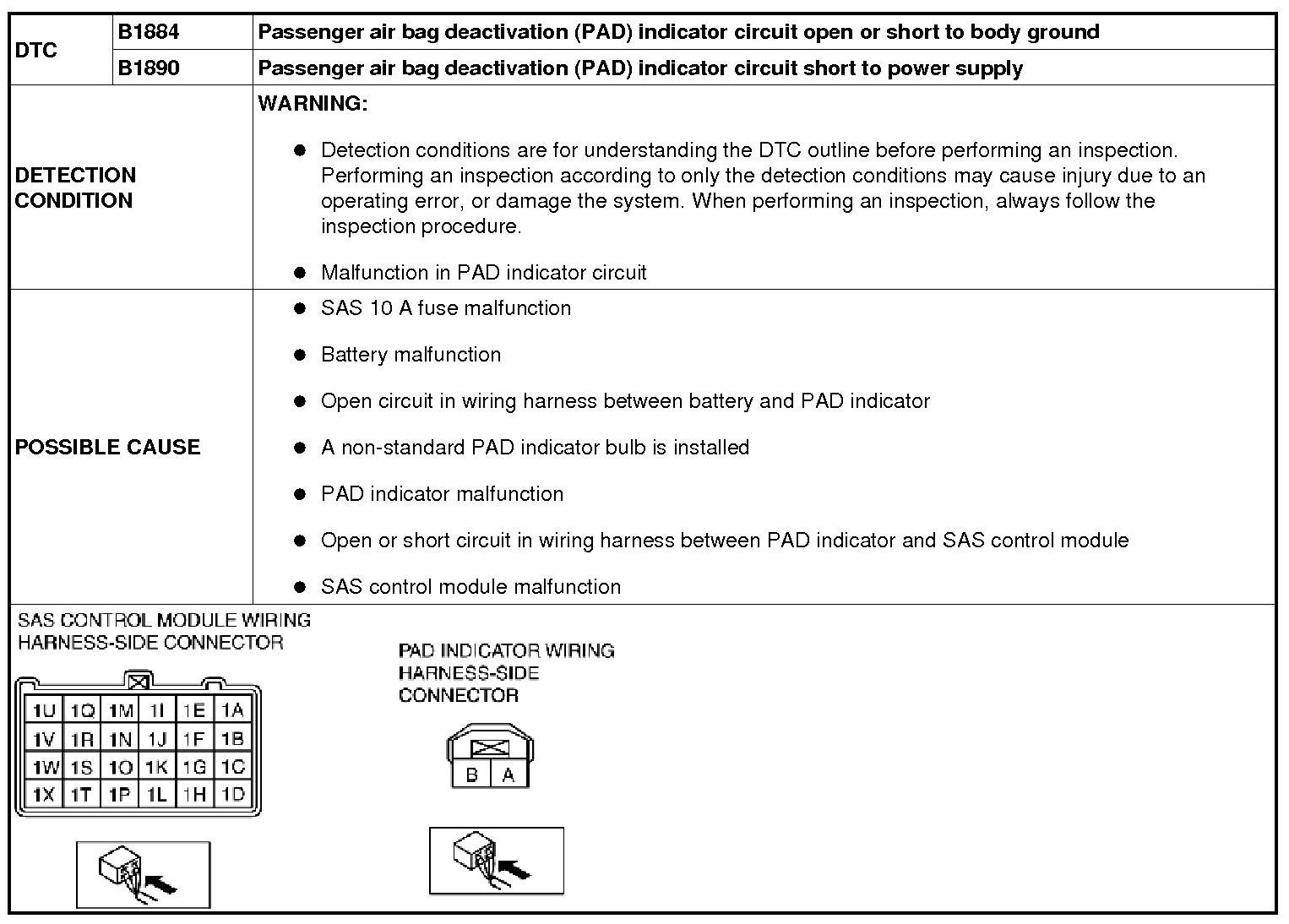

Detection Condition/Possible Cause:





Diagnostic procedure

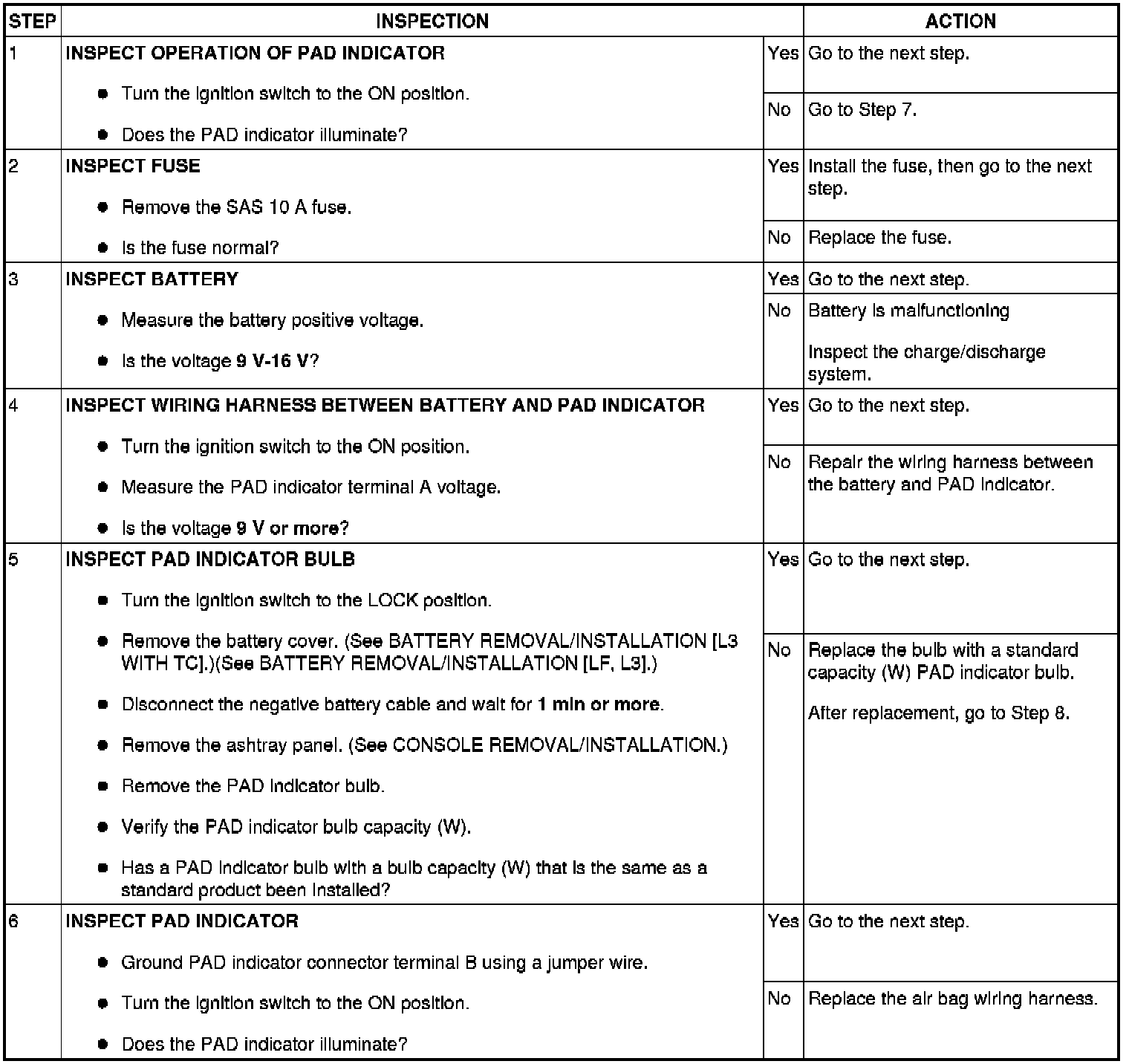

Step 1-Step 6:

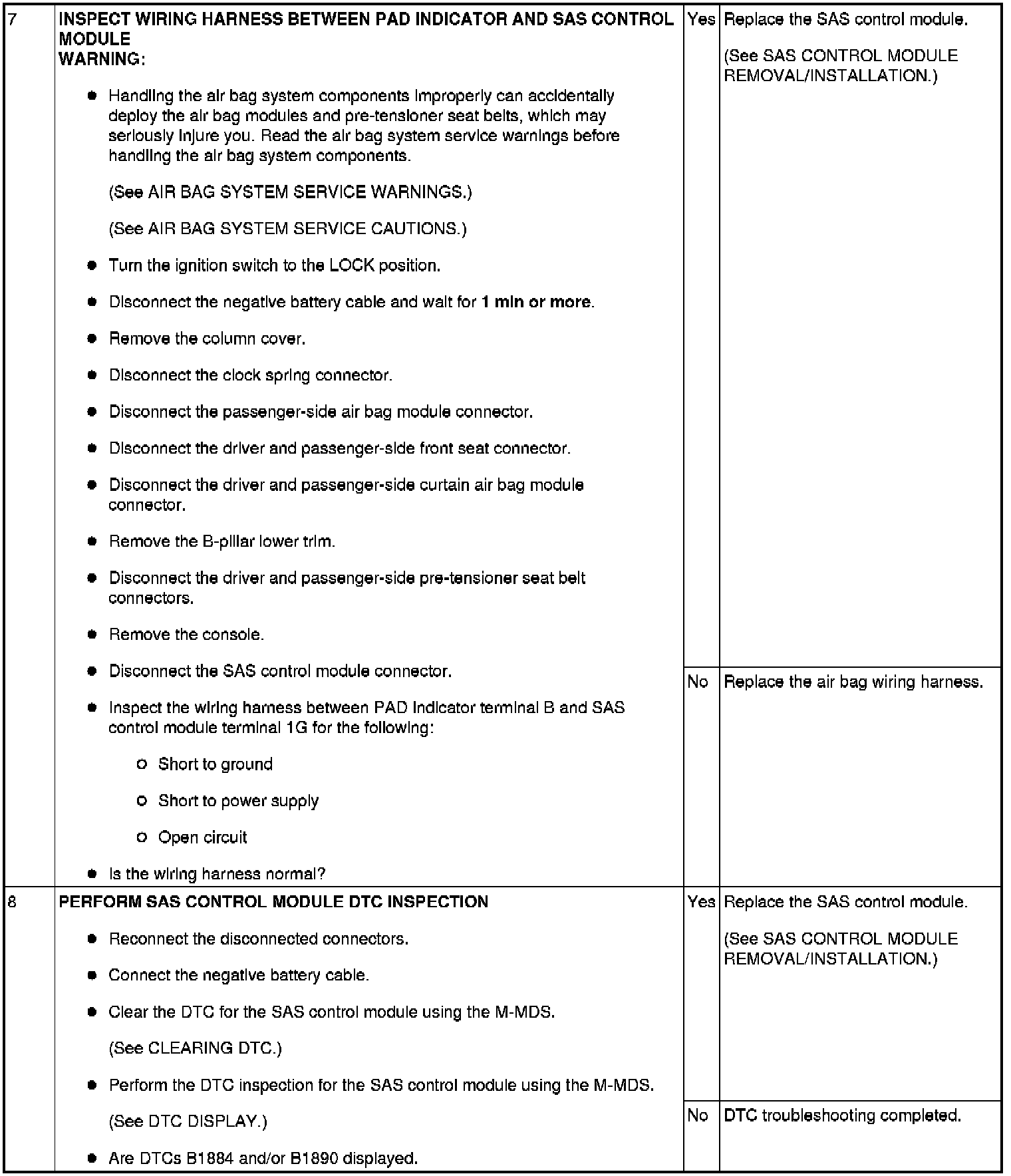

Step 7-Step 8:
