B1601
B1601
SECURITY LIGHT 15, DTC B1601/P1260 [IMMOBILIZER SYSTEM]

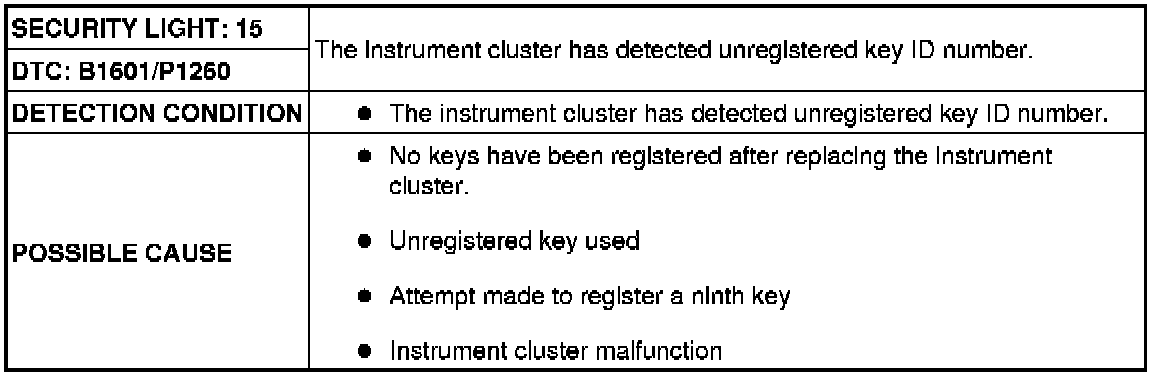

Detection Condition/Possible Cause:

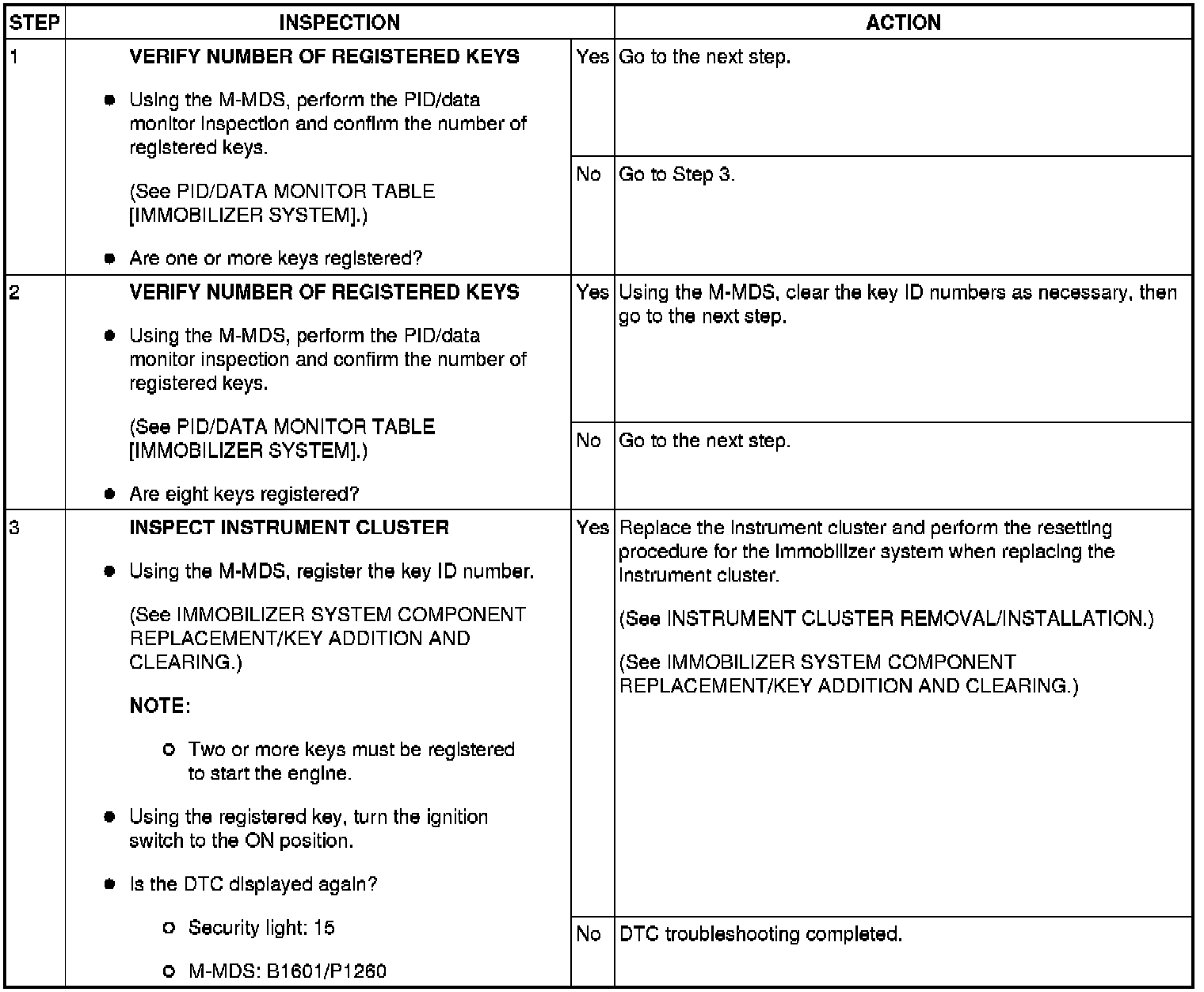

Diagnostic Procedure
Step 1-Step 3:
