Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1342 >> ABS

ABS




DTC B1342, C1267 [ABS]

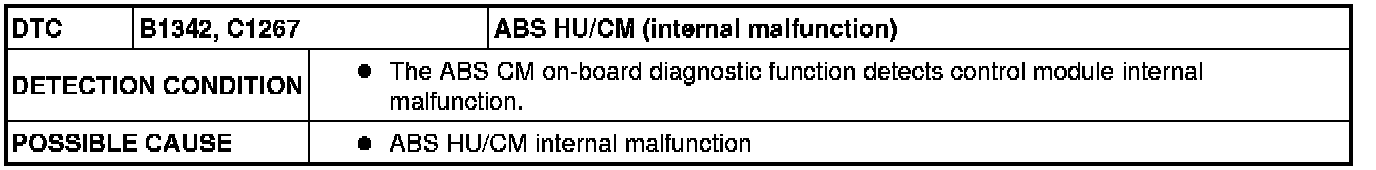

Detection Condition/Possible Cause:

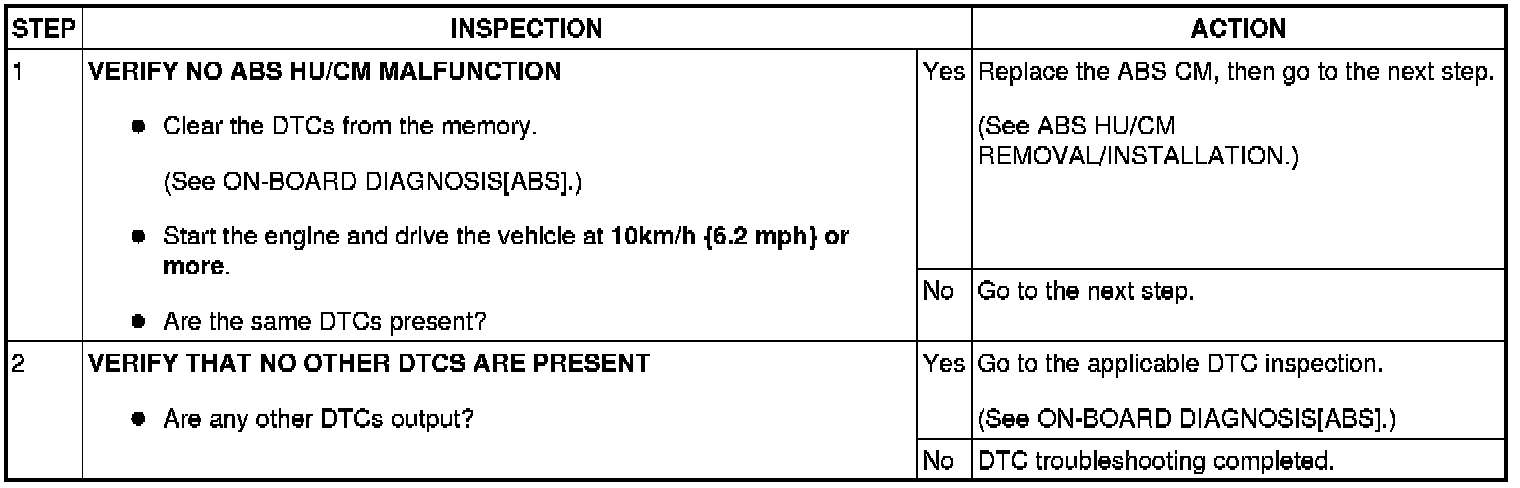

Diagnostic procedure

Step 1-Step 2:
