Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1318 >> ABS

ABS




DTC B1317, B1318 [ABS]

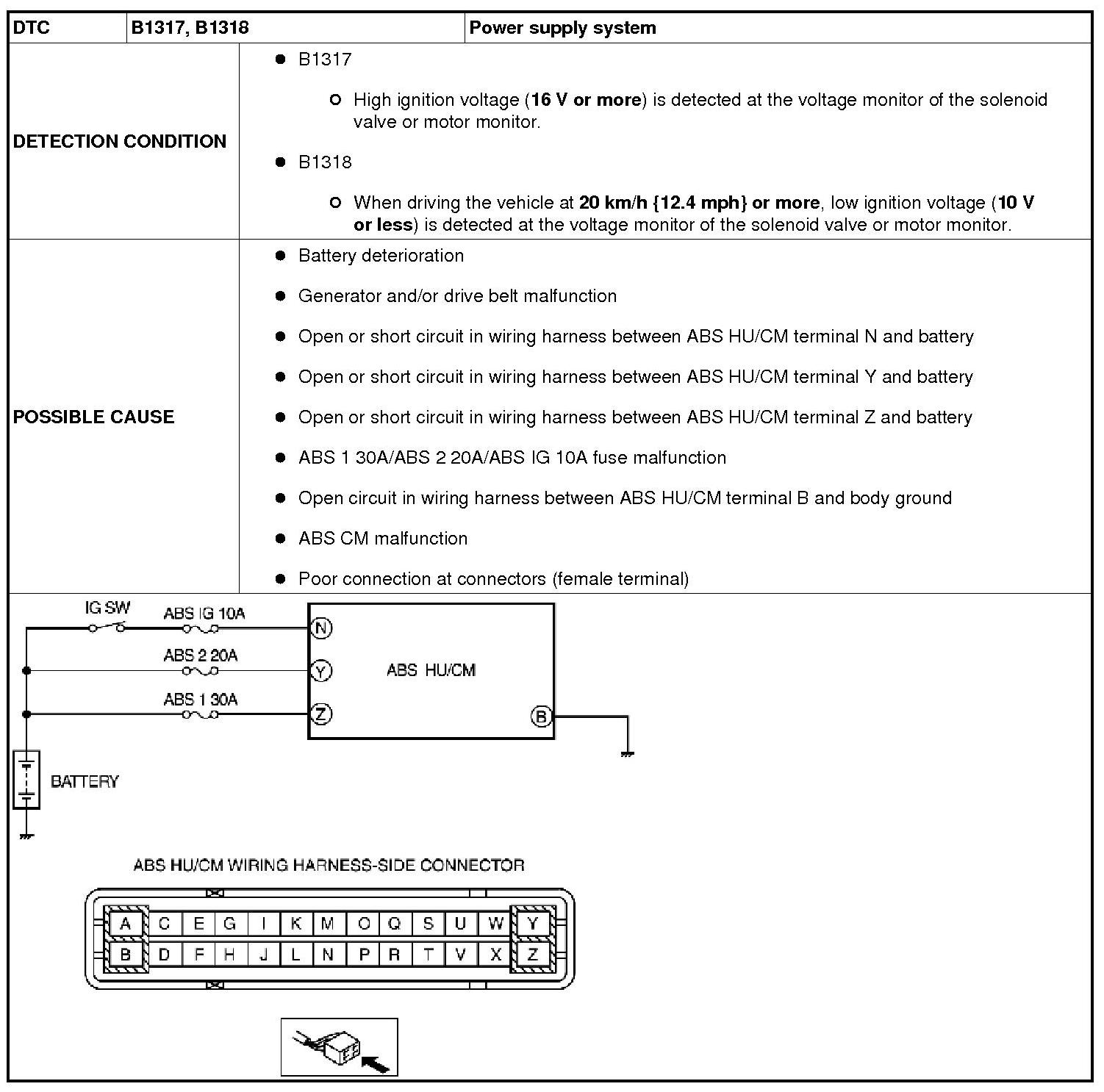

Detection Condition/Possible Cause:





Diagnostic procedure

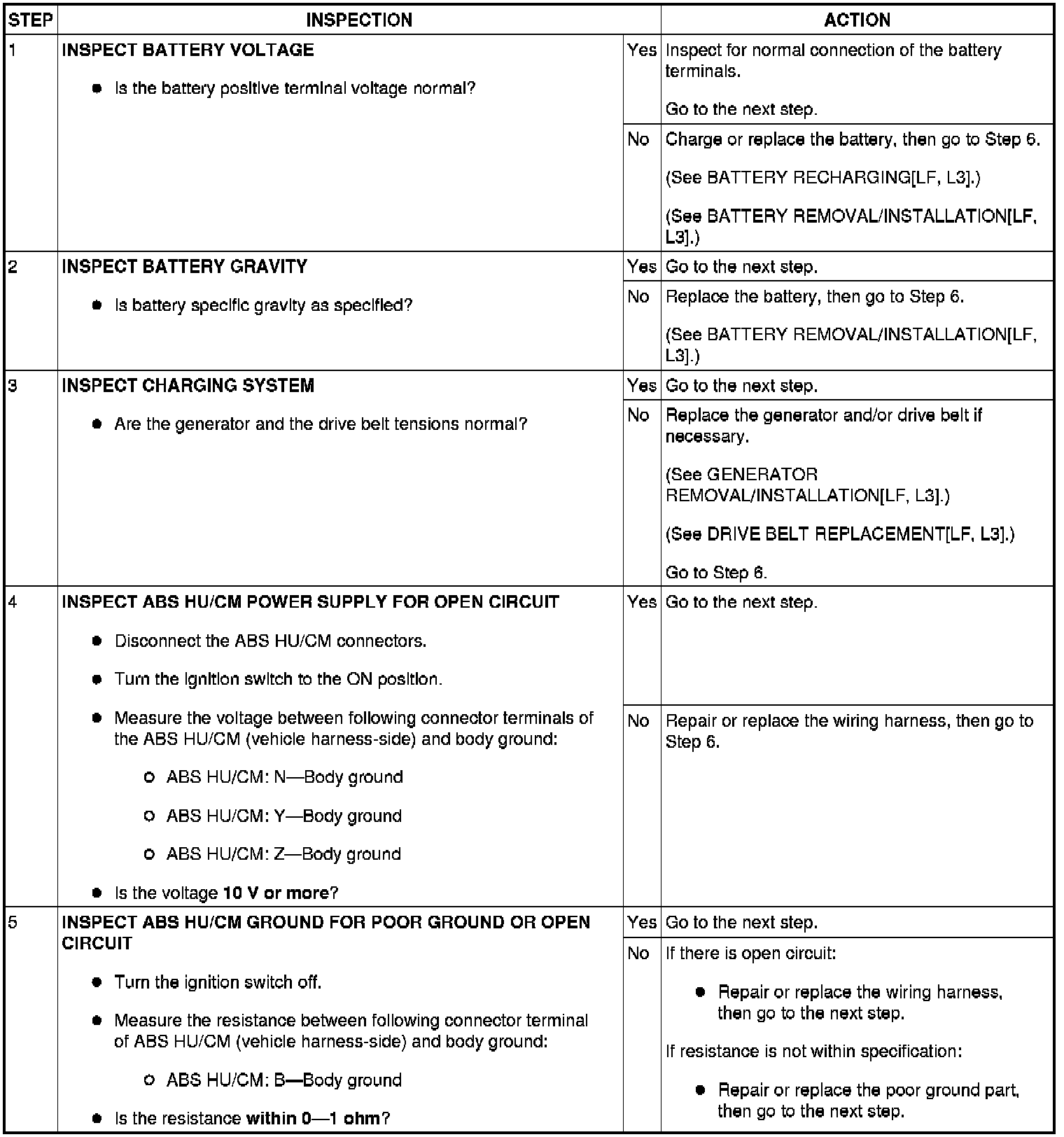

Step 1-Step 5:

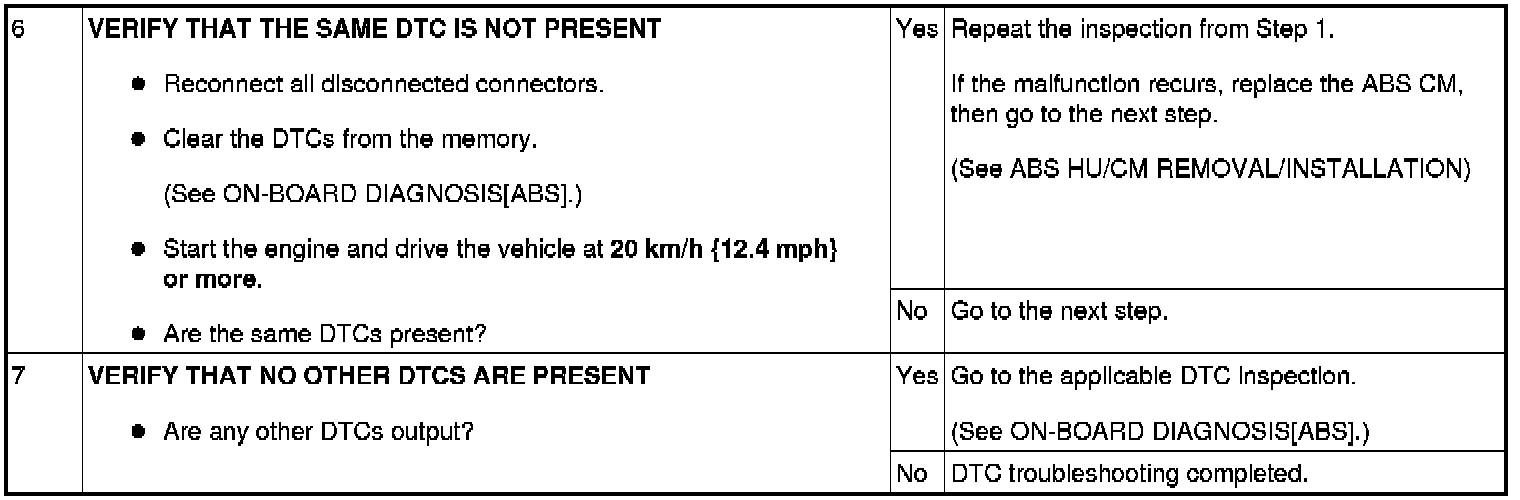

Step 6-Step 7:
