A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B105A
B105A

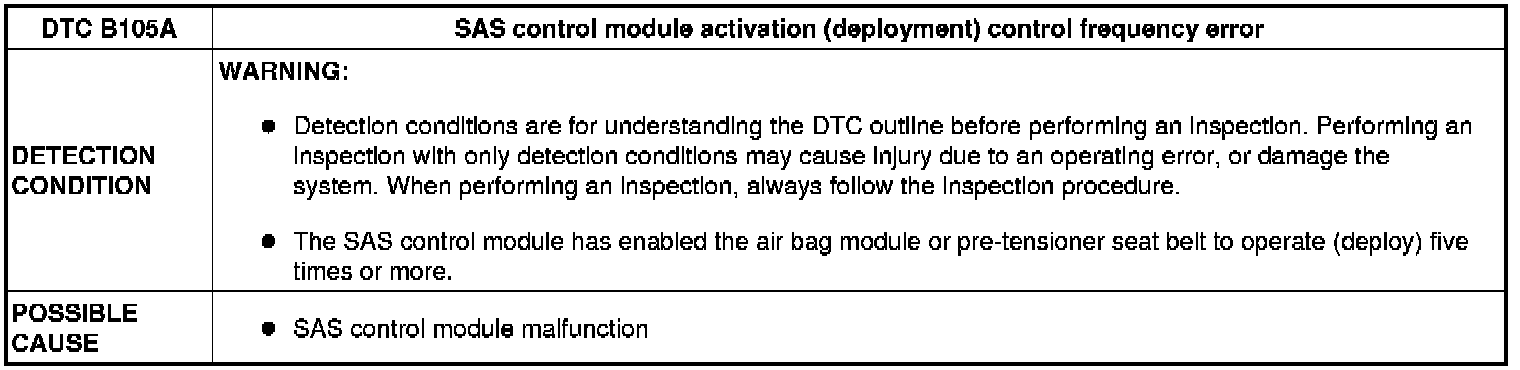

DTC B105A
Detection Condition/Possible Cause:

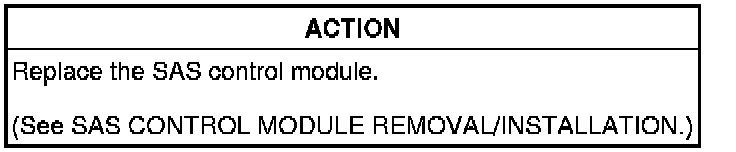

Diagnostic procedure
