Home >> Mazda >> 2009 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1013

B1013




DTC B1013

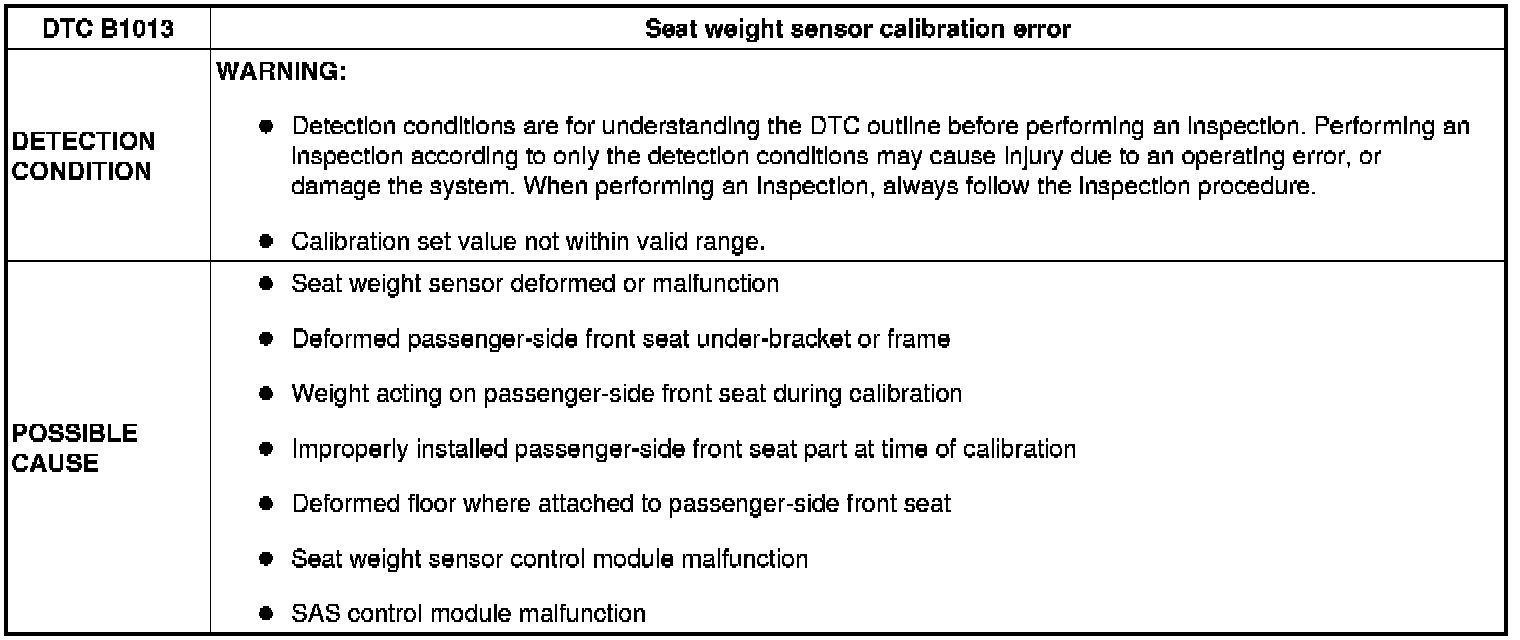

Detection Condition/Possible Cause:

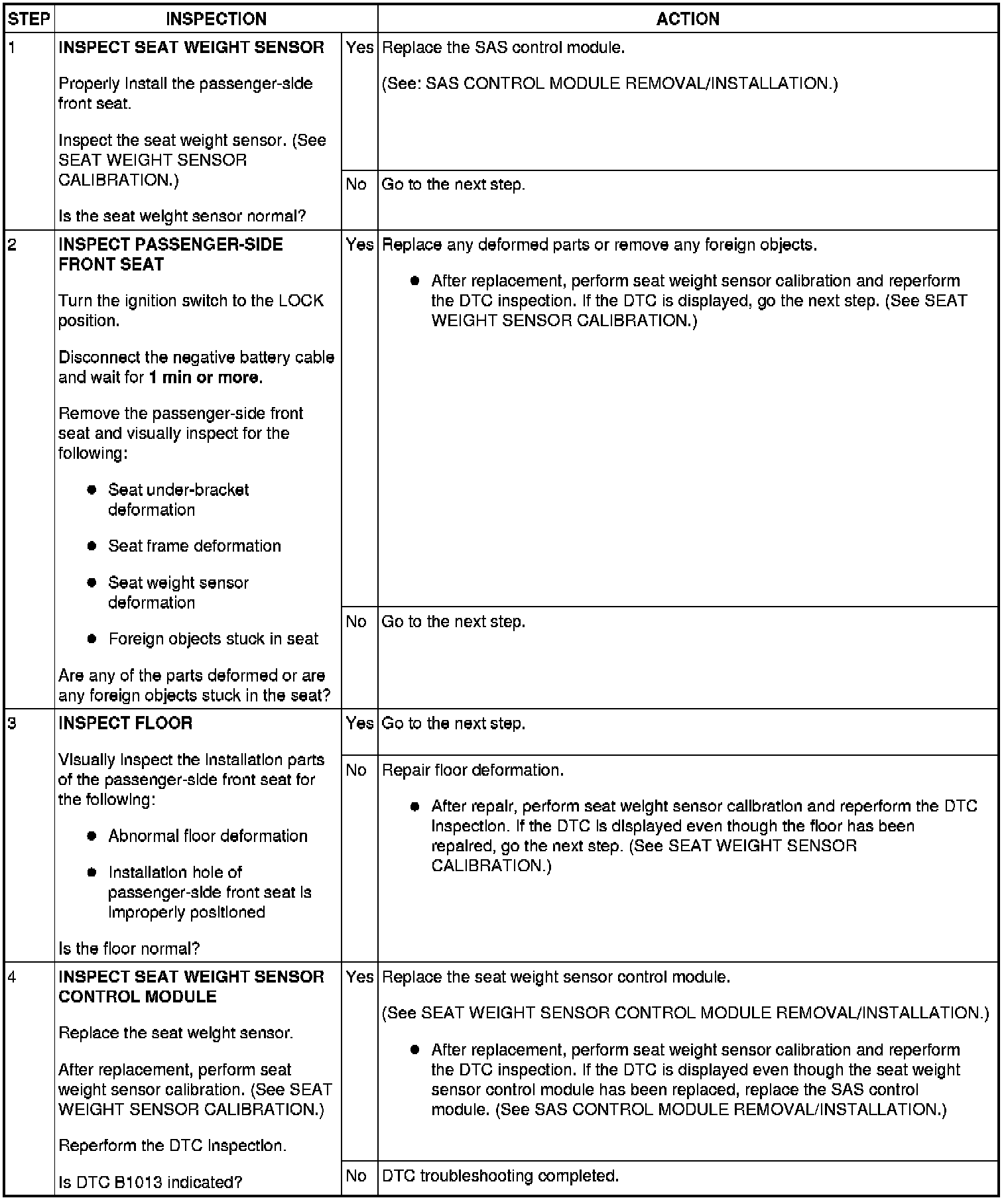

Diagnostic procedure

Step 1-Step 4:
