Home >> Mazda >> 2007 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Power Window System Preliminary Inspection

Power Window System Preliminary Inspection

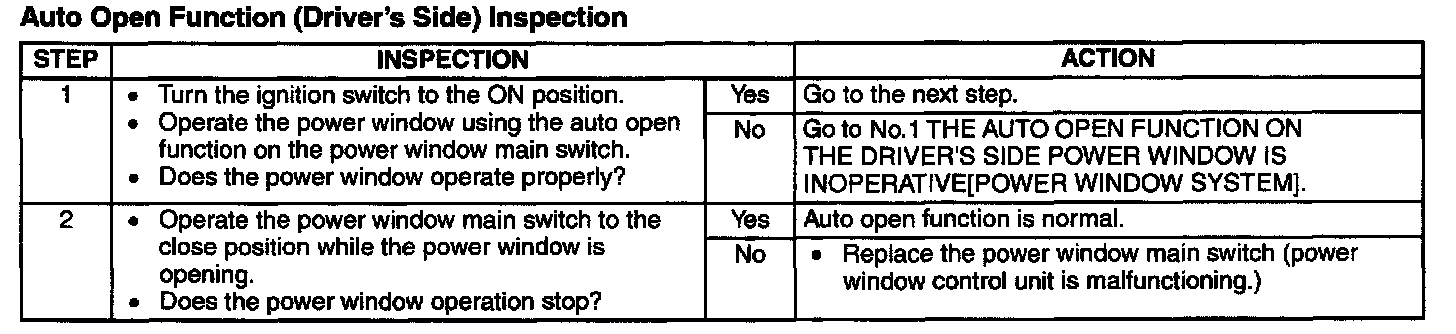

Step 1-Step 3:



Step 1-Step 2:
