Crankshaft Main Bearing

Main Bearing Specifications

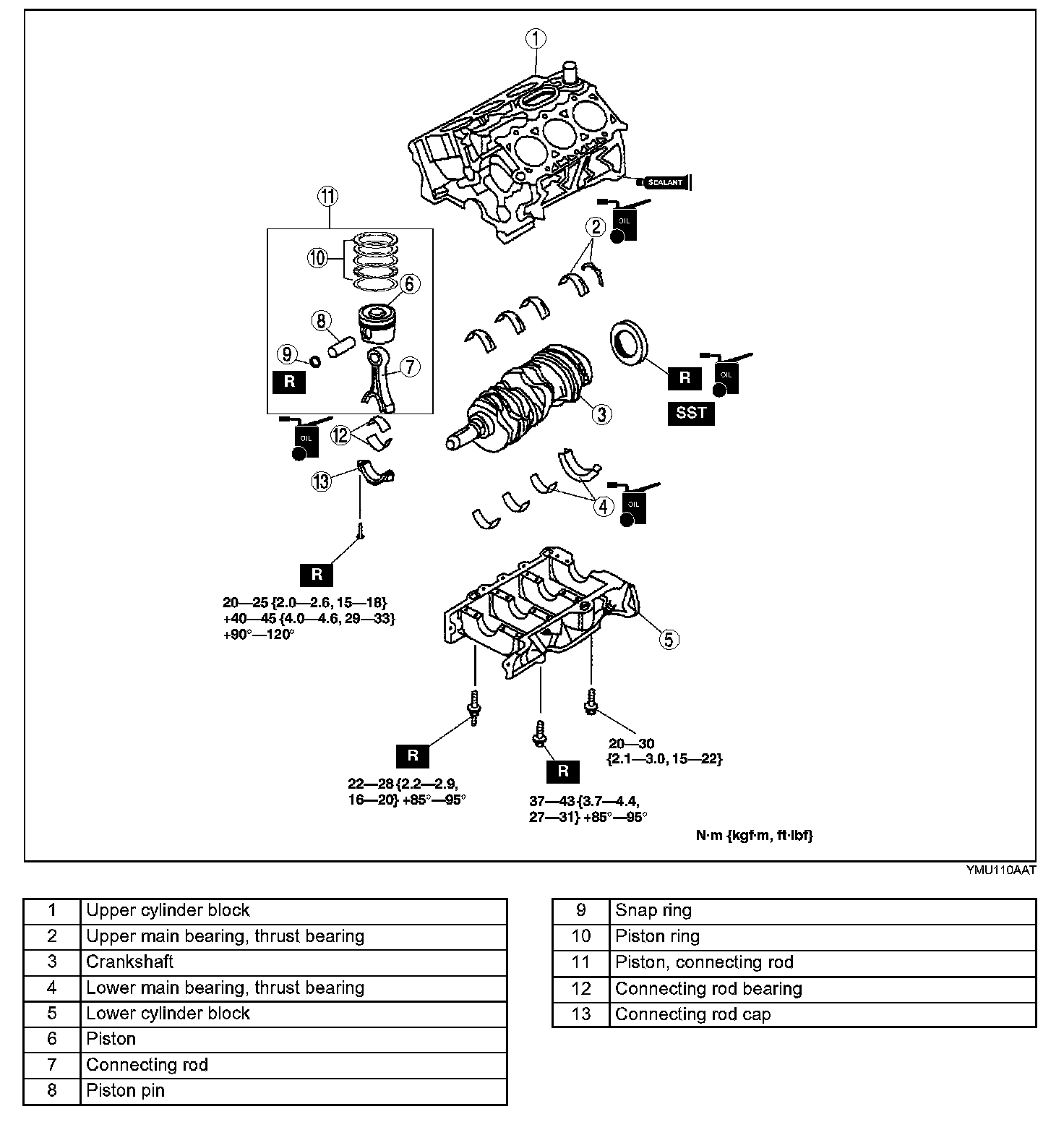

Cylinder Block Assembly(I):

Tightening Specifications

Standard clearance 0.025-0.045 mm (0.0010-0.0017 in)
Maximum clearance 0.050 mm (0.0019 in)





Main bearing selection table

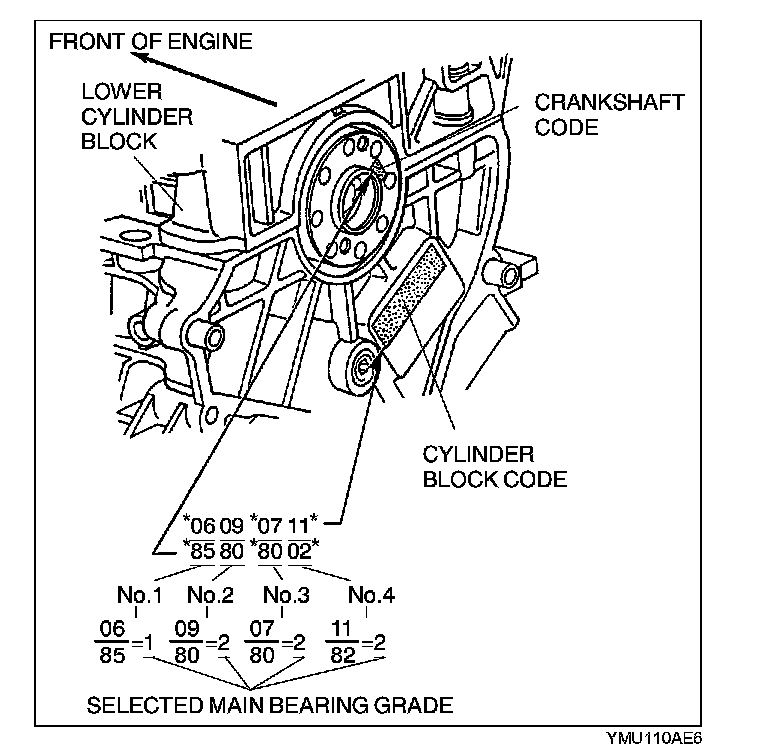

Example of main bearing selection
