Home >> Mazda >> 2000 >> Protege DX L4-1.6L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Engine Specifications

General Engine Specifications

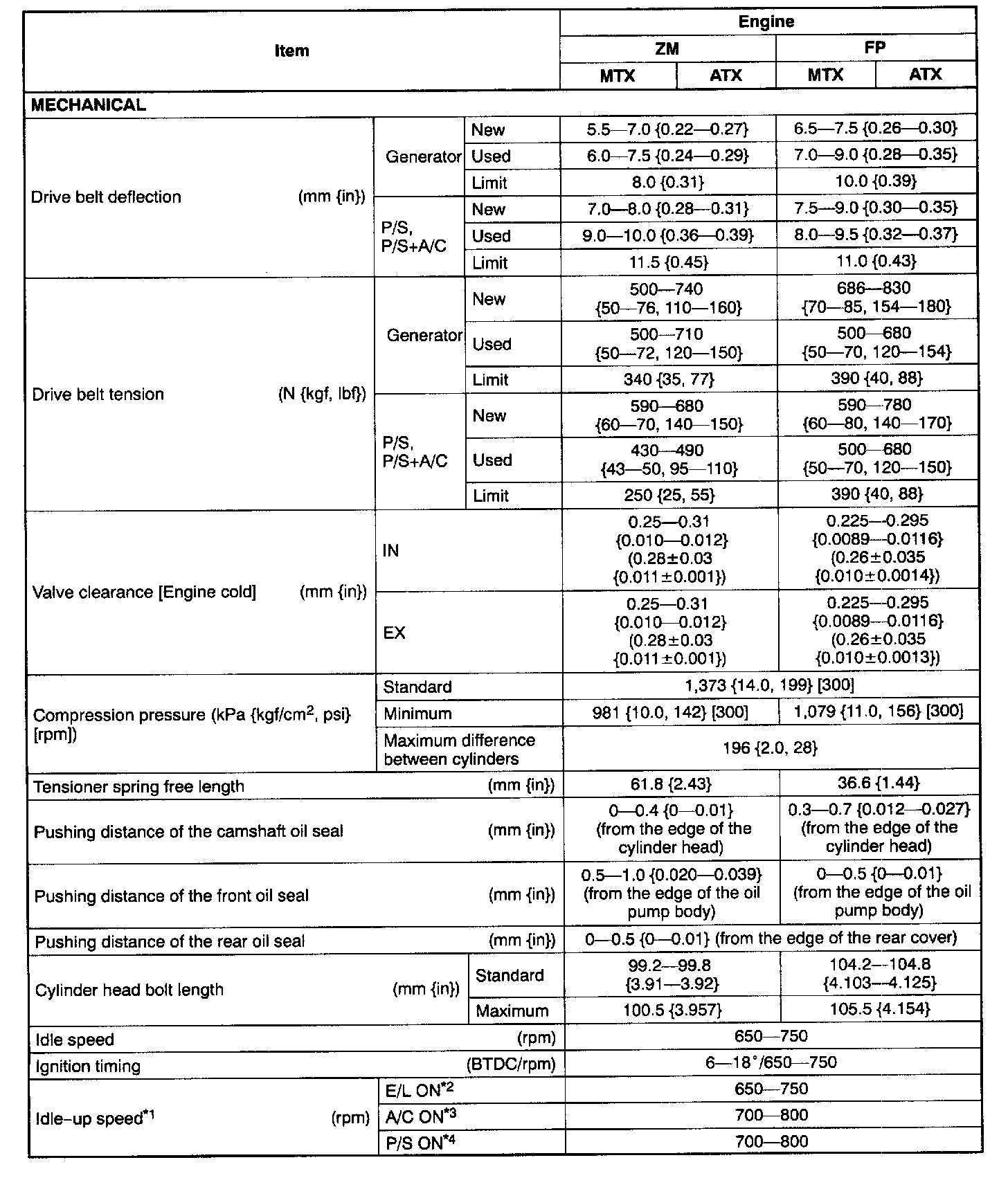

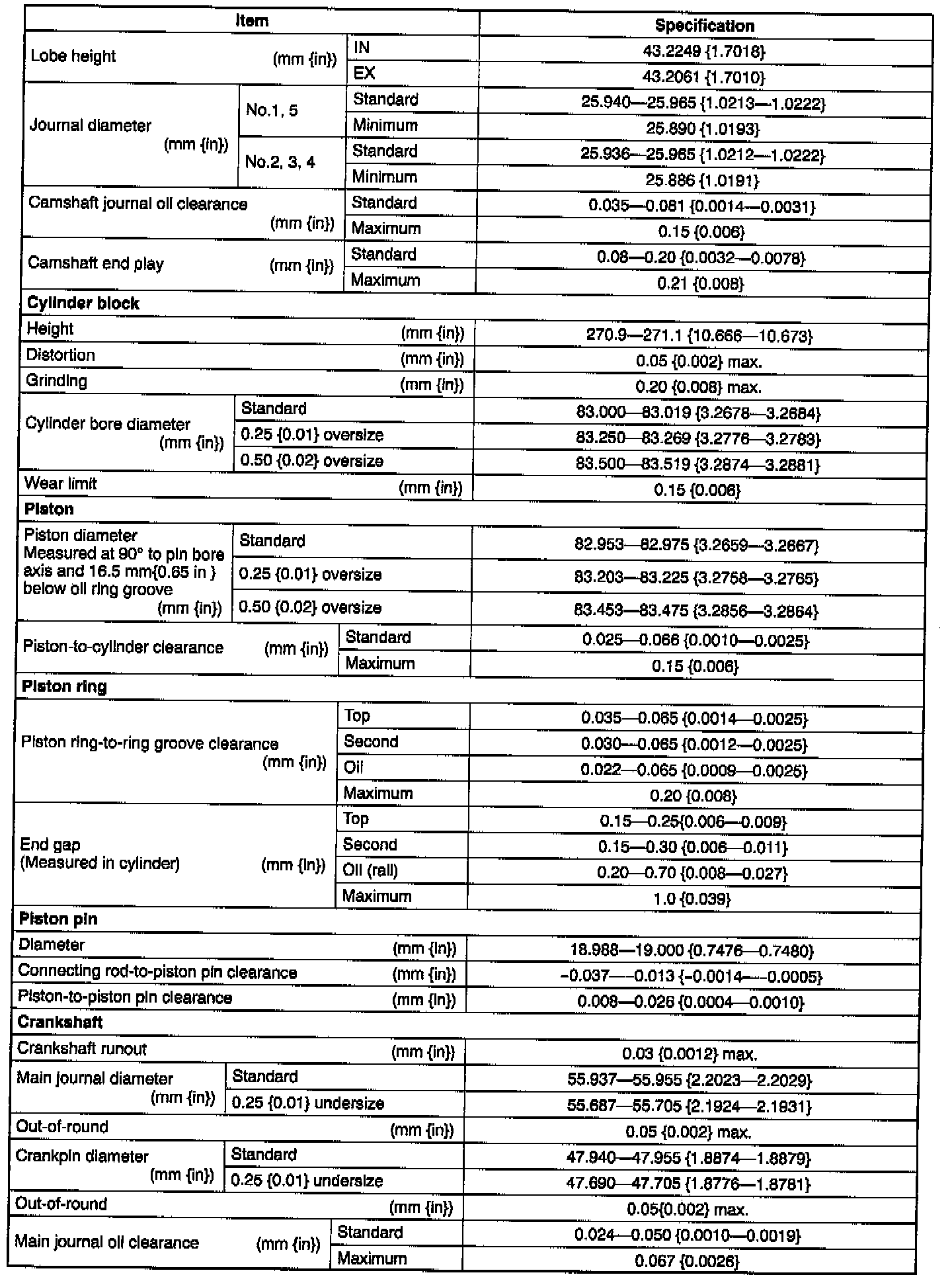

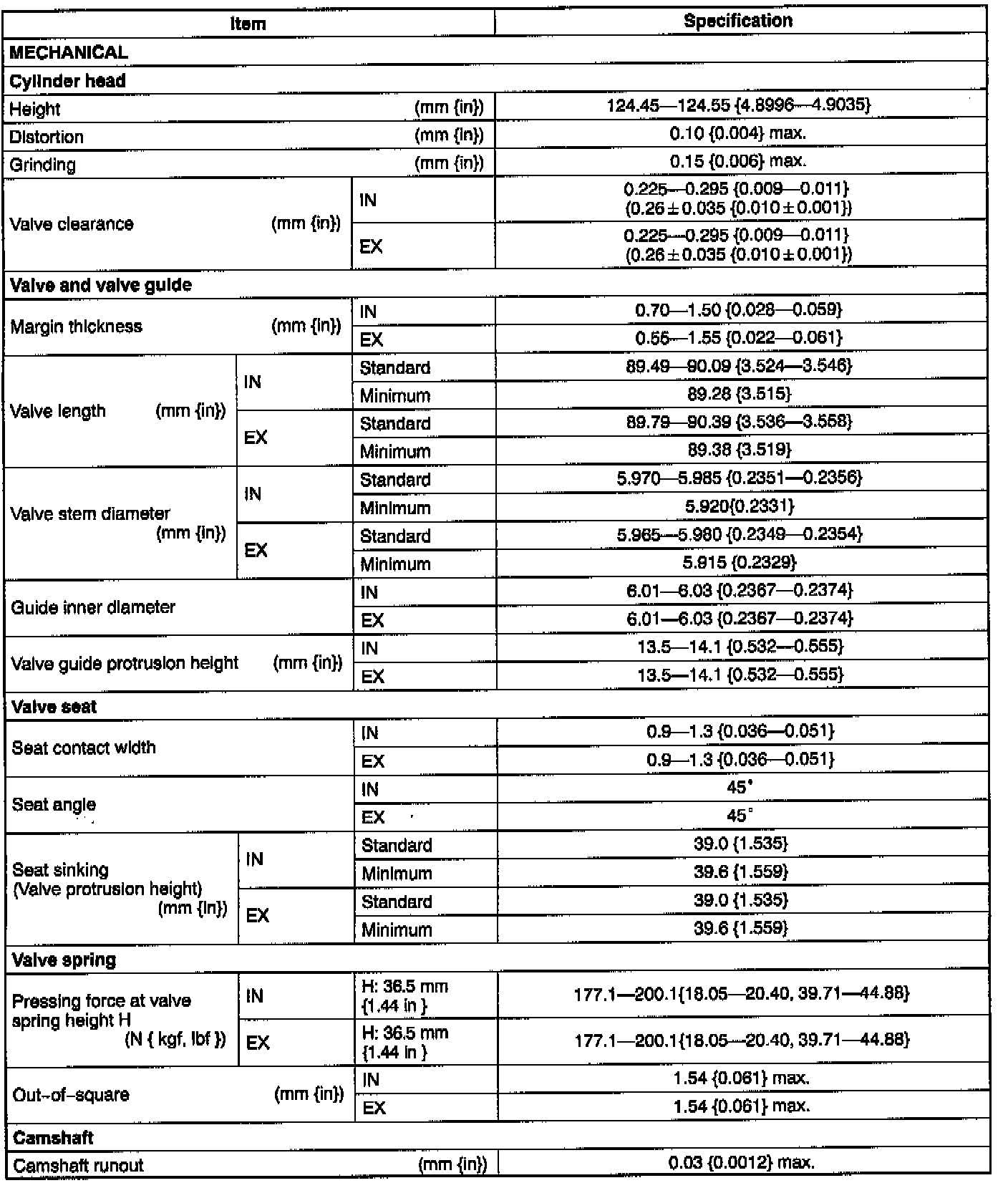

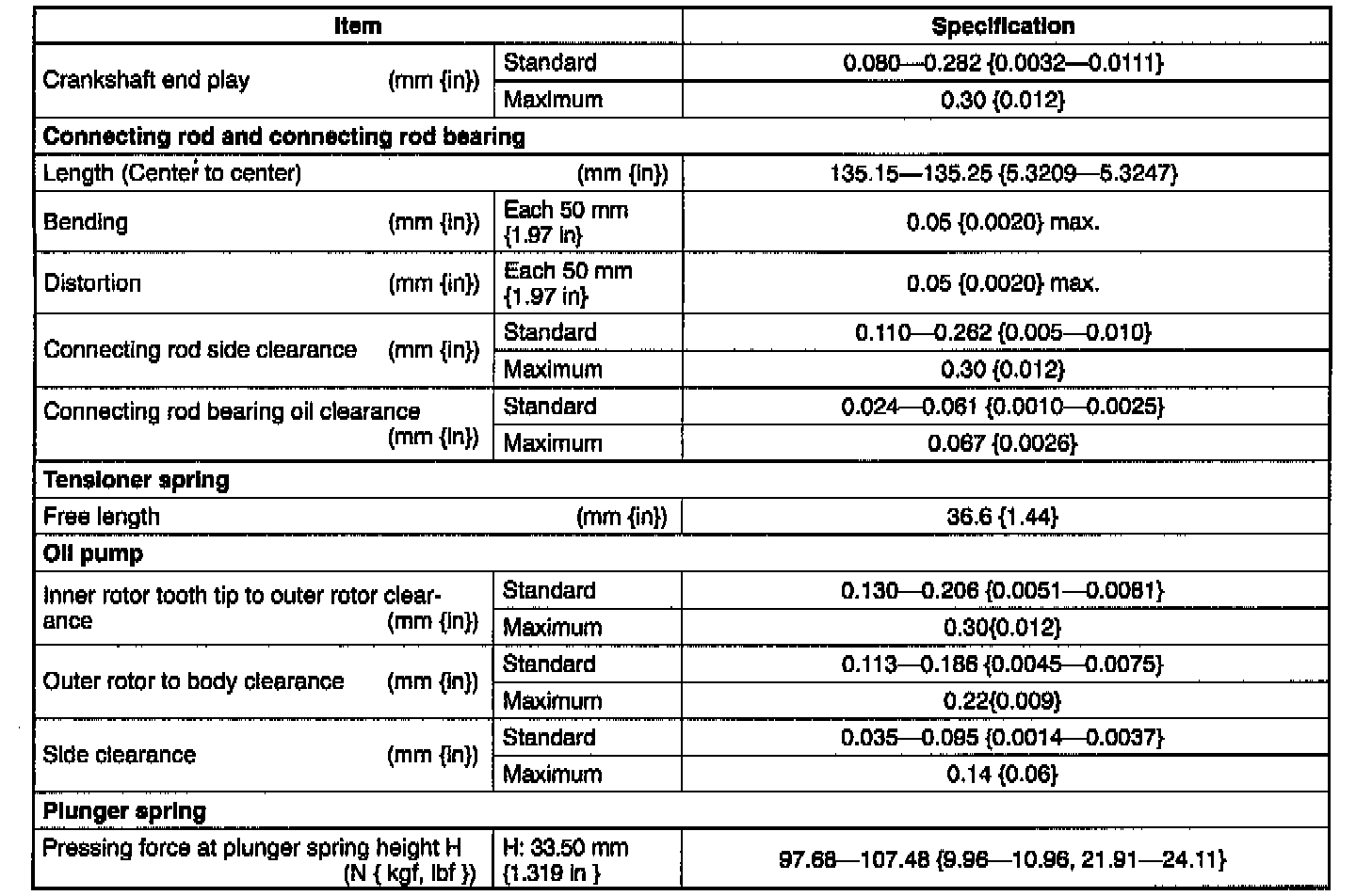

MECHANICAL

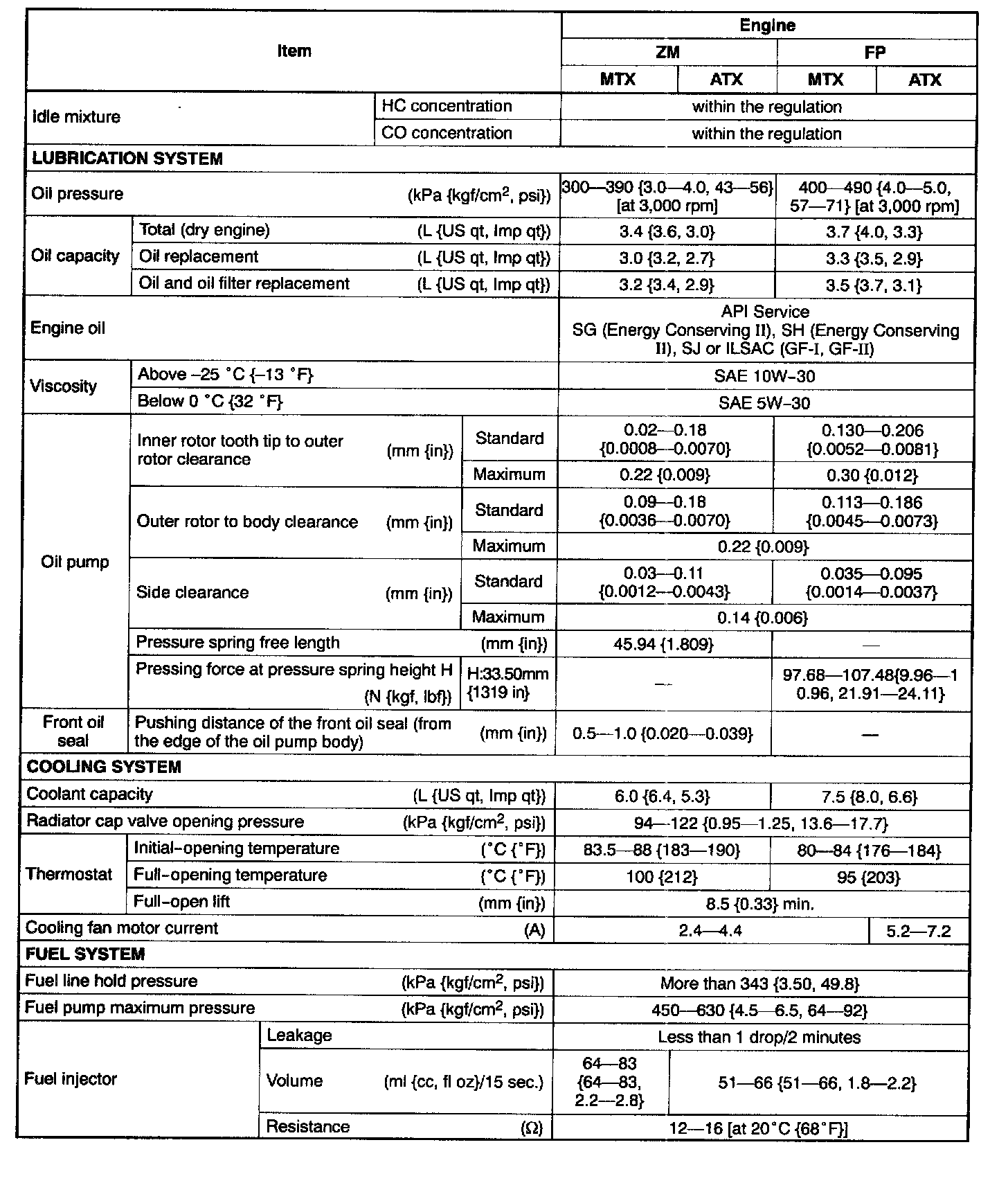

Lubrication System And Cooling System:

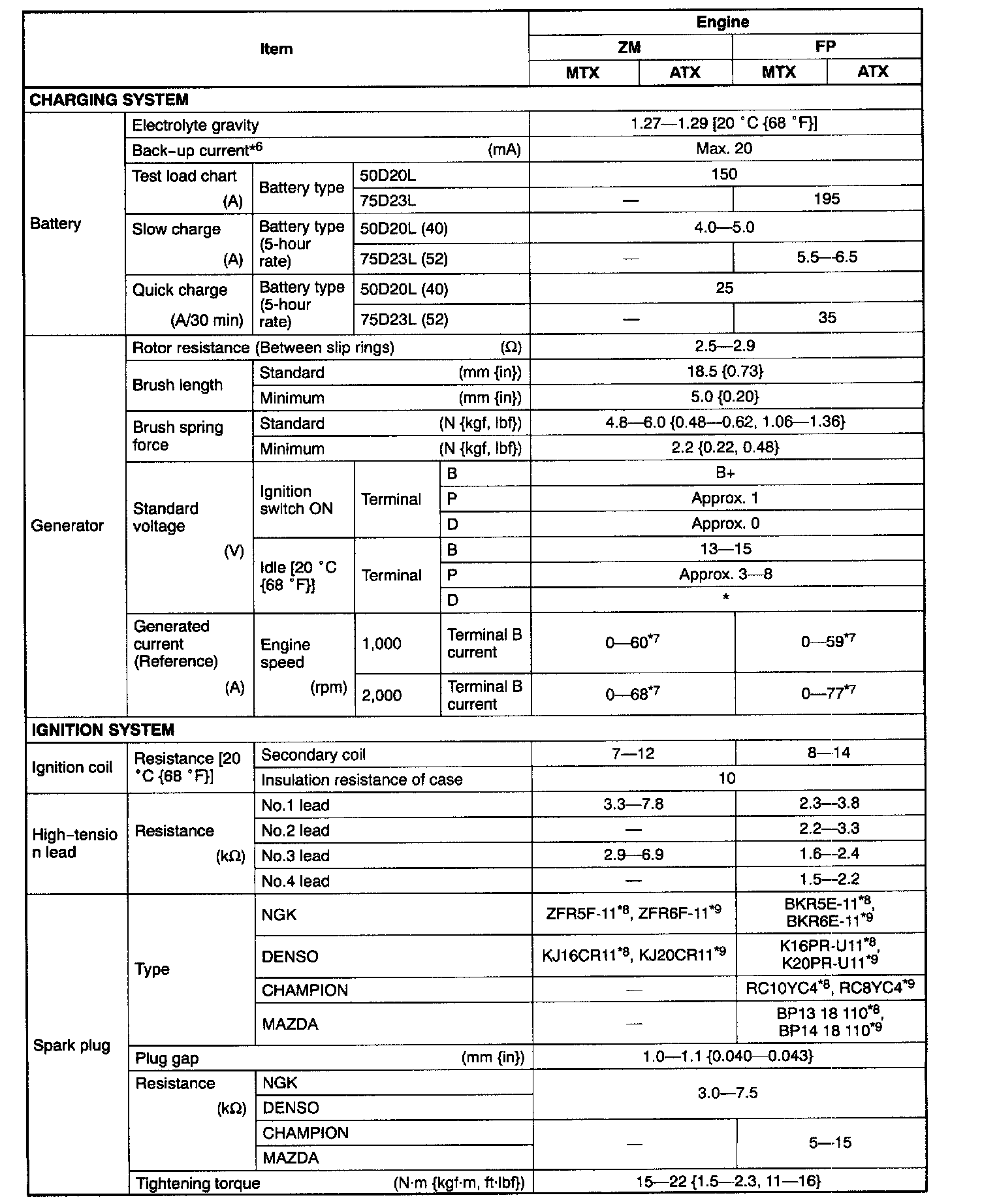

Charging System And Ignition System:

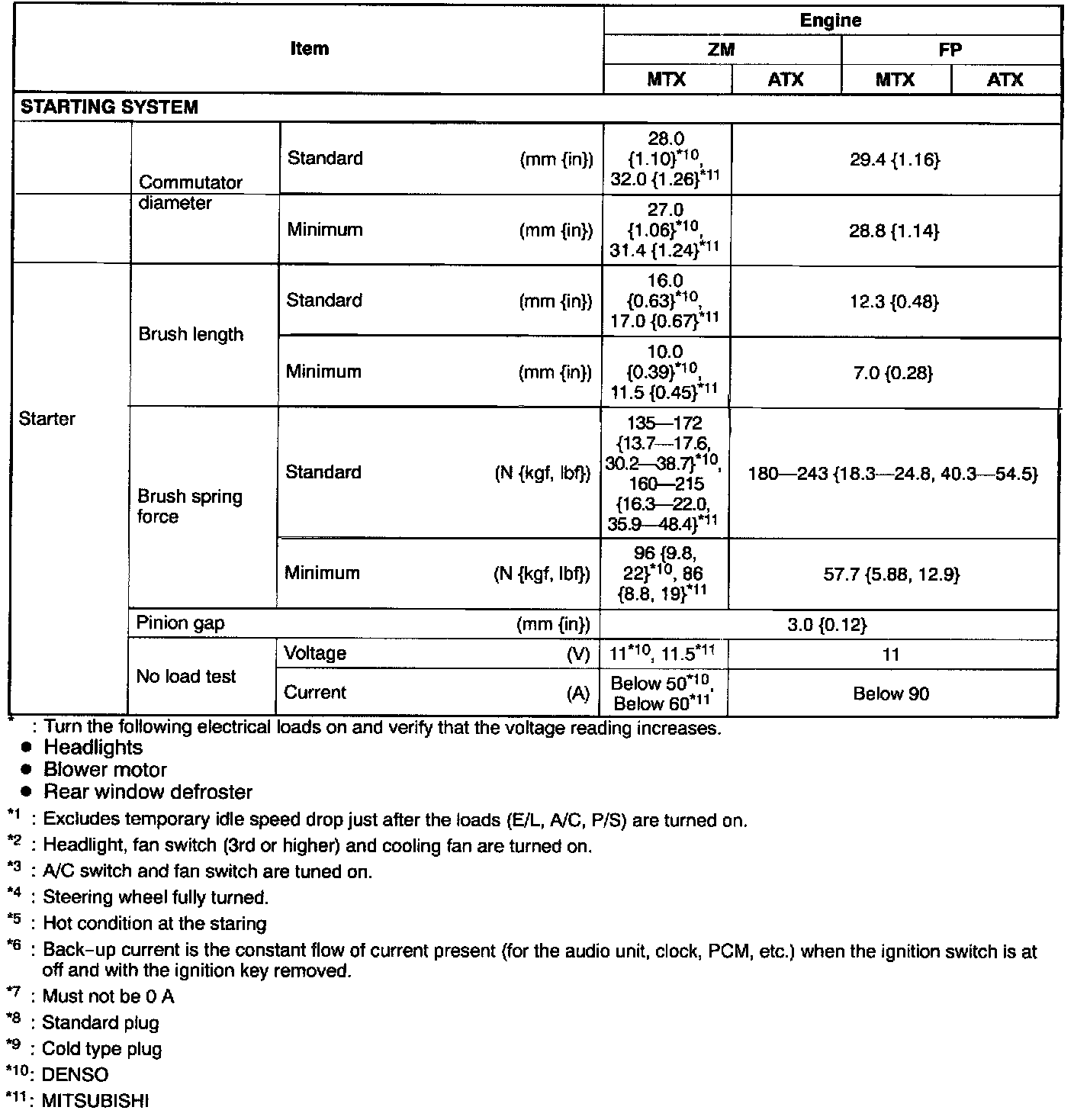

Starting System:
