Home >> Mazda >> 2000 >> Protege DX L4-1.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Service and Repair

Evaporative Emissions System: Service and Repair

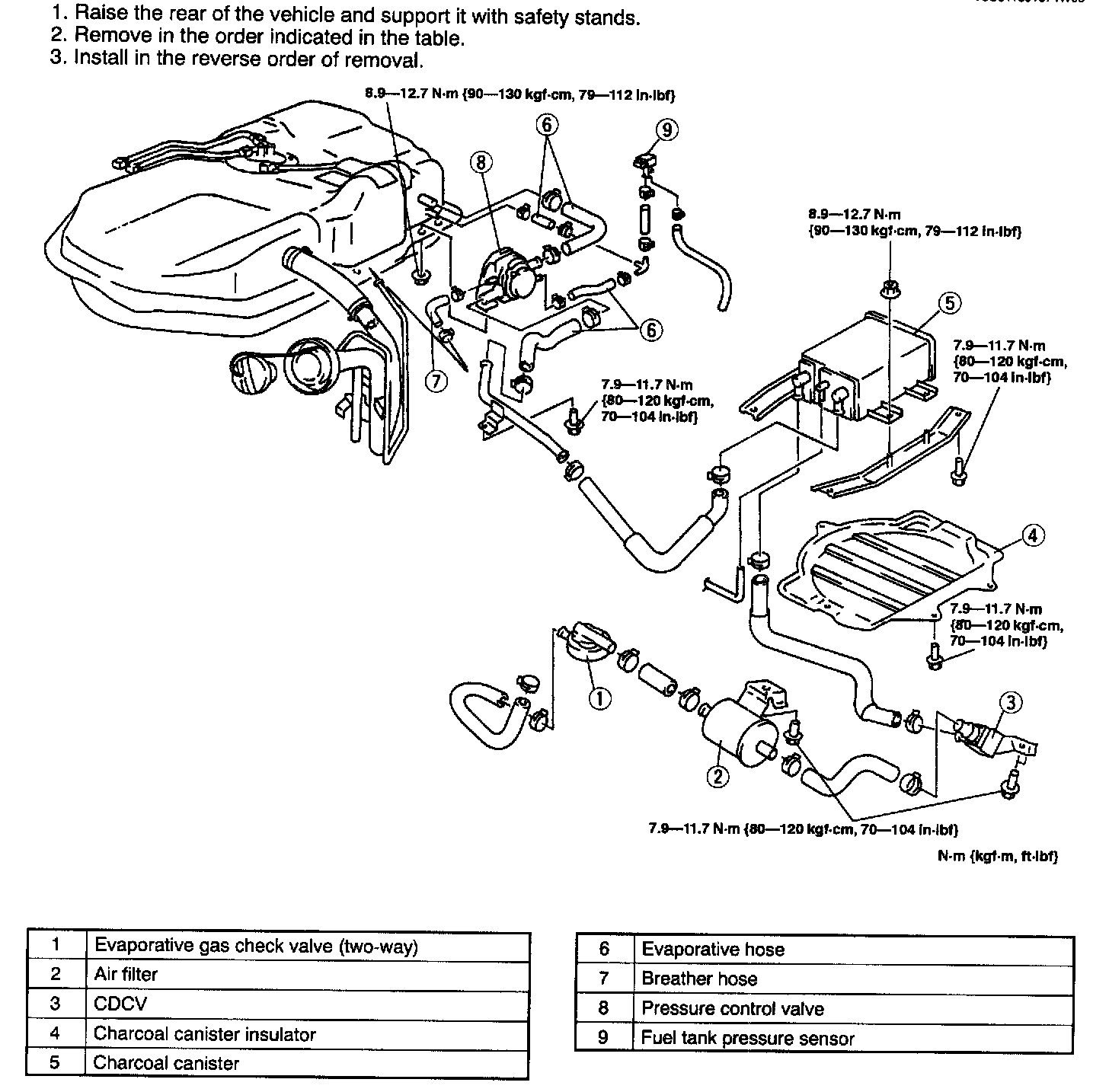

EVAP Control System (Fuel Tank Side) Component Removal/Installation:
