Crankshaft Position Timing Ring: Service and Repair

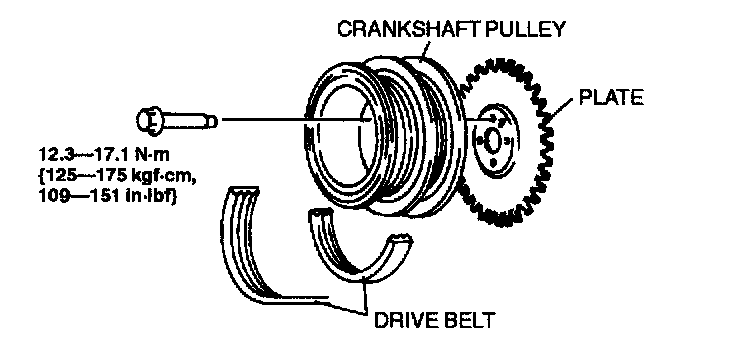

1. Remove the crankshaft pulley.
2. Remove the plate.

NOTE: Adjust the drive belt when installing the drive belt.

3. Install in the reverse order of removal.
