Fluid - M/T: Service and Repair
TRANSAXLE OIL REPLACEMENT1. Remove the drain plug and the washer.
2. Drain the oil into a container.
3. Install a new washer and the drain plug.
Tightening torque
40 - 58 Nm (4.0 - 6.0 kgf.m, 29 - 43 ft. lbs.)

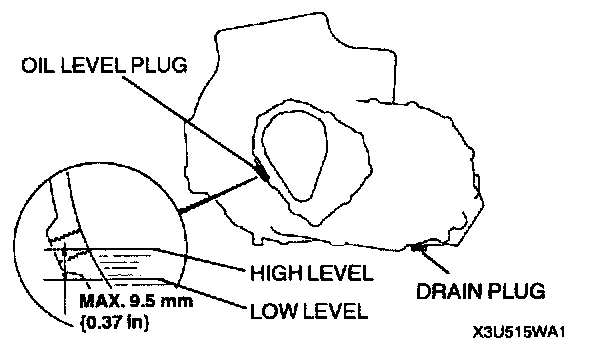

4. Remove the oil level plug and the washer. Add the specified amount and type of oil through the oil level plug hole until the level reaches the bottom of the oil level plug hole.
Specified oil
Grade: API service GL-4 or GL-5
Viscosity: SAE 75W-90 (All season) or SAE 80W - 90 (Above 10° C (50° F))
Capacity
2.68 L (2.83 US qt. 2.36 Imp qt.)
5. Install a new washer and the oil level plug.
Tightening torque
40 - 58 Nm (4.0 - 6.0 kgf.m, 29 - 43 ft. lbs.)
