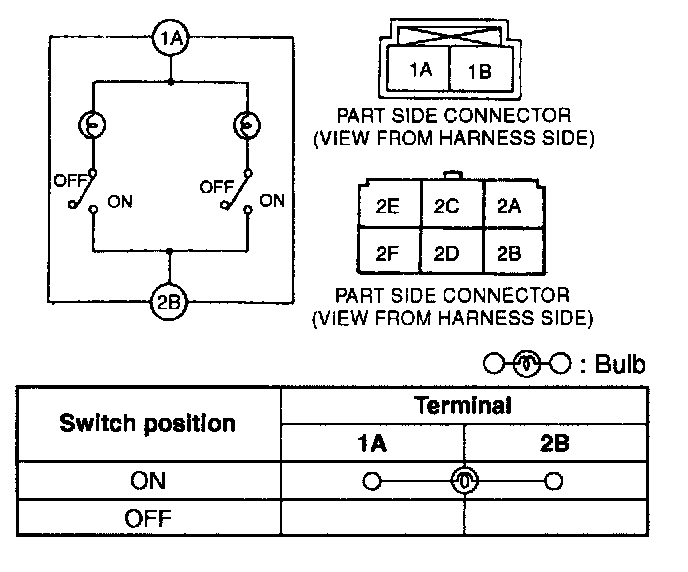

Map Light: Testing and Inspection

1. Remove the map light.




2. Inspect for continuity between the map light terminals using an ohmmeter.
- If not as specified, replace the map light.
