Condenser HVAC: Service and Repair

1. Disconnect the negative battery cable.
2. Evacuate the refrigerant from the system.
3. Remove the fresh-air duct, radiator bracket, air cleaner, resonance chamber, and mass airflow sensor connector.

CAUTION: If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

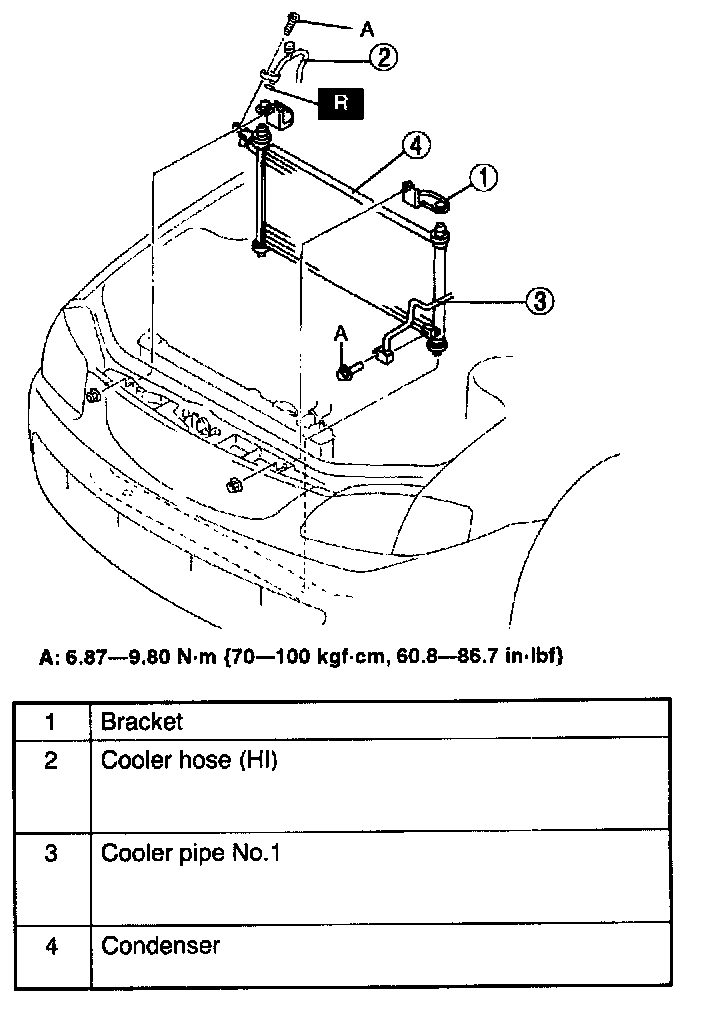

4. Remove in the order indicated in the table. Do not allow compressor oil to spill.
5. Install in the reverse order of removal.
6. Perform the refrigerant system performance test.

Condenser Installation Note
When installing a new condenser, add a supplemental amount of ATMOS GU10 compressor oil into the refrigeration cycle.

Supplemental amount: 30 ml {30 cc, 1.0 fl oz}
