Blower Motor Relay: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the passenger-side side panel.
3.

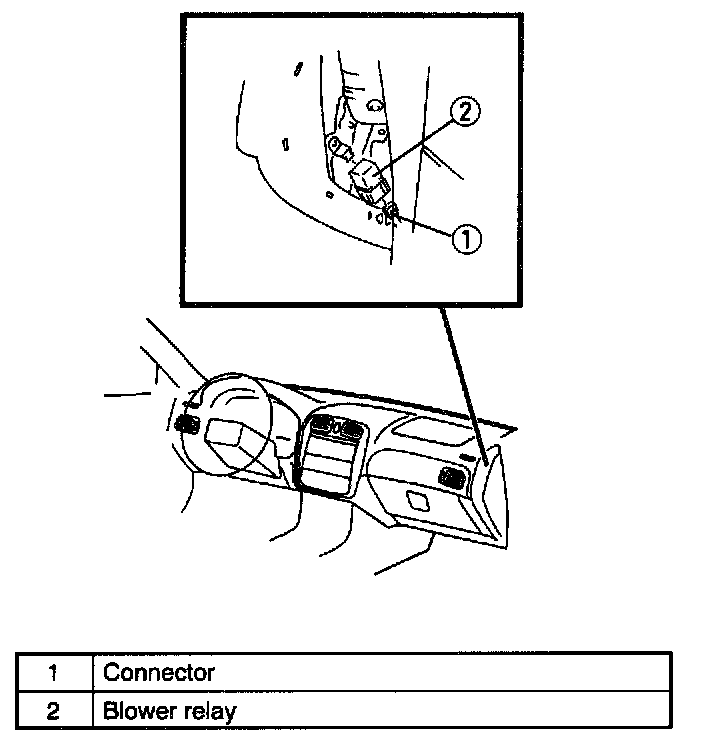

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
