Air Register: Service and Repair

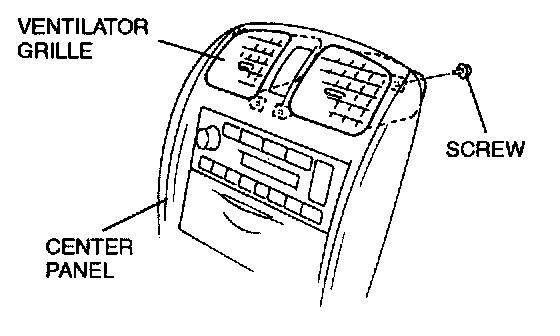

Center Side
1. Remove the center panel.




2. Remove the screws from behind the center panel.
3. Install in the reverse order of removal.

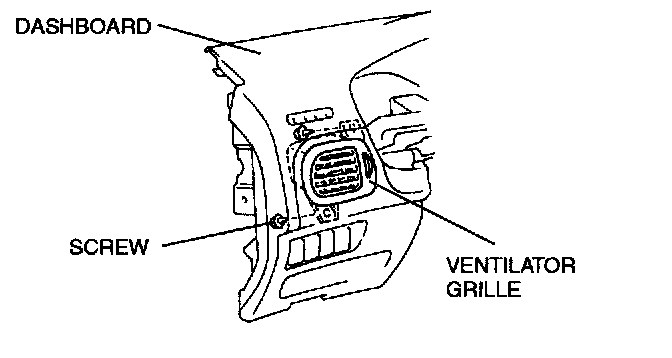

Driver's side
1. Remove the dashboard.




2. Remove the screws from behind the dashboard.
3. Install in the reverse order of removal.

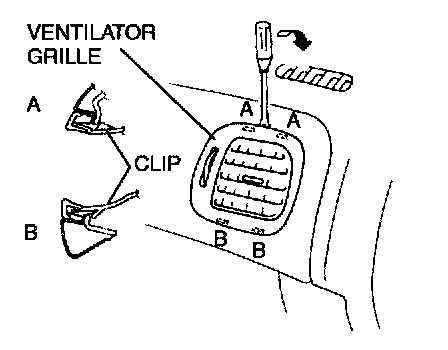

Passenger's side




1. Disengage clips A and B using a fastener remover as shown in the figure.
2. Install in the reverse order of removal.
