Rear Cross-Member: Service and Repair

REAR CROSSMEMBER REMOVALS INSTALLATION
1. Remove the rear stabilizer.
2. Remove the front and rear lateral links.

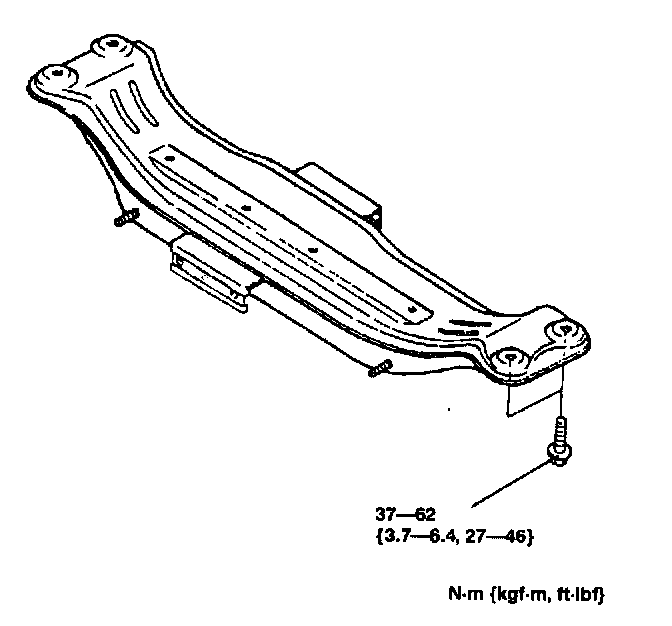

3. Remove the rear crossmember.





4. Install in the reverse order of removal.
5. Inspect the rear wheel alignment and adjust it as necessary.
