No.23-Transaxle Overheats
No.23-Transaxle Overheats

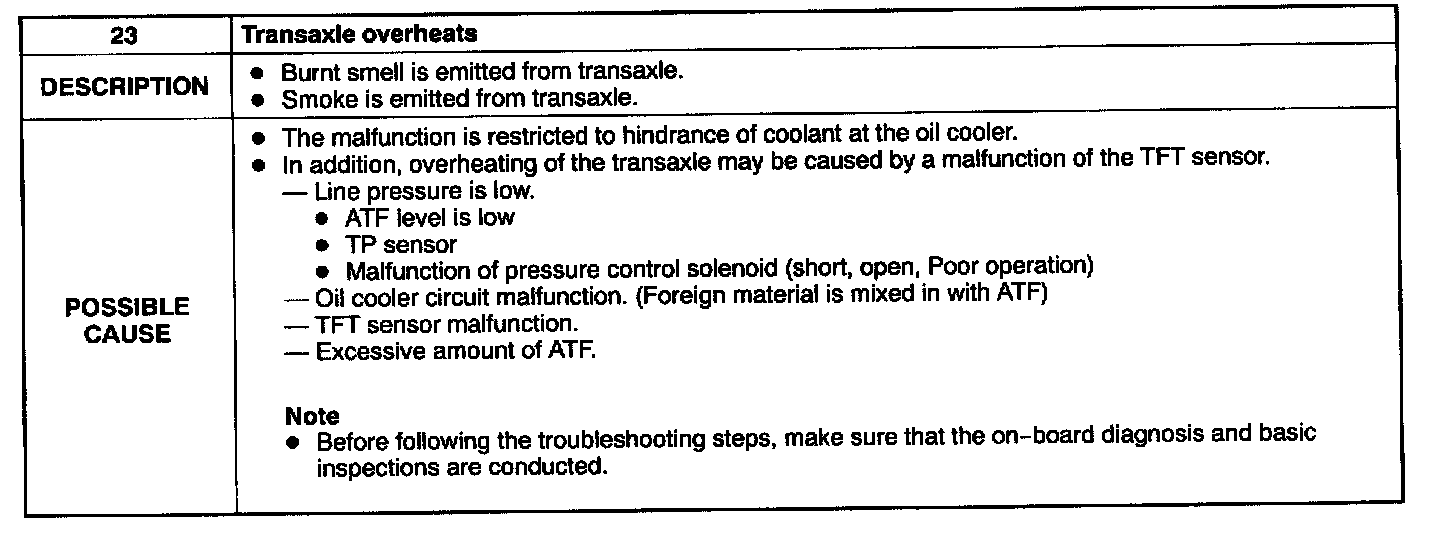

NO. 23 TRANSAXLE OVERHEATS [LJ4A-EL]

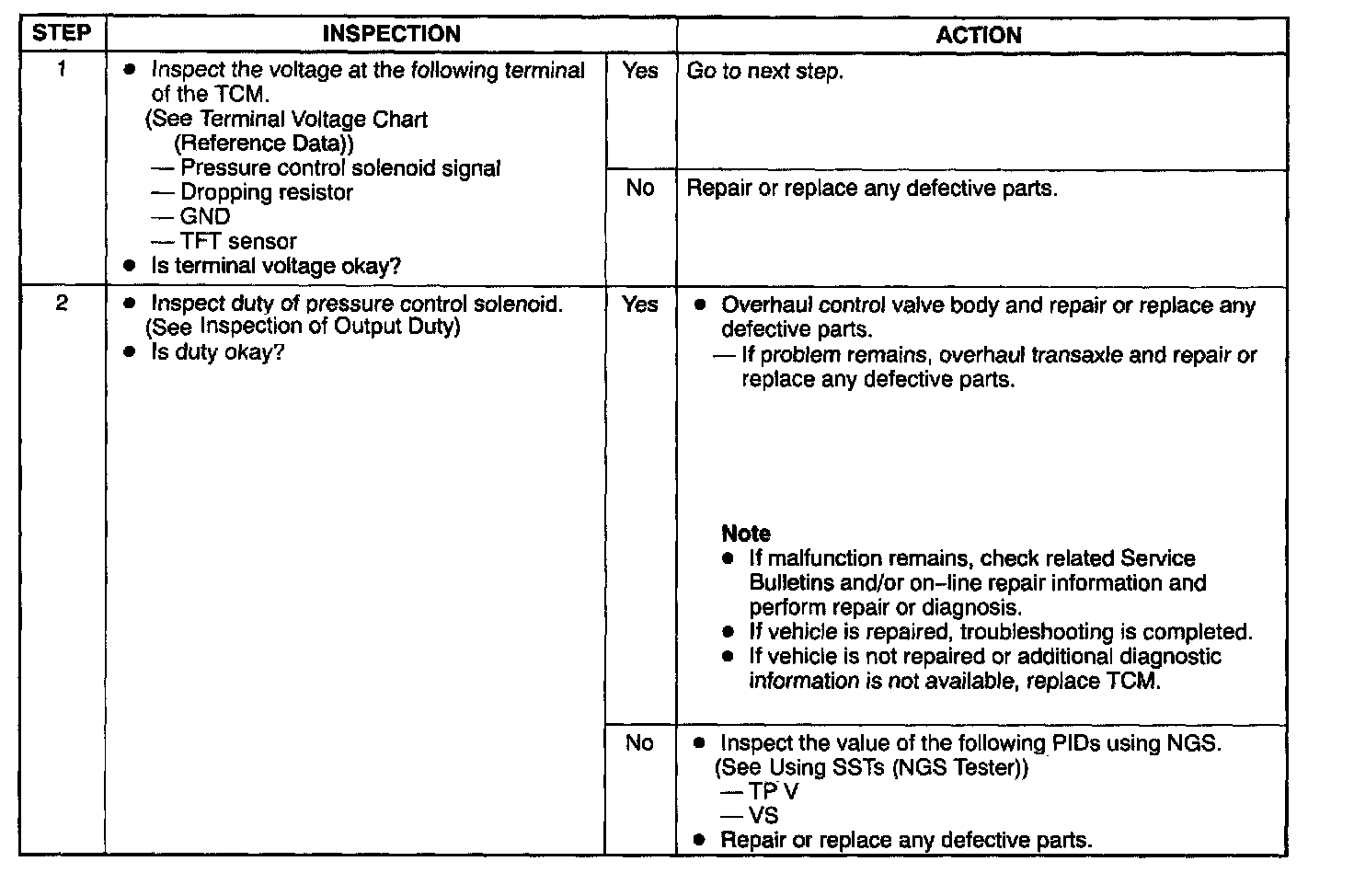

Diagnosis Procedure
Step 1 - 2
