Home >> Mazda >> 2000 >> Millennium Edition V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Troubleshooting >> No.18-Excessive Shift Shock When Upshifting and Downshifting

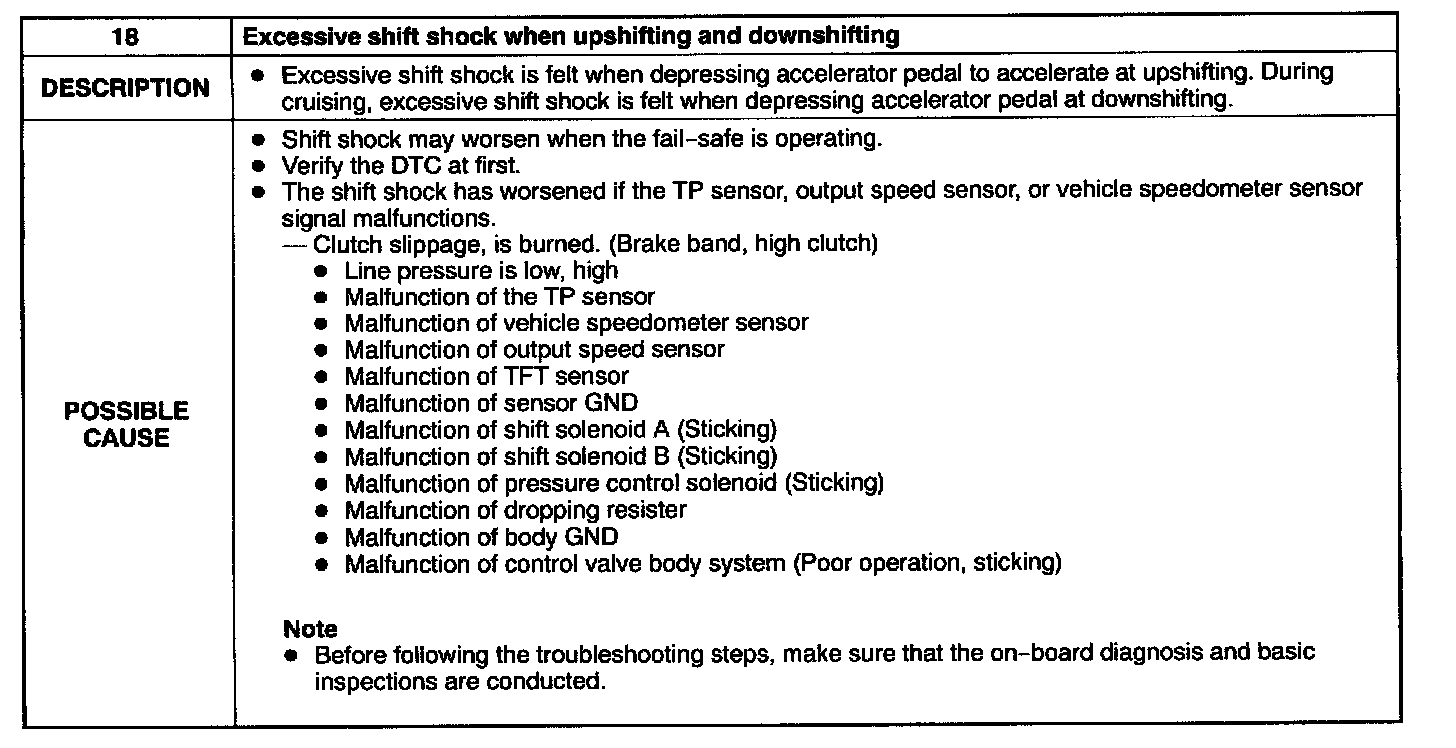

No.18-Excessive Shift Shock When Upshifting and Downshifting

NO. 18 EXCESSIVE SHIFT SHOCK WHEN UPSHIFTING AND DOWNSHIFTING [LJ4A-EL]

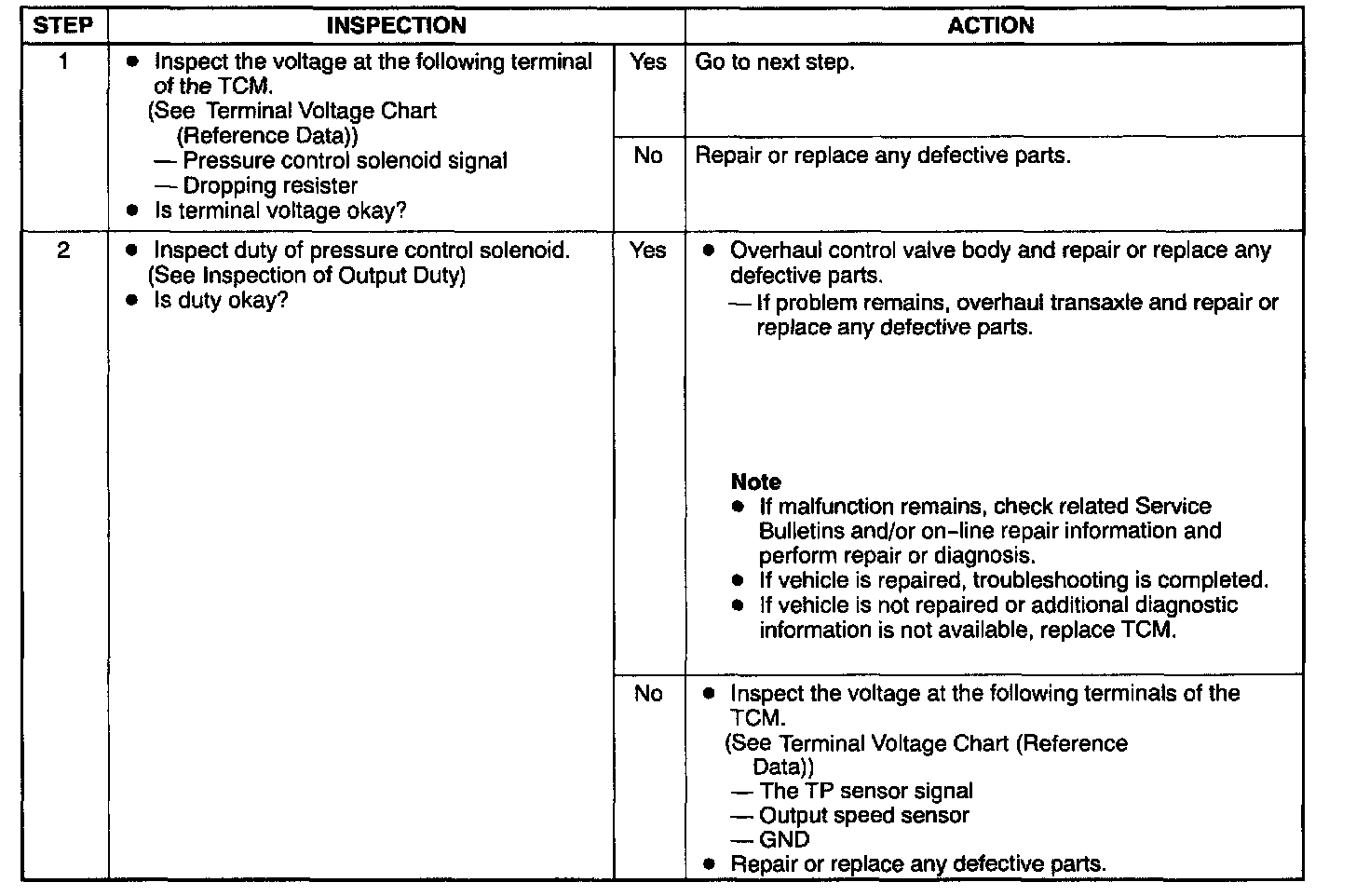

Diagnosis Procedure

Step 1 - 2
