No.16-Judder Upon Torque Converter Clutch (TCC) Operation

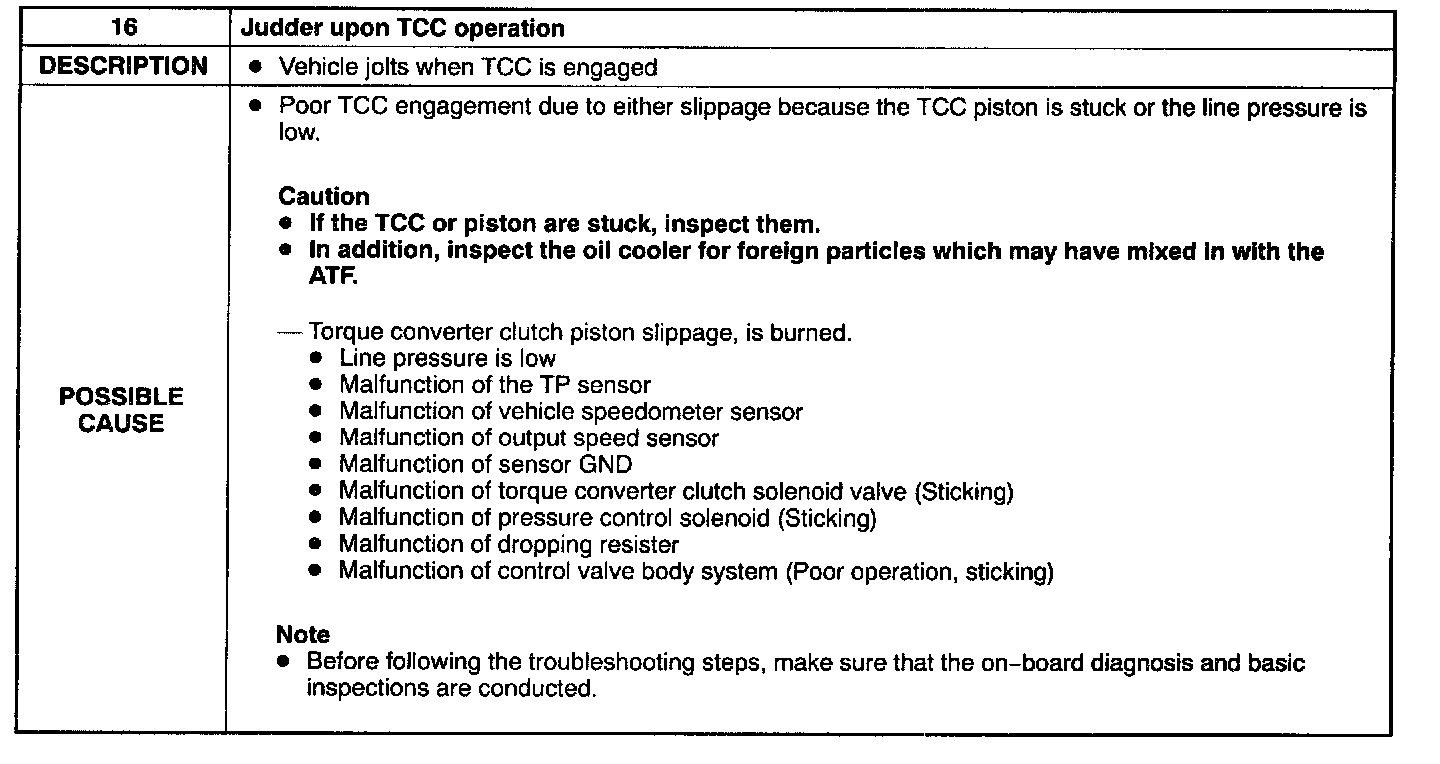

NO. 16 JUDDER UPON TCC OPERATION [LJ4A-EL]

Diagnosis Procedure

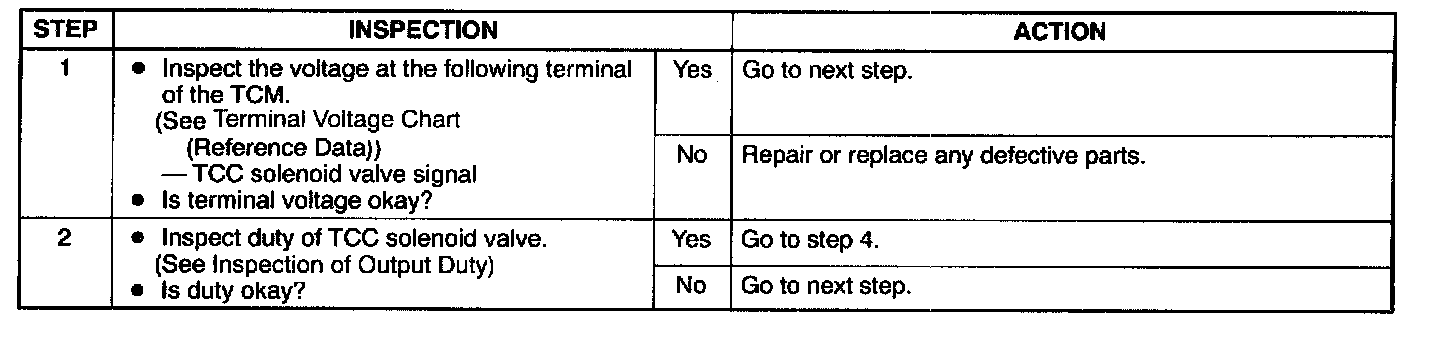

Step 1 - 2

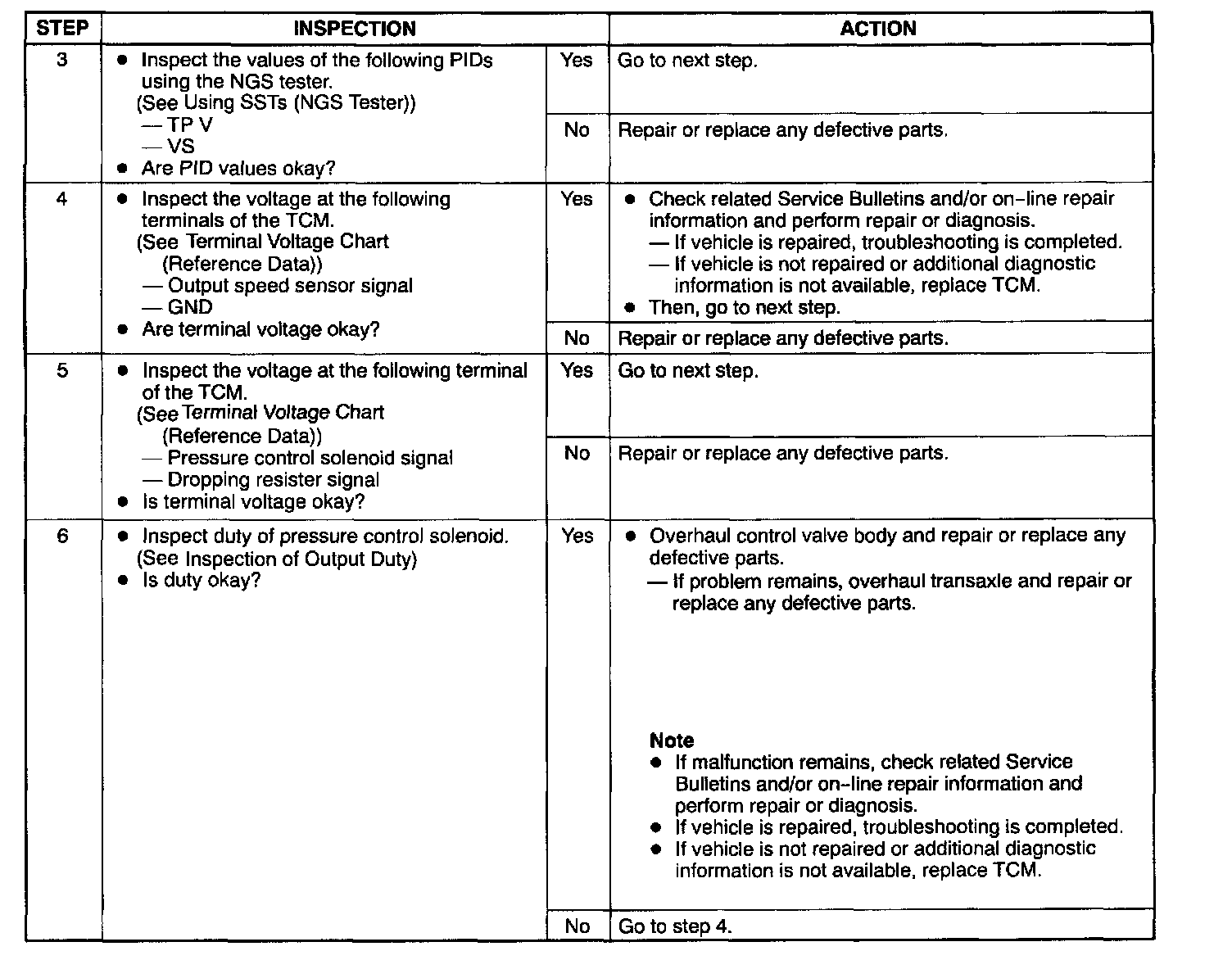

Step 3 - 6
